1991-2021 Polaris Sportsman 60 Inch Eagle Straight Blade Snow Plow Kit

Part #

or-1835

1991-2021 Polaris Sportsman 60 Inch Eagle Straight Blade Snow Plow Kit

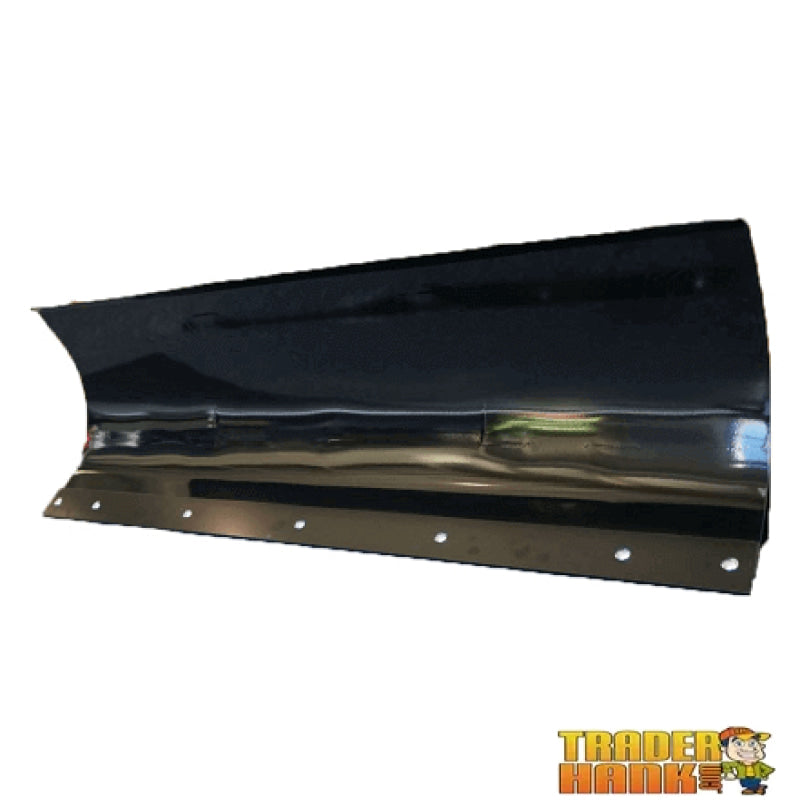

Straight Blade Features:

  • 60 inches wide and 15.75 inches tall for angled cut width of 52.5 inches
  • Tough, heavy duty wear bar is reversible and replaceable
  • Manually adjusts to 5 blade positions side to side
  • Adjustable, bolt-on blade stops offer 4 blade pitch positions
  • Use the adjustable skid shoes with spacers to protect the blade and surface
  • Blade mounts to the push tube swivel with 1/2” bolts
  • Comes with trip springs and eye bolts for added blade plowing protection

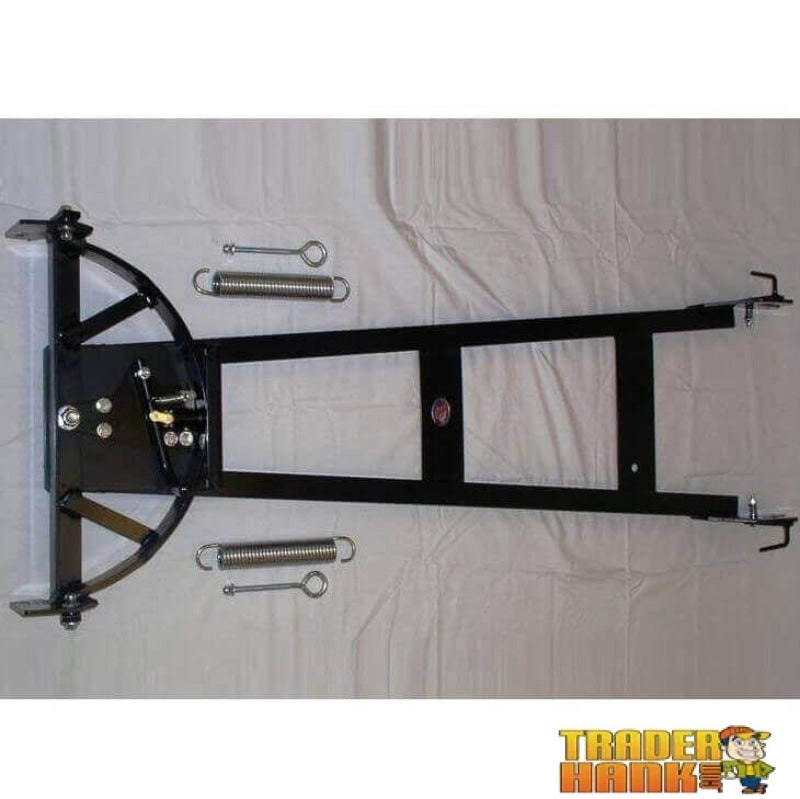

Push Tube Features:

  • Manufactured from 1-1/2” high strength square tubing
  • Attaches in seconds with the Quick-Latch brackets and locks in place
  • V-shaped design and cross bars for increased stability
  • Swivel adjust to 5 positions offering 30° of rotation to each side
  • Swivel rotates on a heavy duty 5/8” bolt mounted to 1/4” solid steel
  • Powder coated jet black

Universal Push Tube Mount Features:

  • Offers pins for instant engaging and disengaging of plow system with the Quick-Latch Brackets
  • Made from 10-gauge steel and attaches with provided grade 5 carriage bolts
  • Removable after the season and replaceable
  • Powder coated jet black

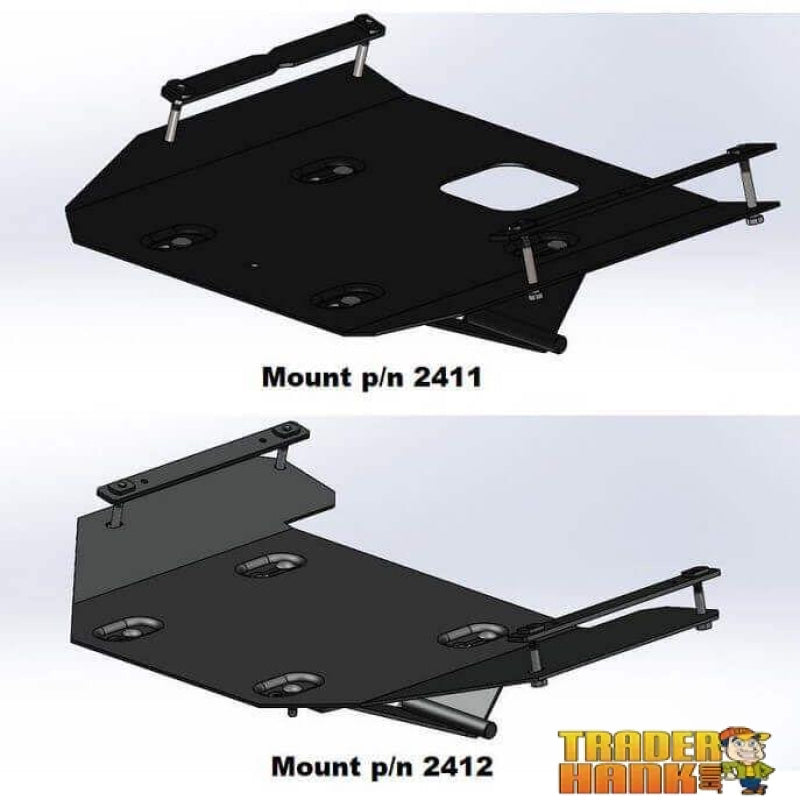

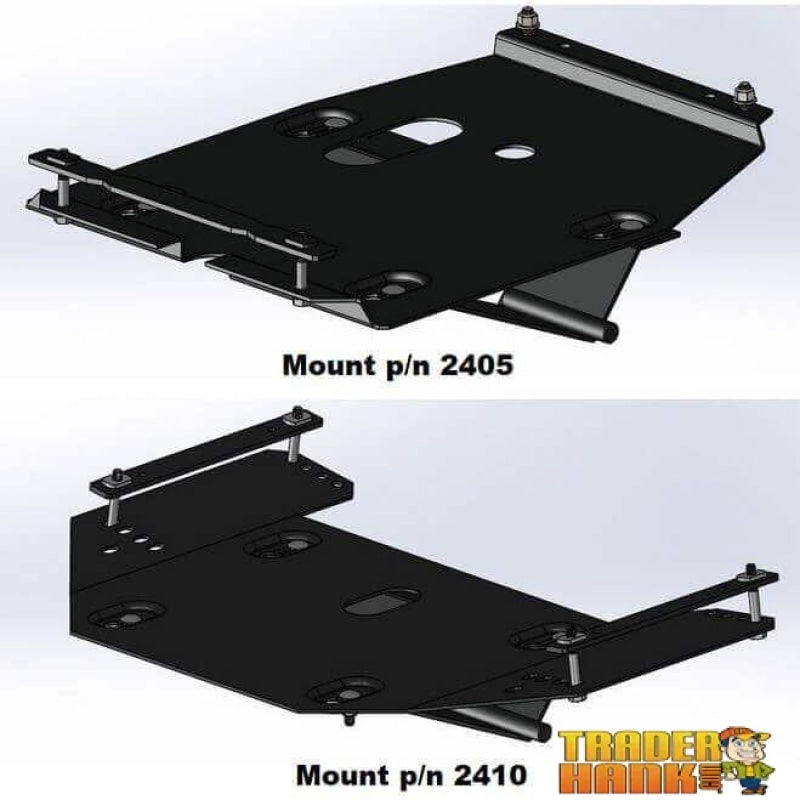

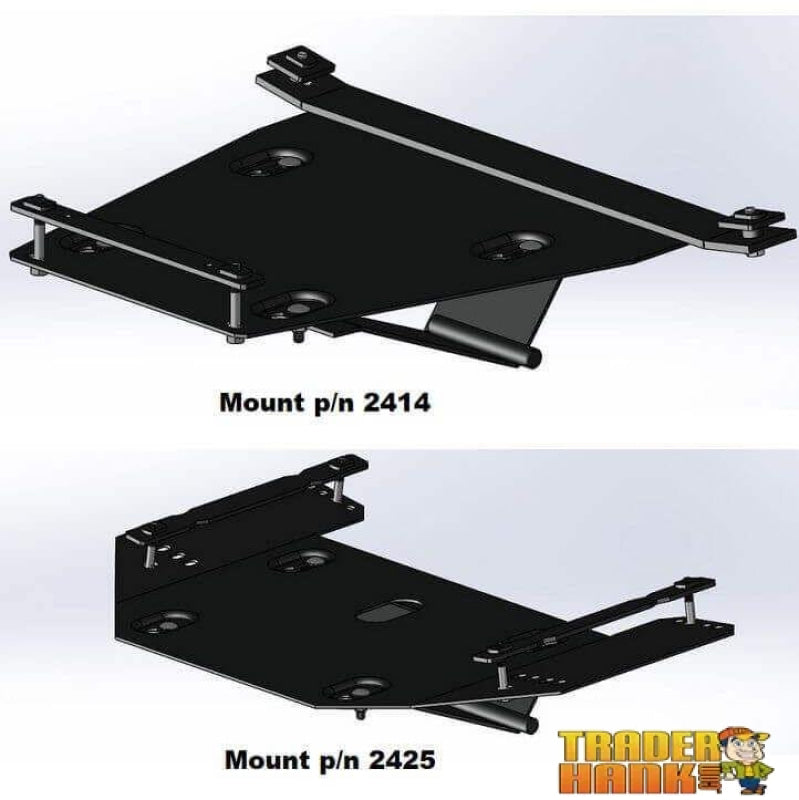

Plow Mount Features:

  • Mid mount
  • Can stay on year-round and acts as a steel, skid plate
  • Won’t affect oil changing or ground clearance
  • Made from 11-gauge steel and attaches with provided hardware
  • Powder coated jet black

Kit Includes:

  • Blade
  • Push tube
  • Universal push tube mount
  • Model specific plow mount

NOTE: Must have a winch to use plow system.

1991-2021 Polaris Sportsman 60 Inch Eagle Straight Blade Snow Plow Kit

Fitment Details

Updated 07-01-2021 @ 5:07 AM MST

  • Applicability:
  • 1991-06 Sportsman 6X6 (p/n: 2450)
    1992 Sportsman 500 6X6 (p/n: 2410)
    1993-95 Sportsman (p/n: 2450)
    1996-97 Sportsman 500 (p/n: 2410)
    1998-13 Sportsman 500 (p/n: 2405)
    2001-07 Sportsman 400 (p/n: 2405)
    2002-07 Sportsman 600 (p/n: 2410)
    2002-08 Sportsman 700 (p/n: 2410)
    2005-06 Sportsman 450 (p/n: 2405)
    2005-10 Sportsman 800 (p/n: 2410)
    2006 Sportsman 500 X2 (p/n: 2425)
    2007 Sportsman 800 X2 (p/n: 2412)
    2007-08 Sportsman 500 X2 (p/n: 2412)
    2008 Sportsman 700 X2 (p/n: 2412)
    2008-09 Sportsman 500 Touring (p/n: 2410)
    2008-09 Sportsman 800 Touring (p/n: 2410)
    2008-10 Sportsman 400 (p/n: 2425)
    2008-10 Sportsman 300 (p/n: 2425)
    2009 Sportsman X2 800 (p/n: 2410)
    2009 Sportsman 500 X2 (p/n: 2410)
    2009-14 Sportsman 550 (p/n: 2414)
    2009-18 Sportsman 850 (p/n: 2414)
    2010-11 Sportsman 850 X2 (p/n: 2414)
    2010-14 Sportsman 550 Touring (p/n: 2414)
    2010-14 Sportsman 550 X2 (p/n: 2414)
    2010-14 Sportsman 850 Touring (p/n: 2414)
    2011-14 Sportsman 400 (p/n: 2405)
    2011-14 Sportsman 800 (p/n: 2405)
    2012 Sportsman 500 Touring (p/n: 2405)
    2012 Sportsman 800 Big Boss 6X6 (p/n: 2405)
    2014-18 Sportsman 570 Touring (p/n: 2411)
    2014-19 Sportsman 570 (p/n: 2411)
    2015-18 Sportsman 570 X2 (p/n: 2411)
    2015-18 Sportsman 1000 XP Touring (p/n: 2414)
    2015-19 Sportsman 570 SP (p/n: 2411)
    2015-19 Sportsman 850 Touring (SP) (p/n: 2414)
    2016-19 Sportsman 450 / H.O. (p/n: 2411)
    2016-19 Sportsman 850 High Lifter (p/n: 2414)
    2018 Sportsman 570 6x6 (p/n: 2411)
    2019 Sportsman 850 / SP (p/n: 2414)
    2020 Sportsman 850 (p/n: 2414)
