Description
1996-2017 Arctic Cat ATV 60 Inch Eagle Country Blade Snow Plow Kit

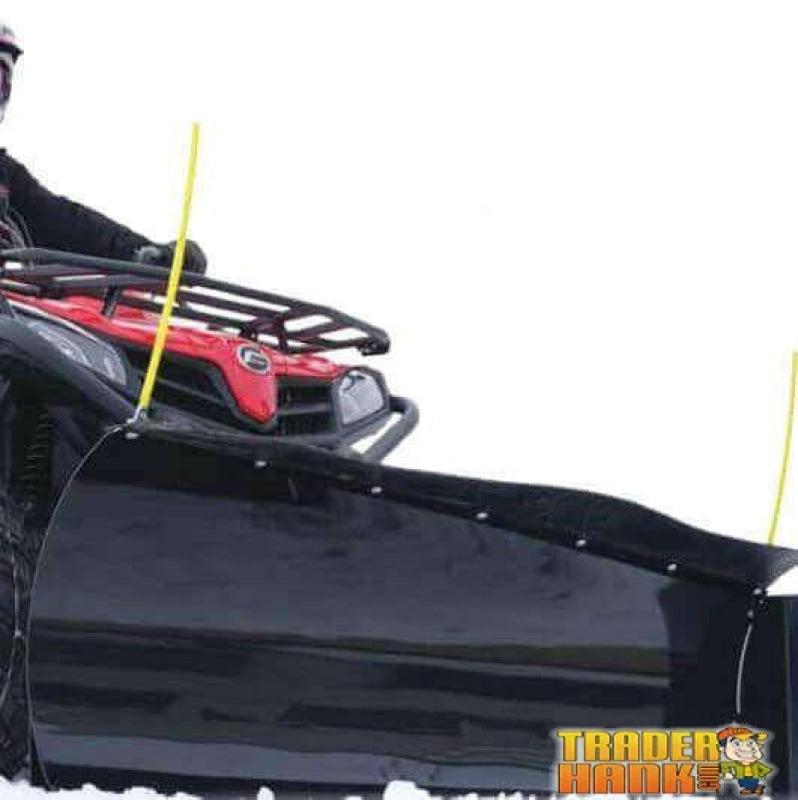

Country Blade Features:
- 60 inches wide and 17-21.75 inches tall for angled cut width of 52.5 inches
- Slanted design is best used for high capacity plowing
- Tough, heavy duty wear bar is reversible and replaceable
- Manually adjusts to 5 blade positions side to side
- Adjustable, bolt-on blade stops offer 4 blade pitch positions
- Includes ubber flap and plow markers
- Adjustable skid shoes with spacers allow for smooth surface contact
- Blade mounts to the push tube swivel with 1/2” bolts
- Comes with trip springs and eye bolts for added blade plowing protection

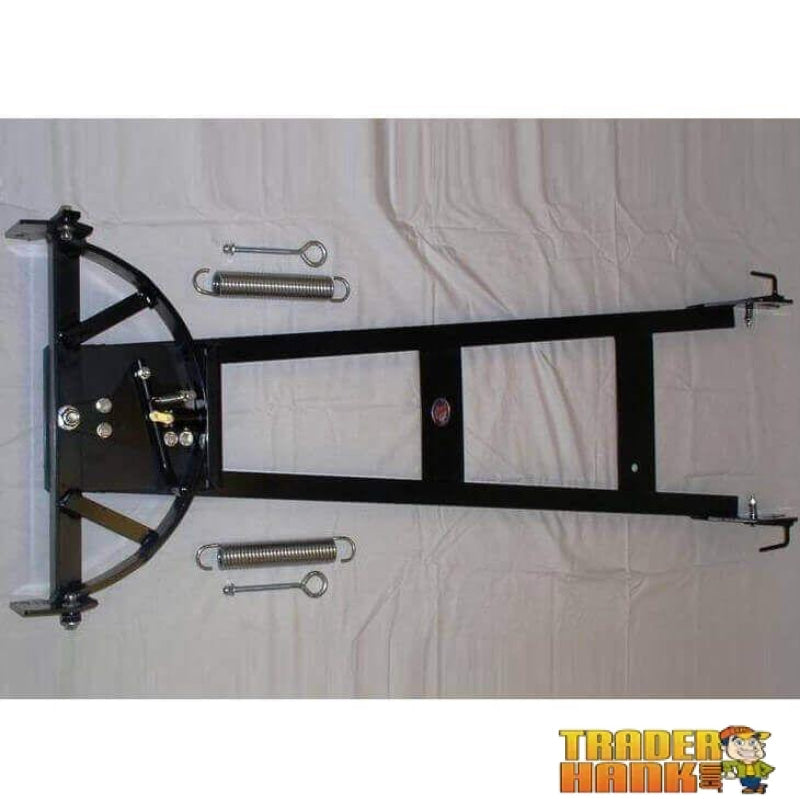

Push Tube Features:
- Manufactured from 1-1/2” high strength square tubing
- Attaches in seconds with the Quick-Latch brackets and locks in place
- V-shaped design and cross bars for increased stability
- Swivel adjust to 5 positions offering 30° of rotation to each side
- Swivel rotates on a heavy duty 5/8” bolt mounted to 1/4” solid steel
- Powder coated jet black
Universal Push Tube Mount Features:
- Offers pins for instant engaging and disengaging of plow system with the Quick-Latch Brackets
- Made from 10-gauge steel and attaches with provided grade 5 carriage bolts
- Removable after the season and replaceable
- Powder coated jet black

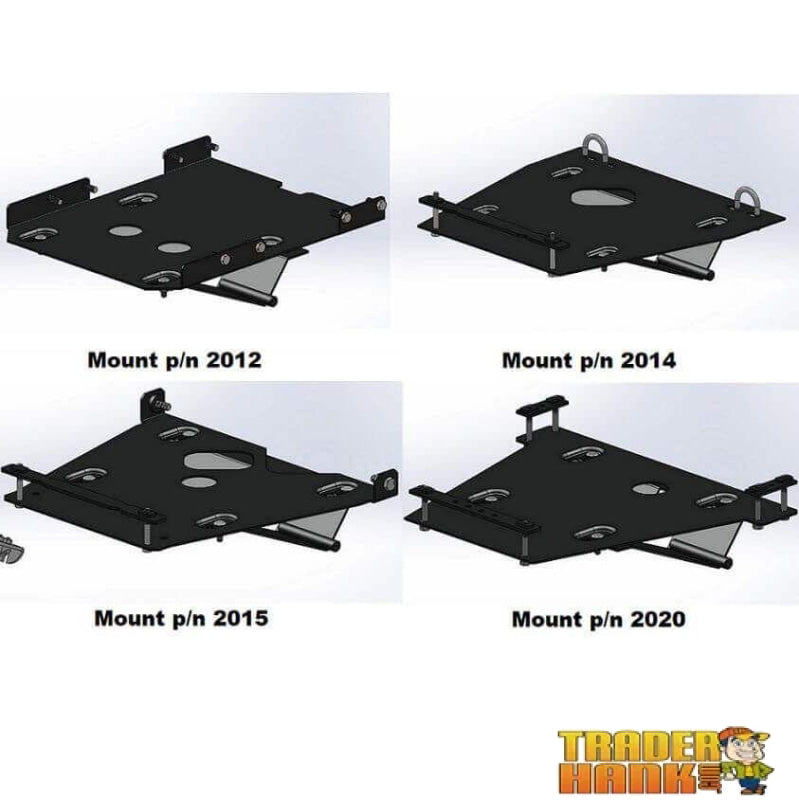

Plow Mount Features:
- Mid mount
- Can stay on year-round and acts as a steel, skid plate
- Won’t affect oil changing or ground clearance
- Made from 11-gauge steel and attaches with provided hardware
- Powder coated jet black
KIT INCLUDES:
- Blade
- Push tube
- Universal push tube mount
- Model specific plow mount
NOTE: Must have a winch to use plow system.
1996-2017 Arctic Cat ATV 60 Inch Eagle Country Blade Snow Plow Kit
Fitment
Fitment Details
Applicability: 1996-01 400 2x4, 4x4 (p/n: 2015)
1996-02 500i (p/n: 2015)
1996-14 500 4x4 (p/n: 2015)
1998 454 2x4 / 4x4 (p/n: 2015)
1998-05 300 2x4, 4x4 (p/n: 2015)
1999-05 250 2x4, 4x4 (p/n: 2015)
2000-02 500 AUTO (p/n: 2020)
2002-05 400 2X4, 4X4 (ACT) (i) (p/n: 2015)
2002-06 500 TBX 4x4 (p/n: 2015)
2003-04 400 Automatic 4x4 ACT (p/n: 2015)
2003-08 400 Automatic 2x4, 4x4 (LE) (p/n: 2015)
2003-16 500 TRV 4x4 (p/n: 2015)
2004-06 400 Automatic 4x4 TBX (p/n: 2015)
2004-11 650 4x4 (p/n: 2015)
2006-16 700 4x4 (AUTO)(AUTO EFI)(M4)(H1 SE) (p/n: 2015)
2006-16 700 Diesel and 700 TRV 4x4 (p/n: 2015)
2006-17 700 Mud Pro and 700 TBX 4x4 (p/n: 2015)
2007-11 650 TRV 4x4 (p/n: 2015)
2008-09 366 4x4 (p/n: 2012)
2008-17 1000 4x4 (p/n: 2015)
2009-14 550 4x4 (p/n: 2015)
2009-16 550 TRV 4x4 (p/n: 2015)
2009-17 1000 TRV 4x4 (p/n: 2015)
2010-12 450 4X4 (p/n: 2015)
2010-17 1000 MudPro 4X4 (p/n: 2015)
2012 350 4x4 (CR) (p/n: 2012)
2013 400 Automatic 4x4 TRV (p/n: 2015)
2014 400 Automatic 4x4 (p/n: 2015)
2015 400 Automatic 4x4 TRV (p/n: 2015)
2015 550 XR 4x4 (p/n: 2014)
2016 550 Alterra 4x4 (p/n: 2014)
2016-17 700 Alterra 4x4 (XT) (p/n: 2014)
2017 550 Alterra TRV 4x4 (p/n: 2014)
2017 700 Alterra TRV 4x4 (p/n: 2014)
2017 700 VLX (p/n: 2015)
Applicability: 1996-01 400 2x4, 4x4 (p/n: 2015)
1996-02 500i (p/n: 2015)
1996-14 500 4x4 (p/n: 2015)
1998 454 2x4 / 4x4 (p/n: 2015)
1998-05 300 2x4, 4x4 (p/n: 2015)
1999-05 250 2x4, 4x4 (p/n: 2015)
2000-02 500 AUTO (p/n: 2020)
2002-05 400 2X4, 4X4 (ACT) (i) (p/n: 2015)
2002-06 500 TBX 4x4 (p/n: 2015)
2003-04 400 Automatic 4x4 ACT (p/n: 2015)
2003-08 400 Automatic 2x4, 4x4 (LE) (p/n: 2015)
2003-16 500 TRV 4x4 (p/n: 2015)
2004-06 400 Automatic 4x4 TBX (p/n: 2015)
2004-11 650 4x4 (p/n: 2015)
2006-16 700 4x4 (AUTO)(AUTO EFI)(M4)(H1 SE) (p/n: 2015)
2006-16 700 Diesel and 700 TRV 4x4 (p/n: 2015)
2006-17 700 Mud Pro and 700 TBX 4x4 (p/n: 2015)
2007-11 650 TRV 4x4 (p/n: 2015)
2008-09 366 4x4 (p/n: 2012)
2008-17 1000 4x4 (p/n: 2015)
2009-14 550 4x4 (p/n: 2015)
2009-16 550 TRV 4x4 (p/n: 2015)
2009-17 1000 TRV 4x4 (p/n: 2015)
2010-12 450 4X4 (p/n: 2015)
2010-17 1000 MudPro 4X4 (p/n: 2015)
2012 350 4x4 (CR) (p/n: 2012)
2013 400 Automatic 4x4 TRV (p/n: 2015)
2014 400 Automatic 4x4 (p/n: 2015)
2015 400 Automatic 4x4 TRV (p/n: 2015)
2015 550 XR 4x4 (p/n: 2014)
2016 550 Alterra 4x4 (p/n: 2014)
2016-17 700 Alterra 4x4 (XT) (p/n: 2014)
2017 550 Alterra TRV 4x4 (p/n: 2014)
2017 700 Alterra TRV 4x4 (p/n: 2014)
2017 700 VLX (p/n: 2015)
×
