Description

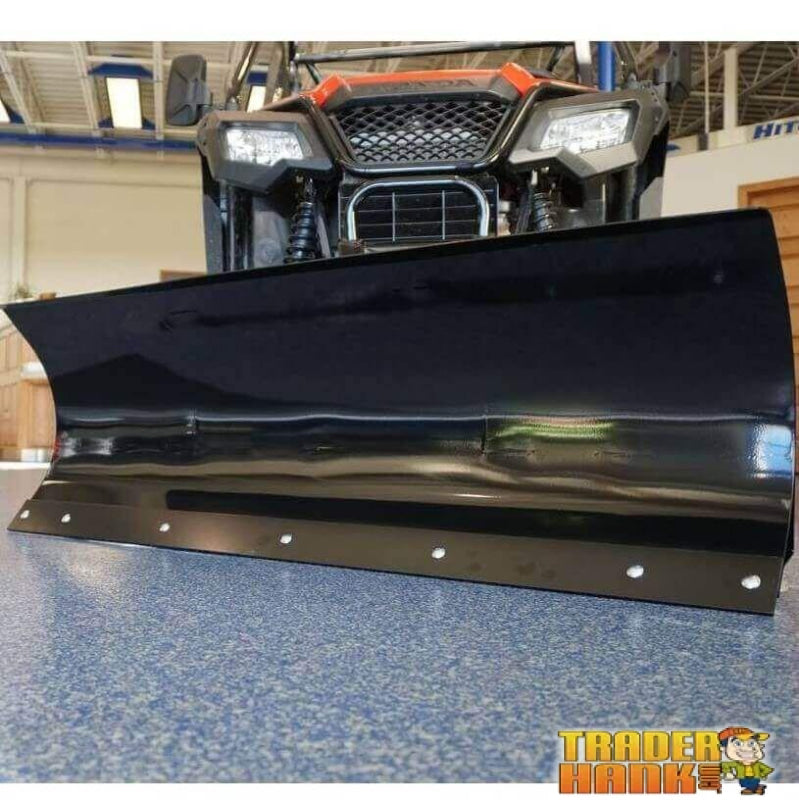

1998-2018 Honda Foreman 450 / 500 - 54 Inch Gen II Eagle Straight Blade Snow Plow Kit

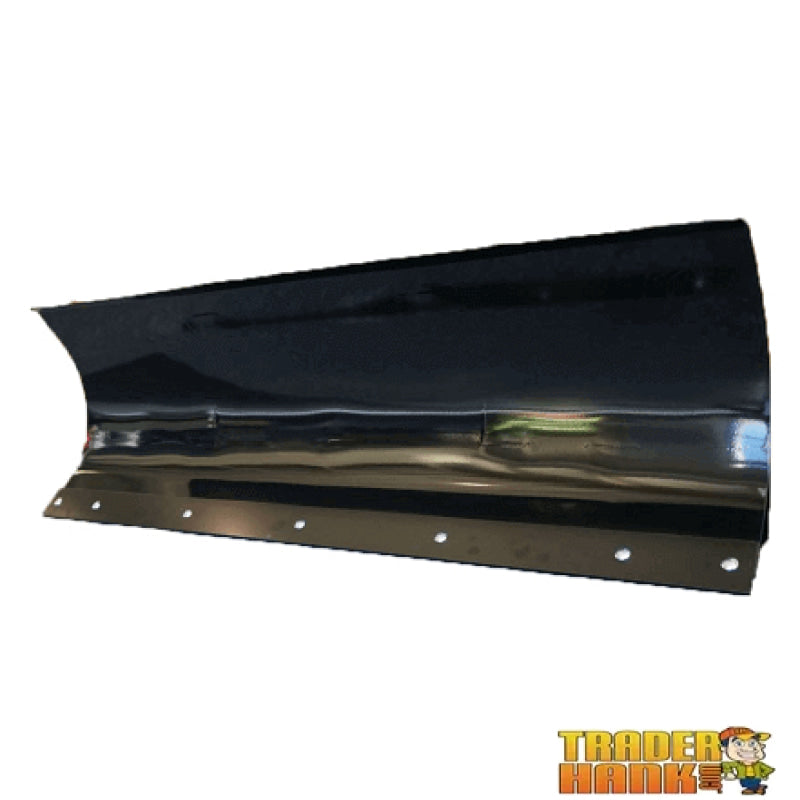

Straight Blade Features:
- 54 inches wide and 15.75 inches tall for angled cut width of 47.25 inches
- Tough, heavy duty wear bar is reversible and replaceable
- Manually adjusts to 5 blade positions side to side
- Adjustable, bolt-on blade stops offer 4 blade pitch positions
- Use the adjustable skid shoes with spacers to protect the blade and surface
- Blade mounts to the push tube swivel with 1/2” bolts
- Comes with trip springs and eye bolts for added blade plowing protection
Push Tube Features:
- Manufactured from 1-1/2” high strength square tubing
- Attaches in seconds with the Quick-Latch brackets and locks in place
- V-shaped design and cross bars for increased stability
- Swivel adjust to 5 positions offering 30° of rotation to each side
- Swivel rotates on a heavy duty 5/8” bolt mounted to 1/4” solid steel
- Powder coated jet black

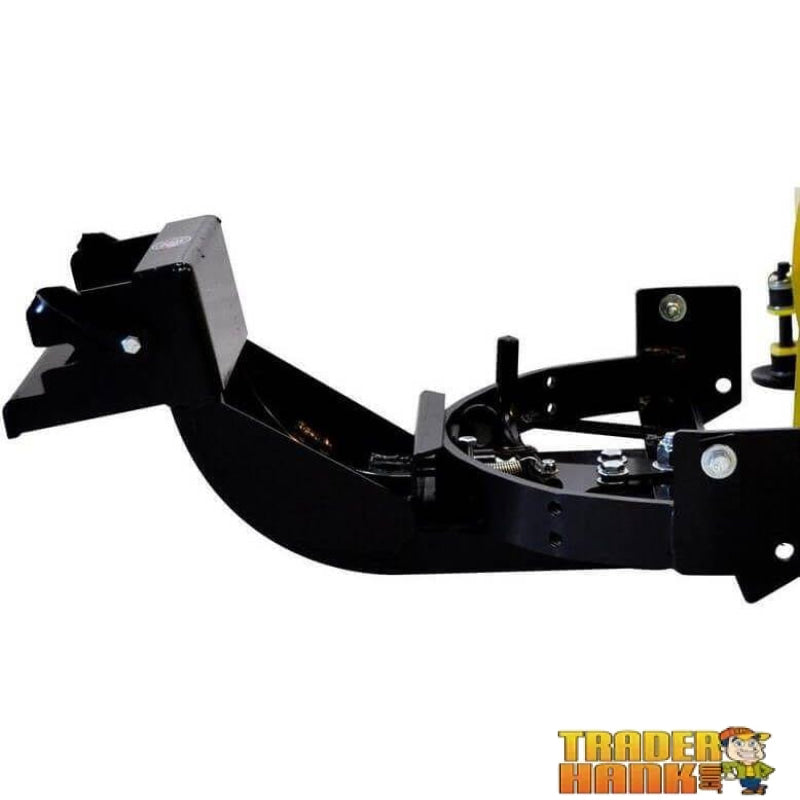

Plow Mount Features:
- Front mount
- Quick-Latch pins offer instant engaging and disengaging
- Some mounts recommended to be removed in off-season to maintain ground clearance
- Powder coated jet black
Kit Includes:
- Blade
- Push tube
- Model specific plow mount
Fitment
Fitment Details
Applicability:1998-04 Foreman TRX450 (p/n: 3924)
2005-11 Foreman TRX500 (p/n: 3925)
2014-18 Foreman TRX500 (All Models) (p/n: 3927)
Applicability:
2005-11 Foreman TRX500 (p/n: 3925)
2014-18 Foreman TRX500 (All Models) (p/n: 3927)
