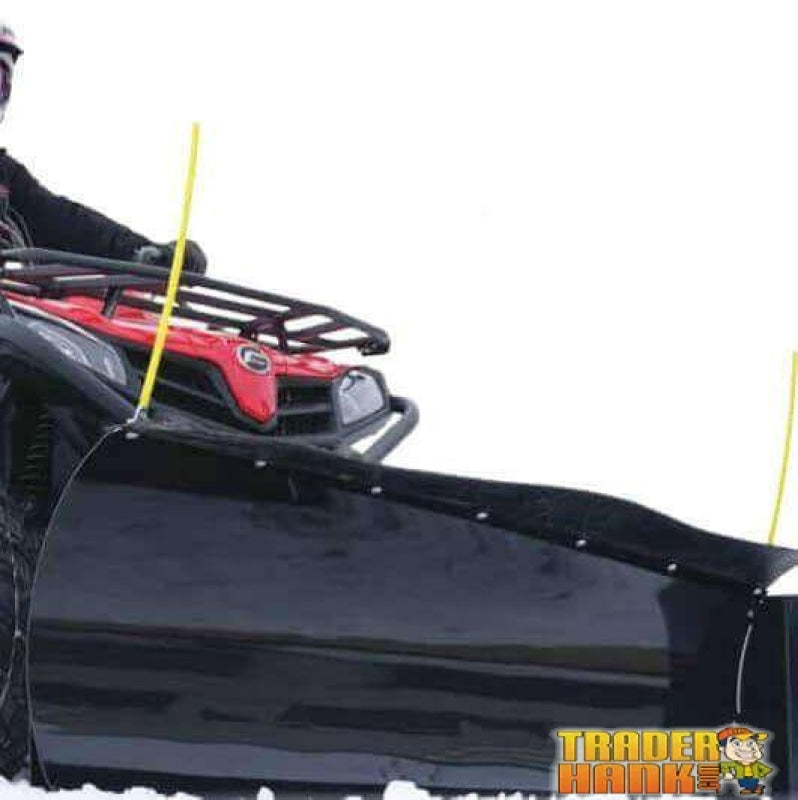

1998-2020 Yamaha Grizzly 60 Inch Eagle Country Blade Snow Plow Kit

Part #

or-1921

1998-2020 Yamaha Grizzly 60 Inch Eagle Country Blade Snow Plow Kit

Straight Blade Features:
  • 54 inches wide and 15.75 inches tall for angled cut width of 47.25 inches
  • Tough, heavy duty wear bar is reversible and replaceable
  • Manually adjusts to 5 blade positions side to side
  • Adjustable, bolt-on blade stops offer 4 blade pitch positions
  • Use the adjustable skid shoes with spacers to protect the blade and surface
  • Blade mounts to the push tube swivel with 1/2” bolts
  • Comes with trip springs and eye bolts for added blade plowing protection

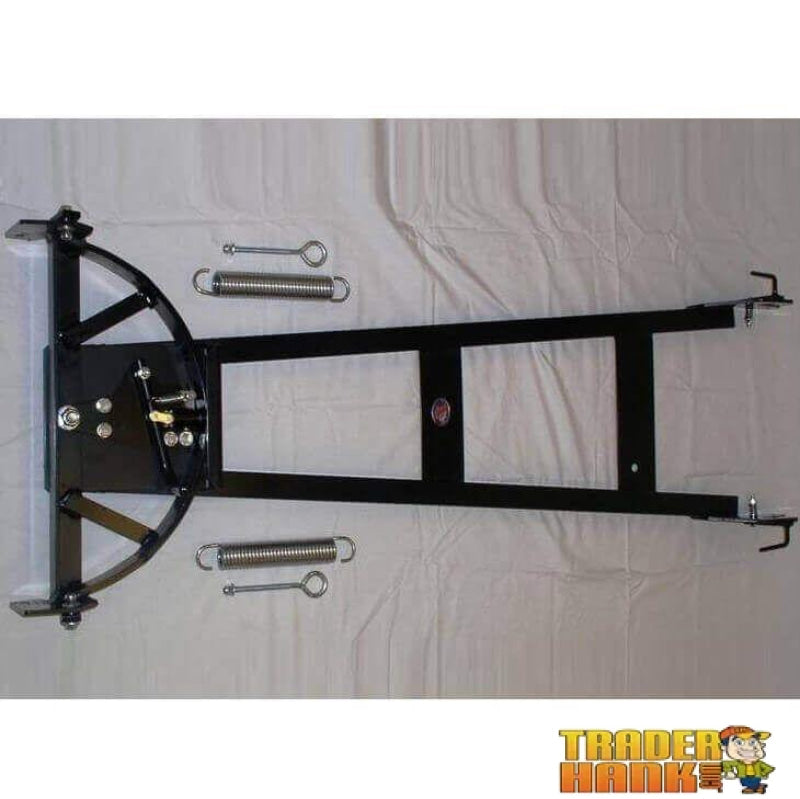

Push Tube Features:
  • Manufactured from 1-1/2” high strength square tubing
  • Attaches in seconds with the Quick-Latch brackets and locks in place
  • V-shaped design and cross bars for increased stability
  • Swivel adjust to 5 positions offering 30° of rotation to each side
  • Swivel rotates on a heavy duty 5/8” bolt mounted to 1/4” solid steel
  • Powder coated jet black
Universal Push Tube Mount Features:
  • Offers pins for instant engaging and disengaging of plow system with the Quick-Latch Brackets
  • Made from 10-gauge steel and attaches with provided grade 5 carriage bolts
  • Removable after the season and replaceable
  • Powder coated jet black
Plow Mount Features:
  • Mid mount
  • Can stay on year-round and acts as a steel, skid plate
  • Won’t affect oil changing or ground clearance
  • Made from 11-gauge steel and attaches with provided hardware
  • Powder coated jet black

Kit Includes:

  • Blade
  • Push tube
  • Universal push tube mount
  • Model specific plow mount

NOTE: Must have a winch to use plow system.

1998-2020 Yamaha Grizzly 60 Inch Eagle Country Blade Snow Plow Kit

Fitment Details

Updated 06-29-2021 @ 1:38 PM MST

  • Applicability:

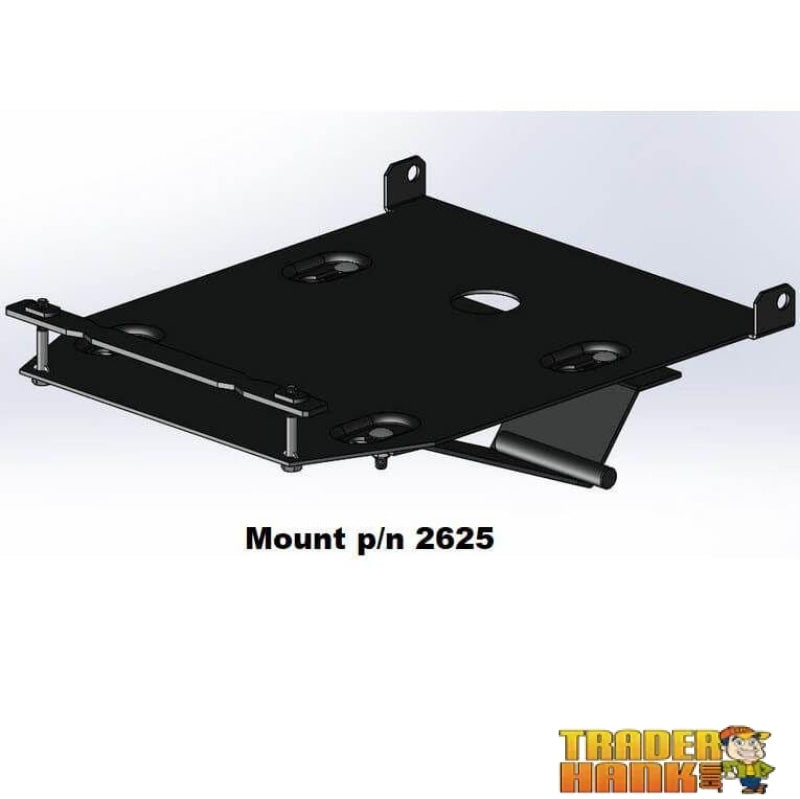

  • 1998-01 Grizzly 4x4 600 (p/n: 2625)

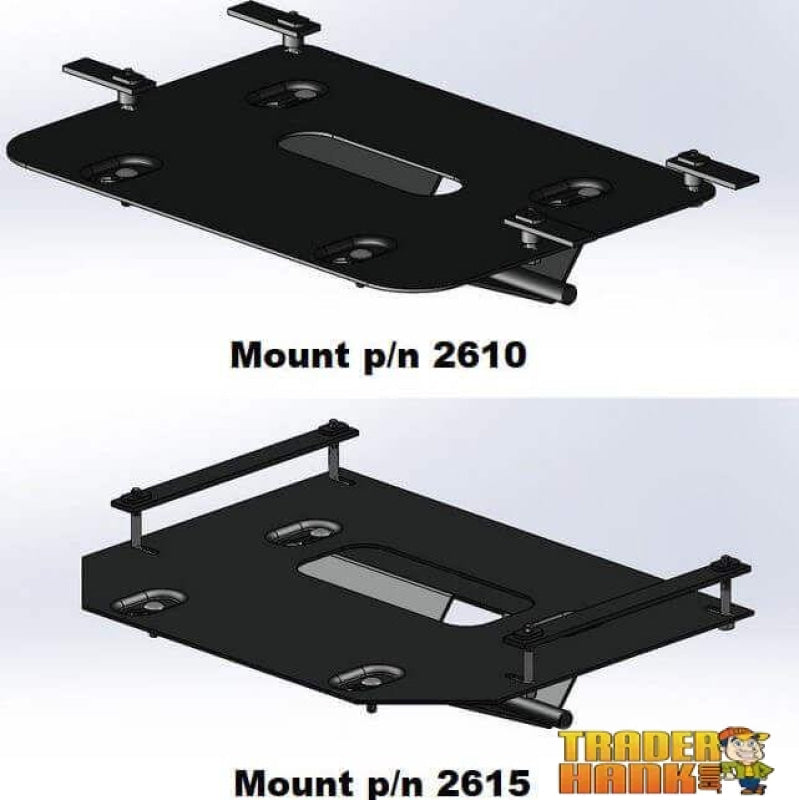

    2002-08 Grizzly 660 4x4 (p/n: 2615)
    2007-12 Grizzly 700 4x4 (p/n: 2615)
    2007-14 Grizzly 350 2x4, 4x4 (p/n: 2615)
    2007-14 Grizzly 450 (p/n: 2615)
    2009-12 Grizzly 550 4x4 (p/n: 2615)
    2013-14 Grizzly 550 4x4 (p/n: 2610)
    2013-20 Grizzly 700 4x4 (p/n: 2610)
    2017-20 Grizzly LE/SE 4x4 (p/n: 2610)
