2006-2017 Arctic Cat Prowler 60 Inch Eagle Straight Blade Snow Plow Kit

Part #

or-2011

2006-2017 Arctic Cat Prowler 60 Inch Eagle Straight Blade Snow Plow Kit

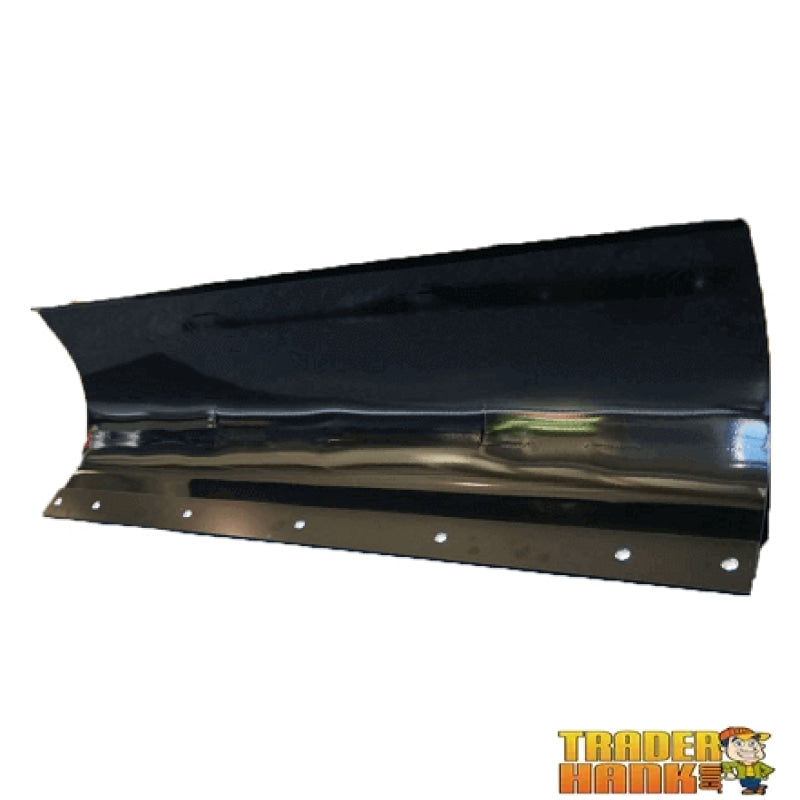

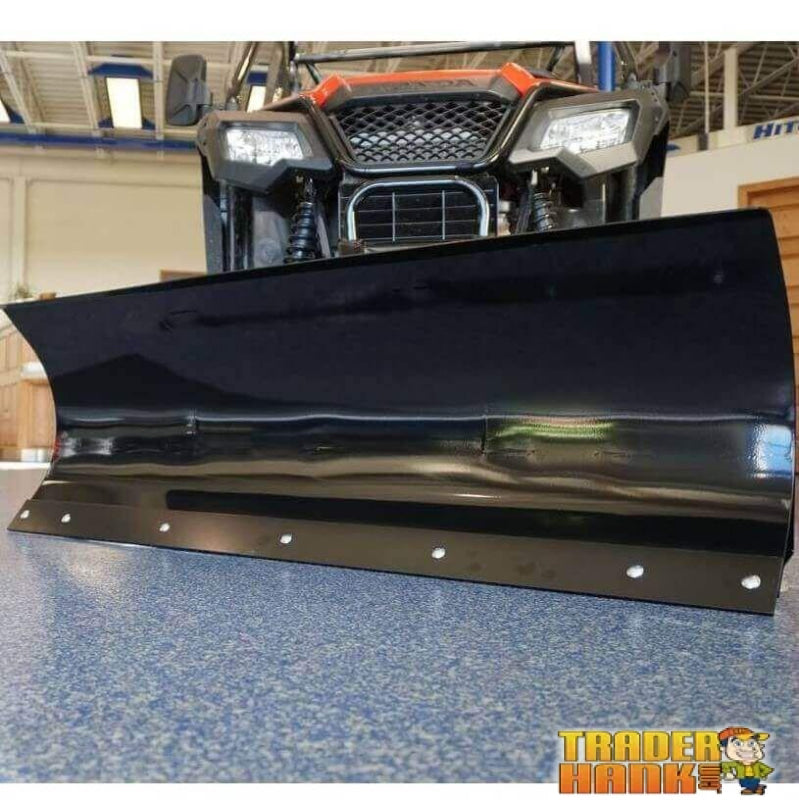

Straight Blade Features:
  • 60 inches wide and 15.75 inches tall for angled cut width of 52.5 inches
  • Tough, heavy duty wear bar is reversible and replaceable
  • Manually adjusts to 5 blade positions side to side
  • Adjustable, bolt-on blade stops offer 4 blade pitch positions
  • Use the adjustable skid shoes with spacers to protect the blade and surface
  • Blade mounts to the push tube swivel with 1/2” bolts
  • Comes with trip springs and eye bolts for added blade plowing protection
Push Tube Features:
  • Manufactured from 1 1/2” high strength formed tubing
  • Multiple cross members and V-shaped design for added hardiness to the entire system
  • Manually adjust to 5 positions offering 30° of rotation to each side
  • Swivel rotates on a heavy duty 5/8” bolt mounted to 1/4” solid steel
  • Powder coated jet black
Plow Mount Features:
  • Front mount
  • Manufactured from 1/4” steel and attaches with grade 5 hardware to the frame
  • Clevis pins are included for attaching push tubes
  • Some mounts recommended to be removed in off-season to maintain ground clearance
  • Powder coated jet black

Optional Push Tube Use Features:
Whether you have tires or tracks on your UTV, the Eagle plow system has just what you need. Get the standard push tube length for use with tires for the perfect fitment. Added a track system to your UTV? No issue! The extended push tube length is a perfect fit for that set up!

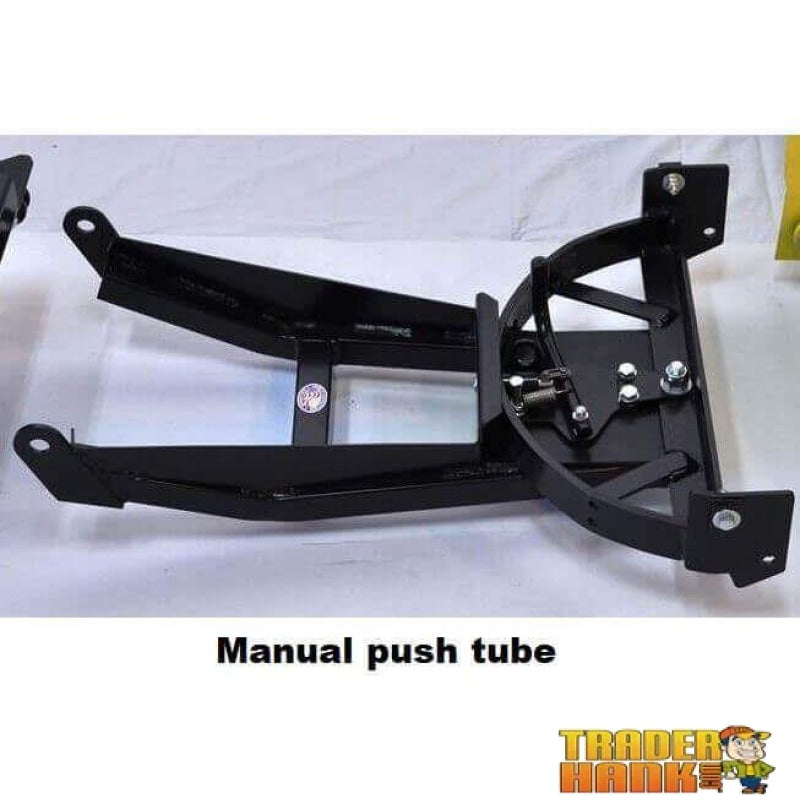

Want to manually move your blade to one of the 5 positions offered? Get the manual push tube to save money.

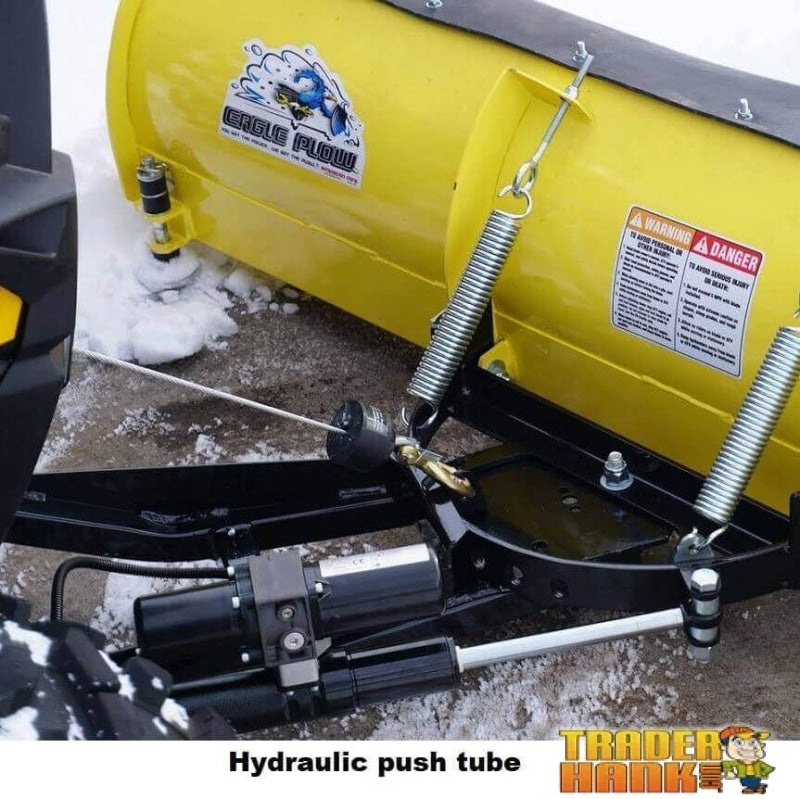

If ease of use is your top priority, order the hydraulic push tube with the Eagle Motion Pac by KYB. The Eagle Motion Pac can allow you to hydraulically control the plow position from your UTV seat. Talk about easy! The motion is powered by a single 3/4" chrome hydraulic shaft. Different lengths are available depending on your UTV set up, tires or tracks! This Motion Pac by KYB is a complete kit, including the push tube for moving the plow position, wiring harness, hydraulic cylinder and swivel system.

Kit Includes:

  • Blade
  • Push tube
  • Model specific plow mount

NOTE: Must have a winch to use plow system.

2006-2017 Arctic Cat Prowler 60 Inch Eagle Straight Blade Snow Plow Kit

Fitment Details

Updated 07-13-2021 @ 3:45 AM MST

  • APPLICABILITY:
  • • 2006-09 Prowler 650 H1 XT 4X4 (p/n: 2860)
    • 2008-14 Prowler 700 XTX (p/n: 2860)
    • 2009-14 Prowler 550 XT (p/n: 2860)
    • 2010-14 Prowler 1000 XTZ 4X4 (p/n: 2860)
    • 2014-15 Prowler 500 HDX (p/n: 2860)
    • 2015 Prowler 550 XT (p/n: 2864)
    • 2015-16 Prowler 1000 (p/n: 2864)
    • 2015-17 Prowler 700 (p/n: 2864)
    • 2016-17 Prowler 500 HDX (p/n: 2864)
    • 2016-17 Prowler 700 HDX (p/n: 2864)
    • 2017 Prowler 700 HDX Crew (p/n: 2864)
    • 2017 Prowler 500 (p/n: 2865)
