Description

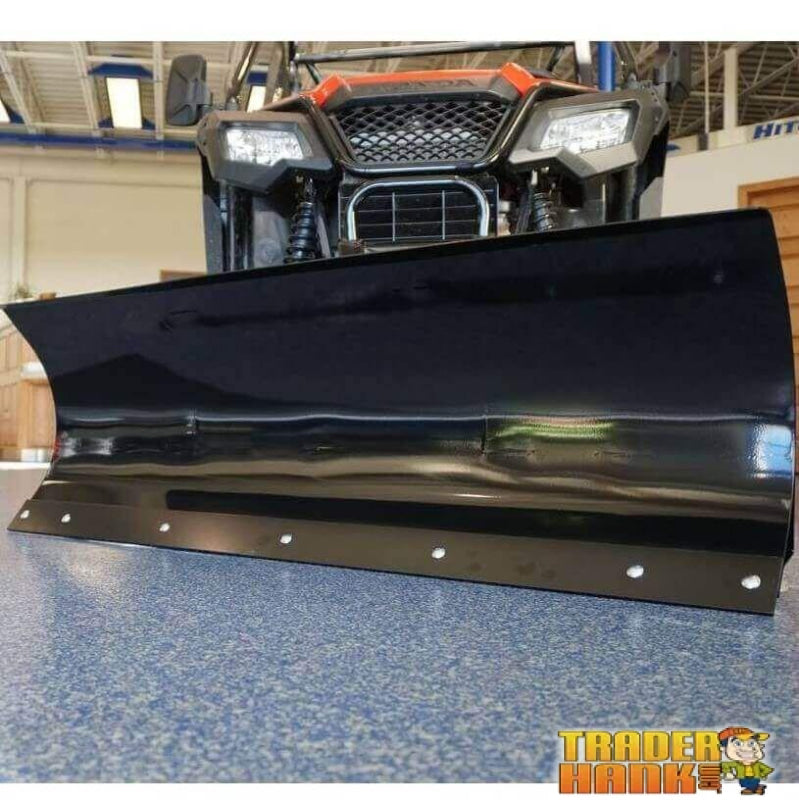

2006-2018 Can Am Outlander 50 Inch Gen II Eagle Straight Blade Snow Plow Kit

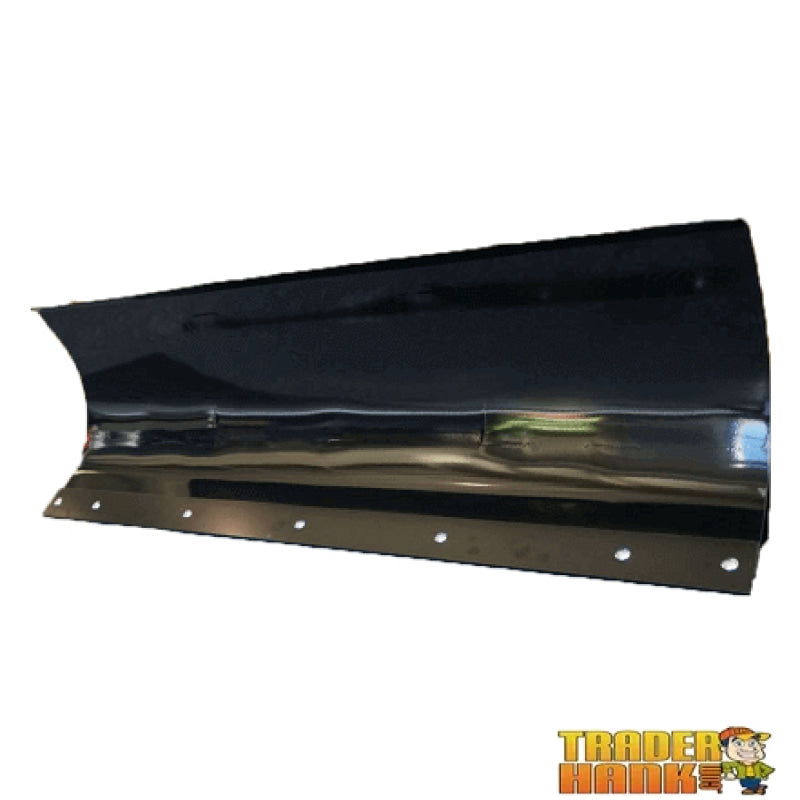

Straight Blade Features:
- 50 inches wide and 15.75 inches tall for angled cut width of 43.75 inches
- Tough, heavy duty wear bar is reversible and replaceable
- Manually adjusts to 5 blade positions side to side
- Adjustable, bolt-on blade stops offer 4 blade pitch positions
- Use the adjustable skid shoes with spacers to protect the blade and surface
- Blade mounts to the push tube swivel with 1/2” bolts
- Comes with trip springs and eye bolts for added blade plowing protection

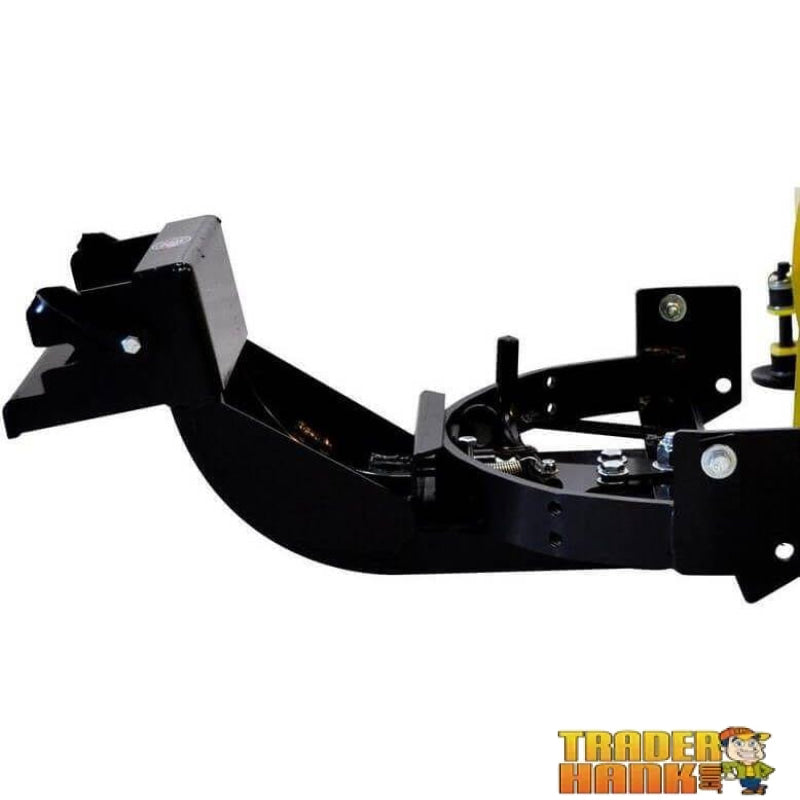

Push Tube Features:
- Manufactured from 1-1/2” high strength square tubing
- Attaches in seconds with the Quick-Latch brackets and locks in place
- V-shaped design and cross bars for increased stability
- Swivel adjust to 5 positions offering 30° of rotation to each side
- Swivel rotates on a heavy duty 5/8” bolt mounted to 1/4” solid steel
- Powder coated jet black
Plow Mount Features:
- Front mount
- Quick-Latch pins offer instant engaging and disengaging
- Some mounts recommended to be removed in off-season to maintain ground clearance
- Powder coated jet black
Kit Includes:
- Blade
- Push tube
- Model specific plow mount
Fitment
Fitment Details
Applicability: 2006-2011 Outlander 800 (XT) (p/n: 3911)
2006-2012 Outlander 650 (XT) (p/n: 3911)
2006-2012 Outlander 400 4X4 (XT) (p/n: 3911)
2006-2012 800 Outlander 800 MAX (XT) (p/n: 3911)
2007-2012 Outlander 500 (XT) (p/n: 3911)
2007-2012 Outlander 500 4x4 MAX (XT)
2011 Outlander 800R (XT) (p/n: 3911)
2012 Outlander 800R (XT) (p/n: 3912)
2012-2015 Outlander 800 (XT) (p/n: 3919)
2013 Outlander 400 Max 4x4 (XT) (p/n: 3919)
2013-2014 Outlander 400 4X4 (XT) (p/n: 3911)
2013-2015 Outlander 500 (XT) (p/n: 3919)
2013-2015 Outlander 500 4x4 MAX (XT) (p/n: 3919)
2013-2015 Outlander 800 MAX (XT) (p/n: 3919)
2013-2015 Outlander 800R (XT) (p/n: 3919)
2013-2015 Outlander 800R MAX (XT) (p/n: 3919)
2013-2018 Outlander 650 (XT) (p/n: 3919)
2013-2018 Outlander 650 MAX (XT) (p/n: 3919)
2013-2018 Outlander 1000 4x4 (XT) (p/n: 3919)
2013-2018 Outlander 1000 MAX 4x4 (XT) (p/n: 3919)
2015-2016 Outlander 450L (XT) (p/n: 3928)
2015-2016 Outlander 450L MAX (XT) (p/n: 3928)
2016 Outlander 570L (XT) (p/n: 3928)
2016 Outlander 570L MAX (XT) (p/n: 3928)
2016-2018 Outlander 570 (XT) (p/n: 3928)
2016-2018 Outlander 570 MAX (XT) (p/n: 3928)
2016-2018 Outlander 850 (XT) (p/n: 3911)
2016-2018 Outlander 850 MAX (XT) (p/n: 3919)
2017-2018 Outlander 450 (XT) (p/n: 3928)
2017-2018 Outlander 450 MAX (XT) (p/n: 3928)
Applicability:
2006-2012 Outlander 650 (XT) (p/n: 3911)
2006-2012 Outlander 400 4X4 (XT) (p/n: 3911)
2006-2012 800 Outlander 800 MAX (XT) (p/n: 3911)
2007-2012 Outlander 500 (XT) (p/n: 3911)
2007-2012 Outlander 500 4x4 MAX (XT)
2011 Outlander 800R (XT) (p/n: 3911)
2012 Outlander 800R (XT) (p/n: 3912)
2012-2015 Outlander 800 (XT) (p/n: 3919)
2013 Outlander 400 Max 4x4 (XT) (p/n: 3919)
2013-2014 Outlander 400 4X4 (XT) (p/n: 3911)
2013-2015 Outlander 500 (XT) (p/n: 3919)
2013-2015 Outlander 500 4x4 MAX (XT) (p/n: 3919)
2013-2015 Outlander 800 MAX (XT) (p/n: 3919)
2013-2015 Outlander 800R (XT) (p/n: 3919)
2013-2015 Outlander 800R MAX (XT) (p/n: 3919)
2013-2018 Outlander 650 (XT) (p/n: 3919)
2013-2018 Outlander 650 MAX (XT) (p/n: 3919)
2013-2018 Outlander 1000 4x4 (XT) (p/n: 3919)
2013-2018 Outlander 1000 MAX 4x4 (XT) (p/n: 3919)
2015-2016 Outlander 450L (XT) (p/n: 3928)
2015-2016 Outlander 450L MAX (XT) (p/n: 3928)
2016 Outlander 570L (XT) (p/n: 3928)
2016 Outlander 570L MAX (XT) (p/n: 3928)
2016-2018 Outlander 570 (XT) (p/n: 3928)
2016-2018 Outlander 570 MAX (XT) (p/n: 3928)
2016-2018 Outlander 850 (XT) (p/n: 3911)
2016-2018 Outlander 850 MAX (XT) (p/n: 3919)
2017-2018 Outlander 450 (XT) (p/n: 3928)
2017-2018 Outlander 450 MAX (XT) (p/n: 3928)
