2006-2019 Textron UTV 72 Inch Eagle Straight Blade Snow Plow Kit

Part #

or-2099

UTV Accessories Phone Orders

Fitment Details

Updated 06-25-2021 @ 2:41 PM MST

  • Applicability:
  • 2006-10 Bad Boy Classic 4x4 (p/n: 2875)
    2010-11 Bad Boy XT 4x4 (p/n: 2874)
    2013-14 Bad Boy Ambush 4x4 (p/n: 2873)
    2013-14 Bad Boy Instinct 4x4 (p/n: 2873)
    2013-14 Bad Boy Recoil 4x4 (p/n: 2873)
    2016 Bad Boy 900 Stampede (p/n: 2877)
    2017 Textron 900 Stampede (p/n: 2877)
    2017 Textron Stampede XTR 900 (p/n: 2877)
    2018 Stampede (p/n: 2877)
    2018 Stampede X (p/n: 2877)
    2018 Stampede 4 (p/n: 2877)
    2018 Stampede 4X (p/n: 2877)
    2018 Havoc X (p/n: 2877)
    2018 Wildcat Trail (XT) (LTD) (p/n: 2866)
    2018-19 Prowler Pro (XT) (p/n: 2878)
    2019 Prowler Pro Crew (XT) (p/n: 2878)
  • Read more...

    2006-2019 Textron UTV 72 Inch Eagle Straight Blade Snow Plow Kit

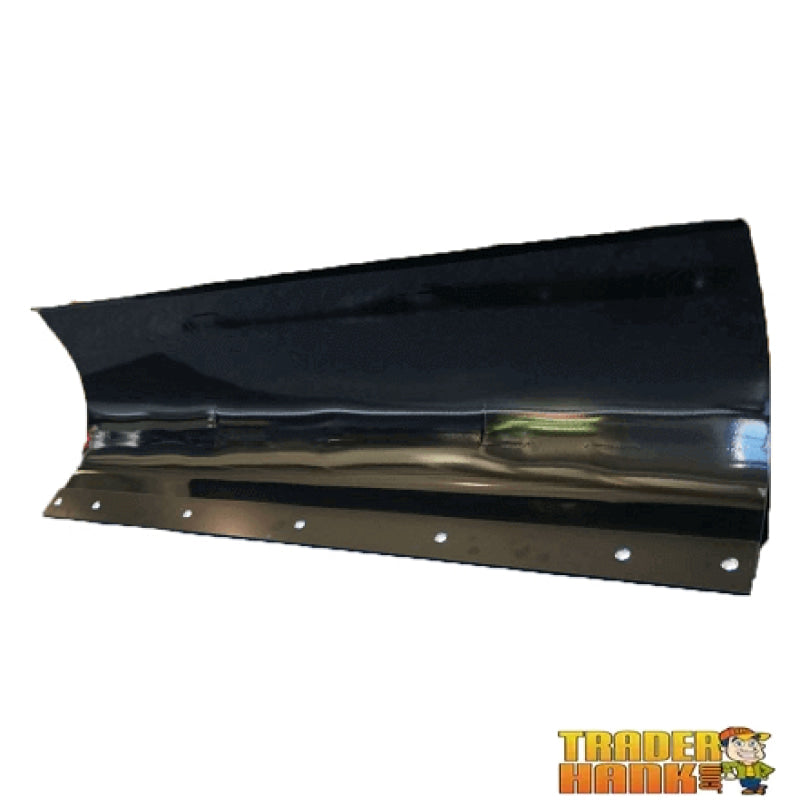

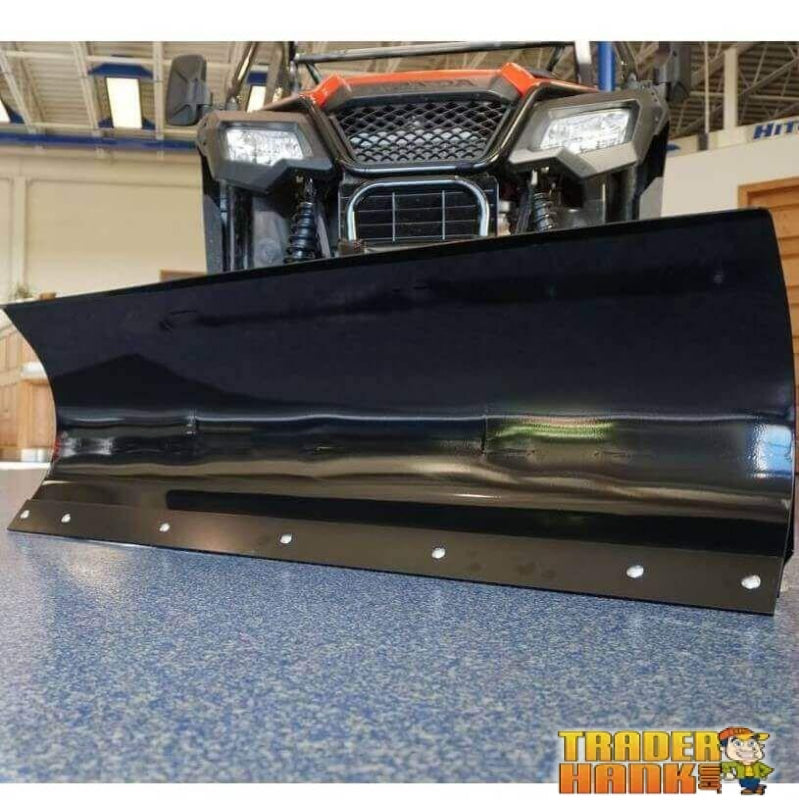

    Straight Blade Features:

    • 72 inches wide and 15.75 inches tall for angled cut width of 63 inches
    • Tough, heavy duty wear bar is reversible and replaceable
    • Manually adjusts to 5 blade positions side to side
    • Adjustable, bolt-on blade stops offer 4 blade pitch positions
    • Use the adjustable skid shoes with spacers to protect the blade and surface
    • Blade mounts to the push tube swivel with 1/2” bolts
    • Comes with trip springs and eye bolts for added blade plowing protection
    • Includes rubber flap and plow markers

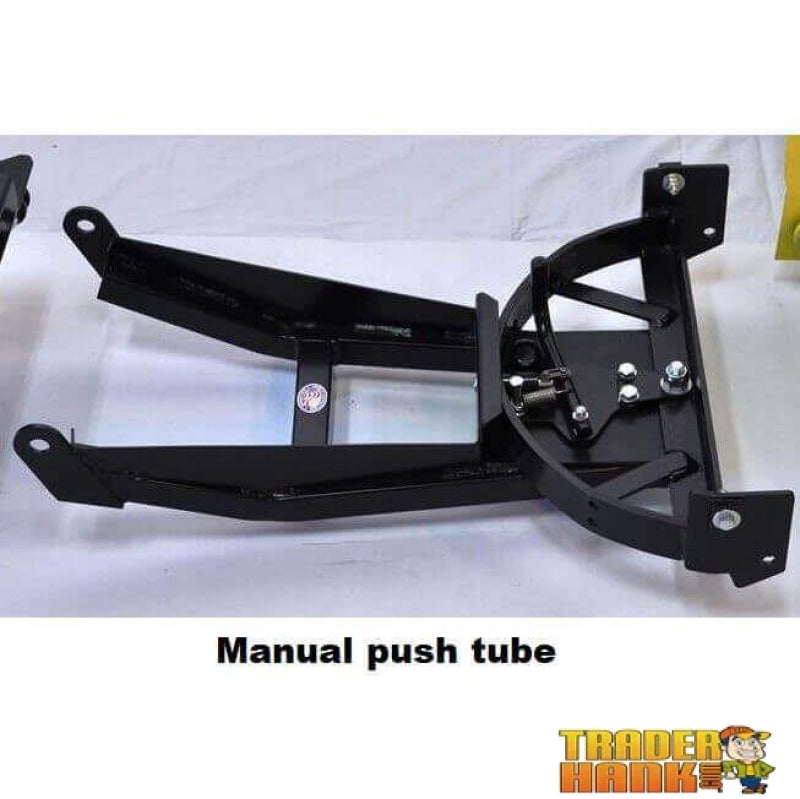

    Push Tube Features:

    • Manufactured from 1 1/2” high strength formed tubing
    • Multiple cross members and V-shaped design for added hardiness to the entire system
    • Manually adjust to 5 positions offering 30° of rotation to each side
    • Swivel rotates on a heavy duty 5/8” bolt mounted to 1/4” solid steel
    • Powder coated jet black

    Plow Mount Features:

    • Front mount
    • Manufactured from 1/4” steel and attaches with grade 5 hardware to the frame
    • Clevis pins are included for attaching push tubes
    • Some mounts recommended to be removed in off-season to maintain ground clearance
    • Powder coated jet black


    Optional Push Tube Use Features:
    Whether you have tires or tracks on your UTV, the Eagle plow system has just what you need. Get the standard push tube length for use with tires for the perfect fitment. Added a track system to your UTV? No issue! The extended push tube length is a perfect fit for that set up!

    Want to manually move your blade to one of the 5 positions offered? Get the manual push tube to save money.

    If ease of use is your top priority, order the hydraulic push tube with the Eagle Motion Pac by KYB. The Eagle Motion Pac can allow you to hydraulically control the plow position from your UTV seat. Talk about easy! The motion is powered by a single 3/4" chrome hydraulic shaft. Different lengths are available depending on your UTV set up, tires or tracks! This Motion Pac by KYB is a complete kit, including the push tube for moving the plow position, wiring harness, hydraulic cylinder and swivel system.

    Kit Includes:

    • Blade
    • Push tube
    • Model specific plow mount

    NOTE: Must have a winch to use plow system.
