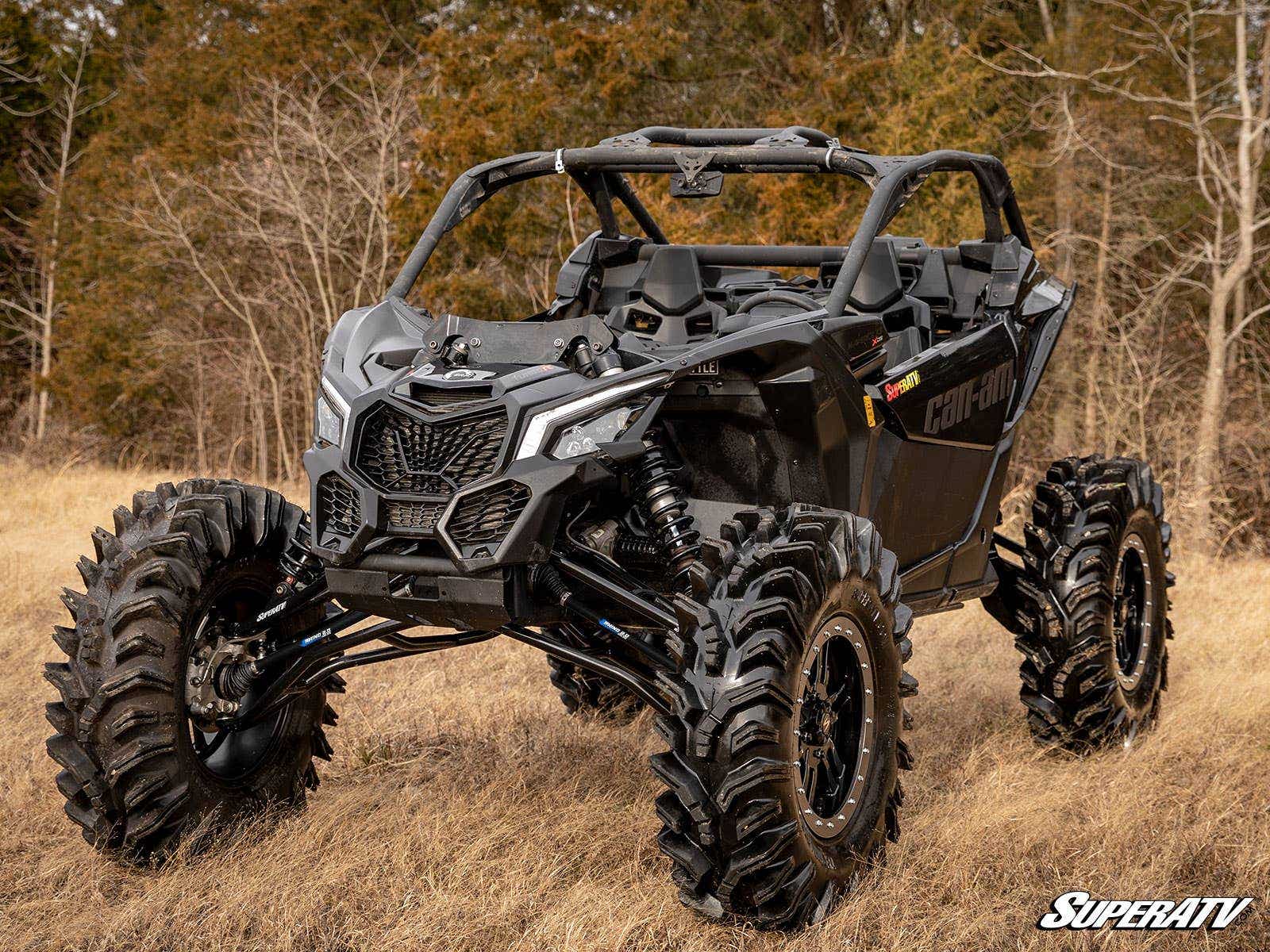

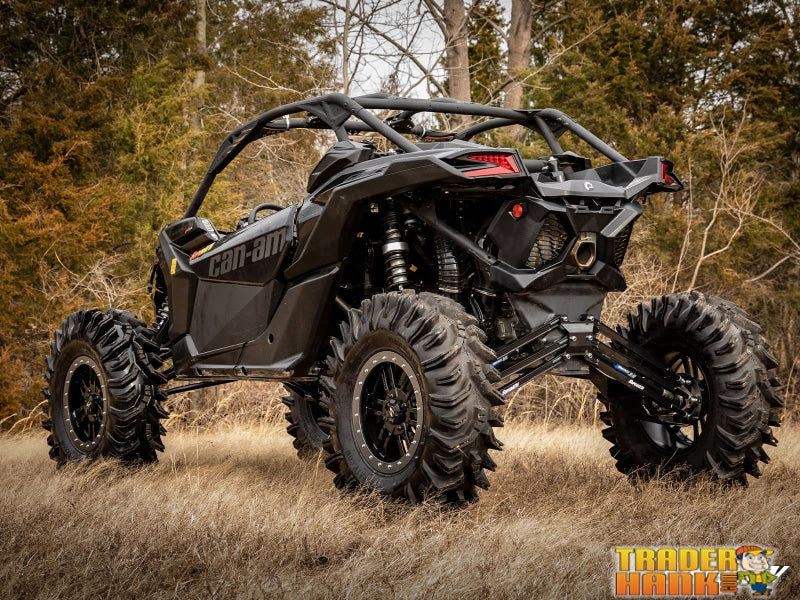

Can-Am Maverick X3 6" Lift Kit

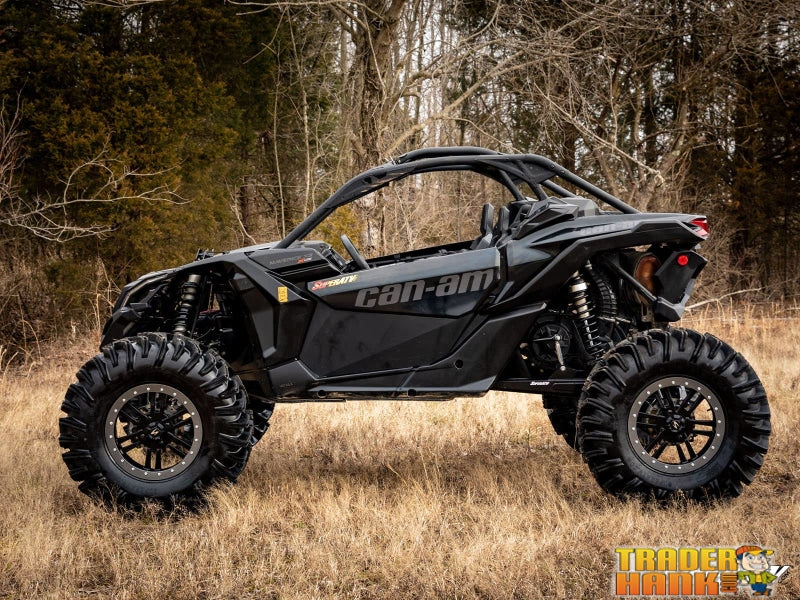

This 6-inch lift kit is built to get your Can-Am Maverick X3 higher off the ground and ready for bigger tires—up to 38 inches. More clearance means you can tackle rougher terrain, clear obstacles easier, and fit rubber that'll make a real difference in how your machine performs on the trail.

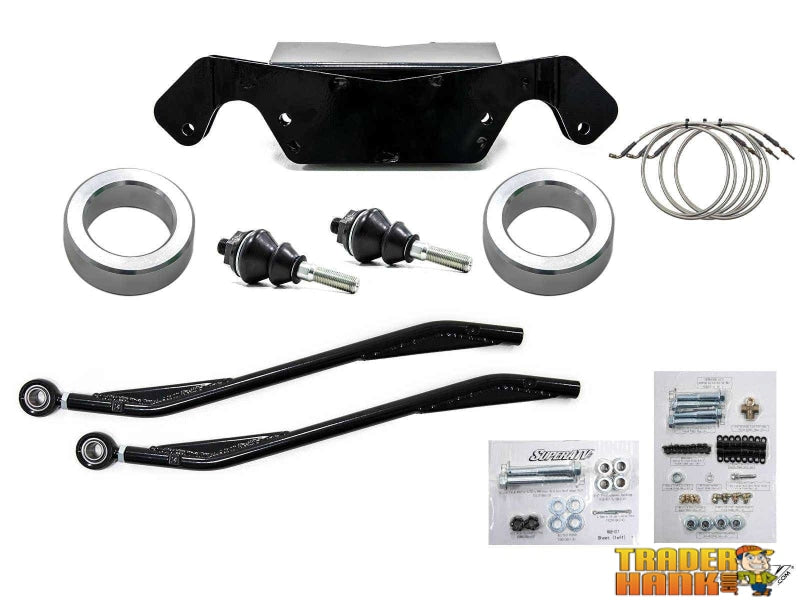

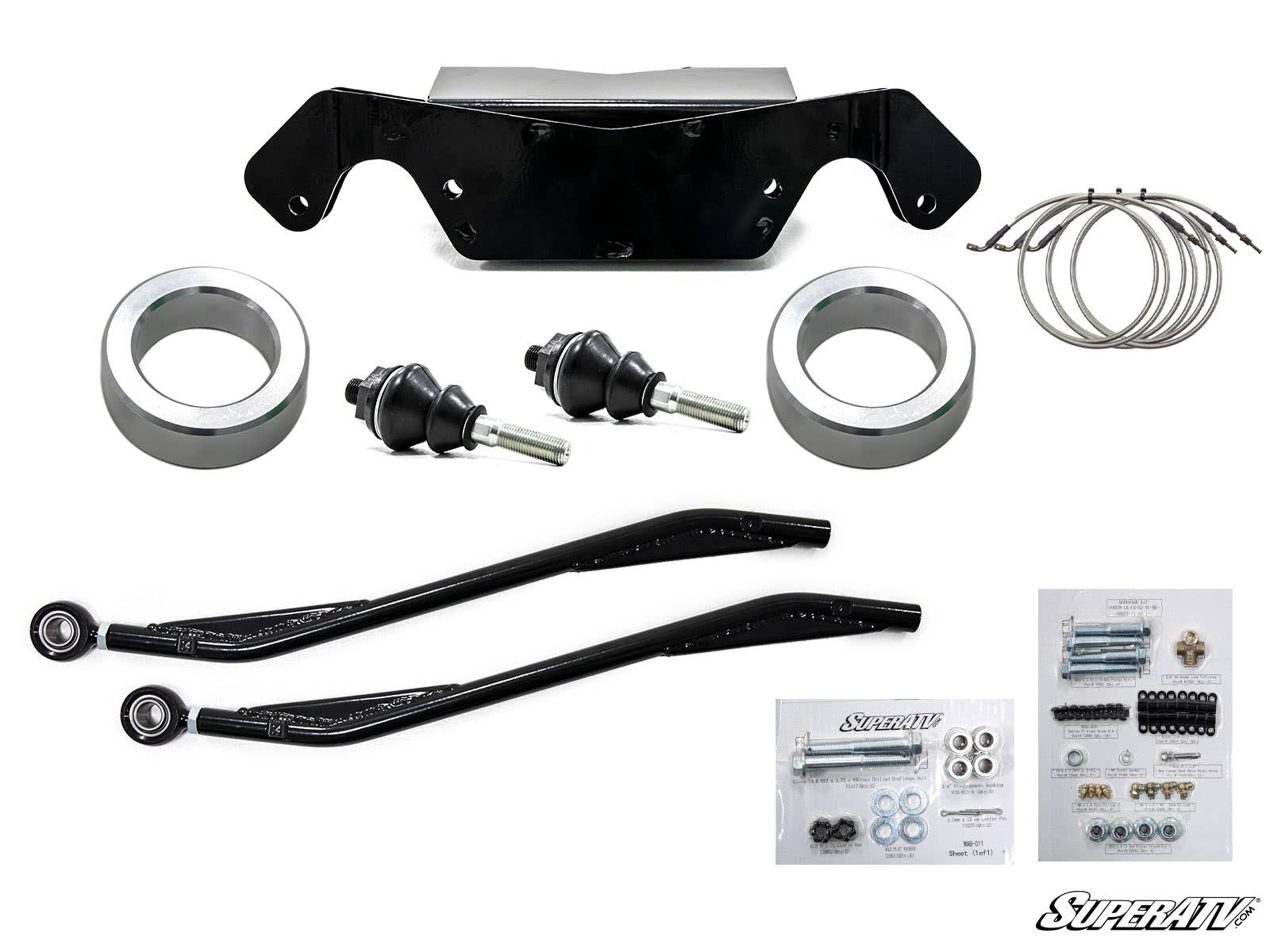

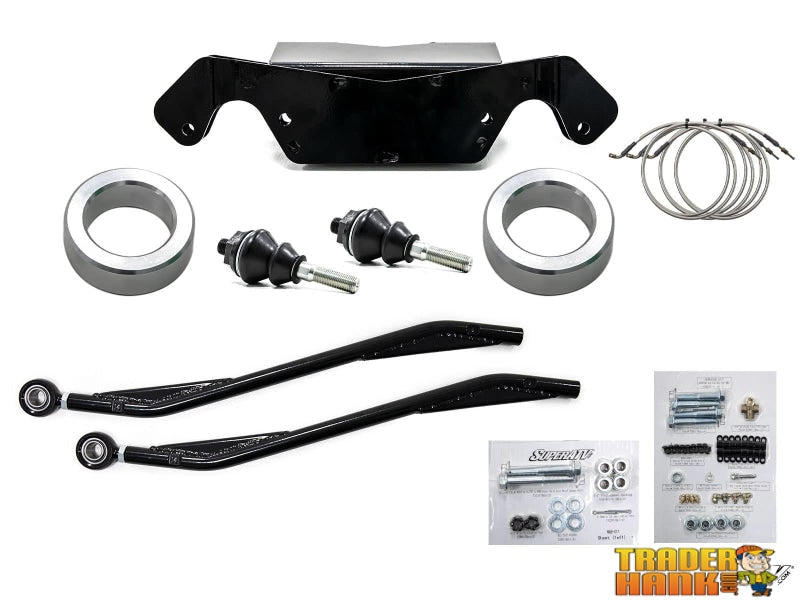

What You're Getting

• Front high-clearance A-arms (chromoly steel)

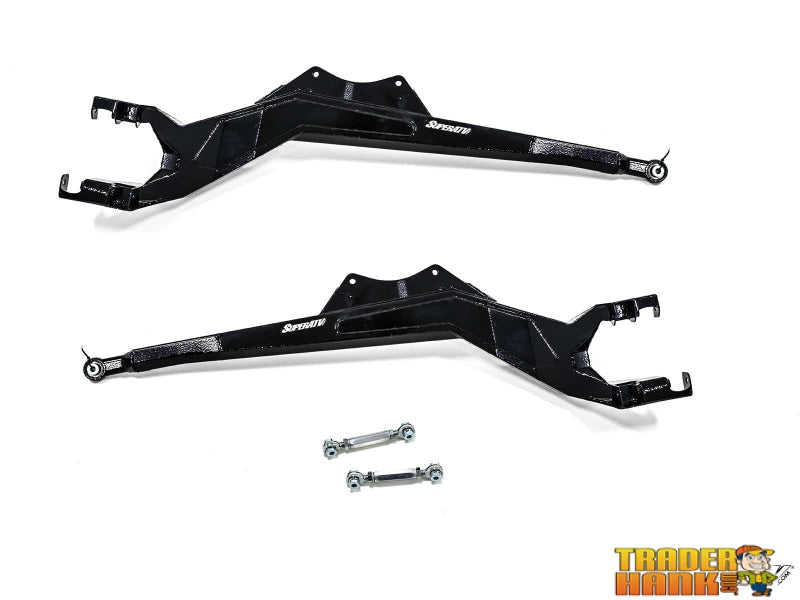

• Rear trailing arms

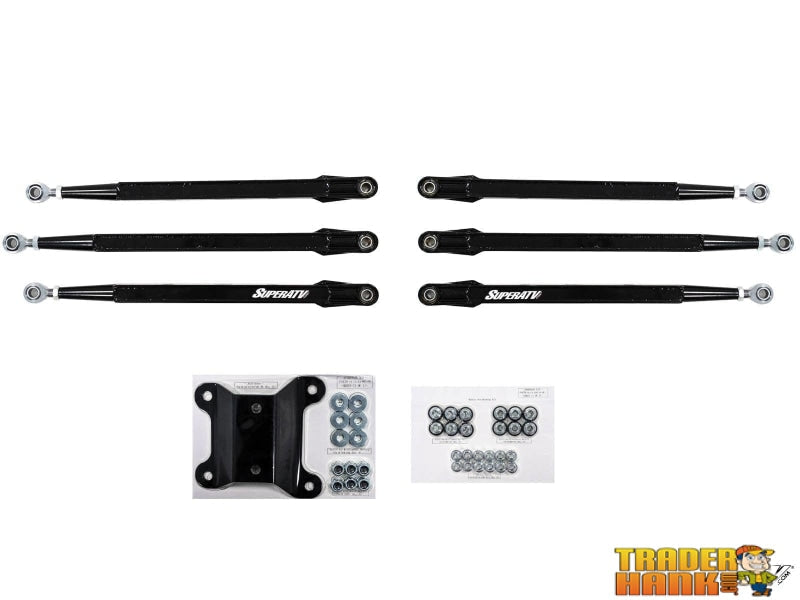

• Rear radius arms
• 4 Rhino 2.0 axles
• Heavy-duty tie rod kit

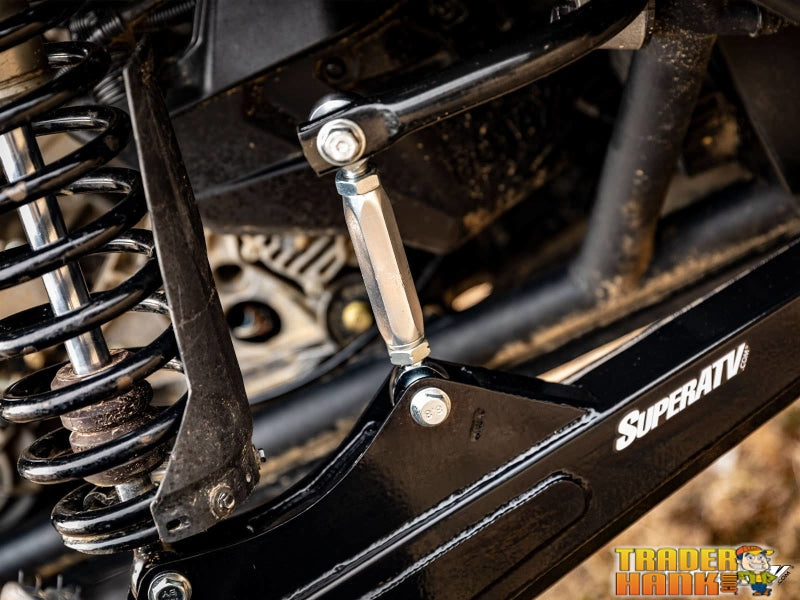

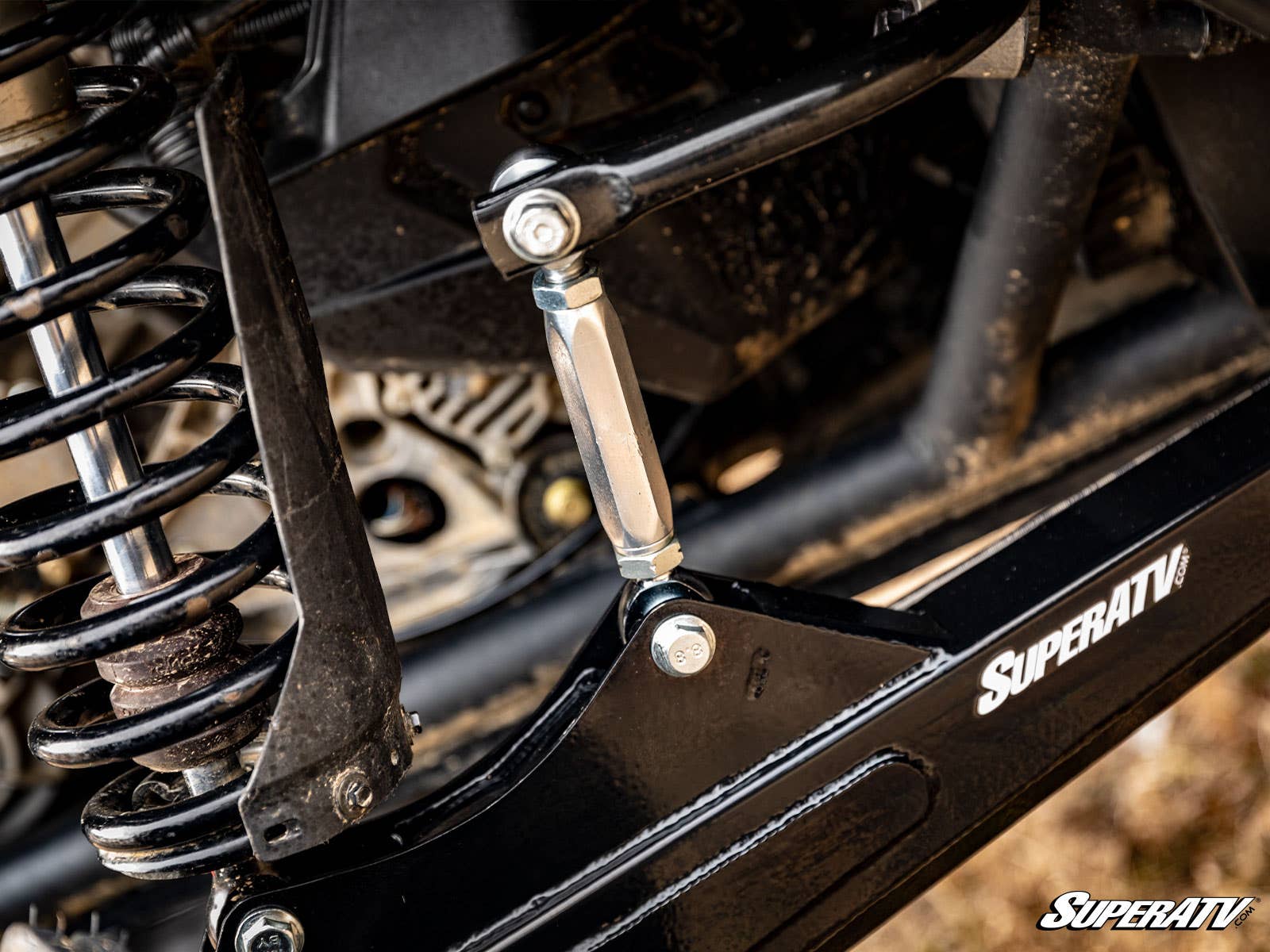

• Sway bar links (billet aluminum)
• Shock brackets and spacers
• Extended brake lines
• All fasteners and step-by-step instructions

Built Strong Where It Counts

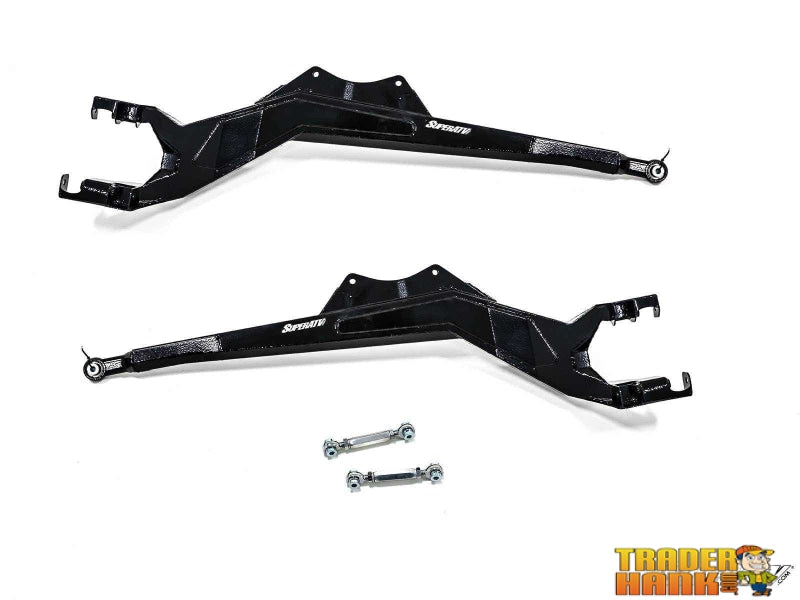

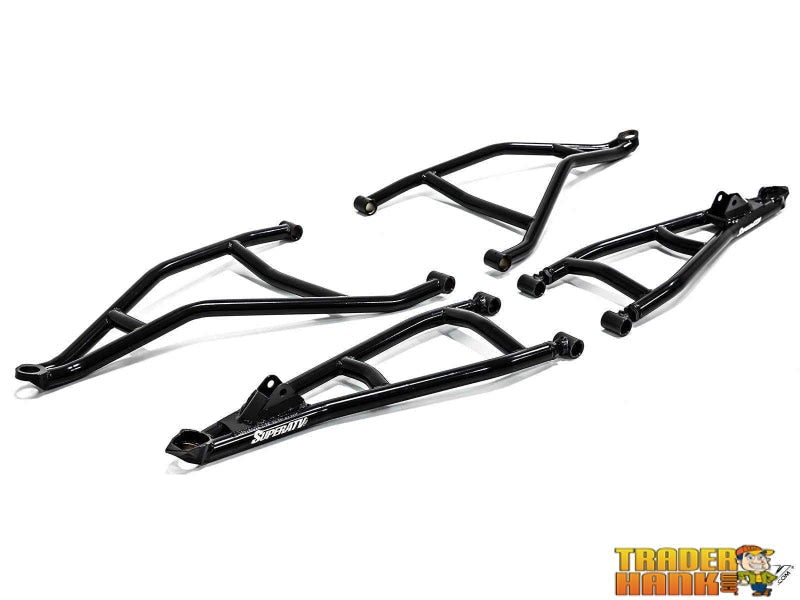

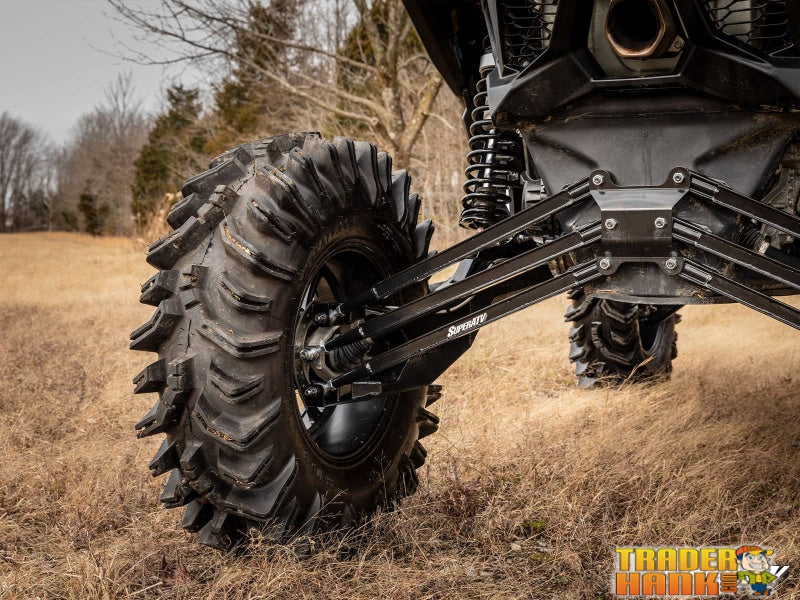

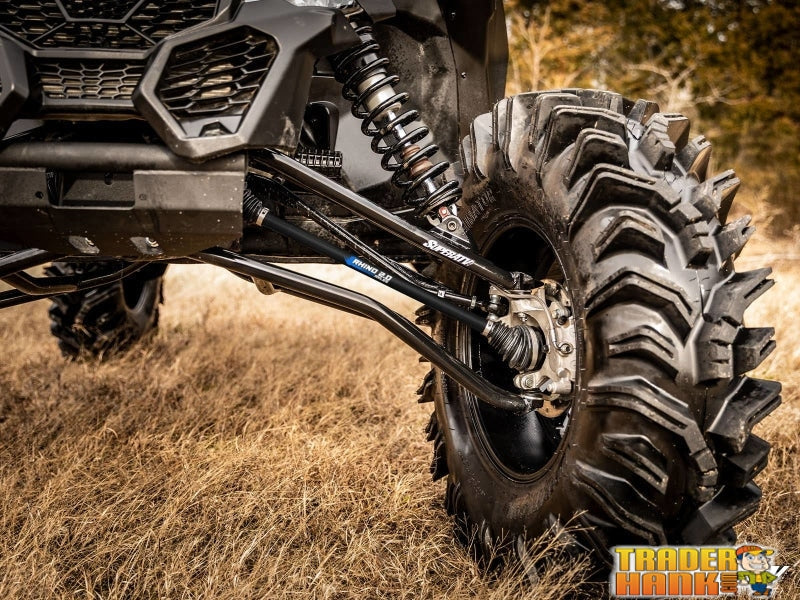

The front A-arms are made from 1-1/4-inch chromoly tubing with extra-tall design for 1-1/2 inches of added clearance. They come with pre-set pivot blocks so you don't have to mess with camber alignment—bolt it on and go. Out back, the trailing and radius arms use heavy 1/8-inch steel plating to stand up to serious abuse on rocky and rough ground.

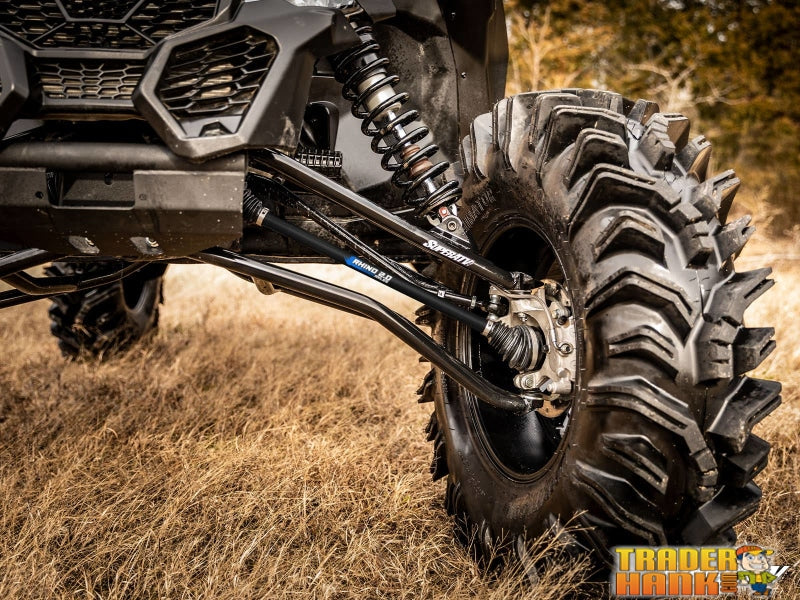

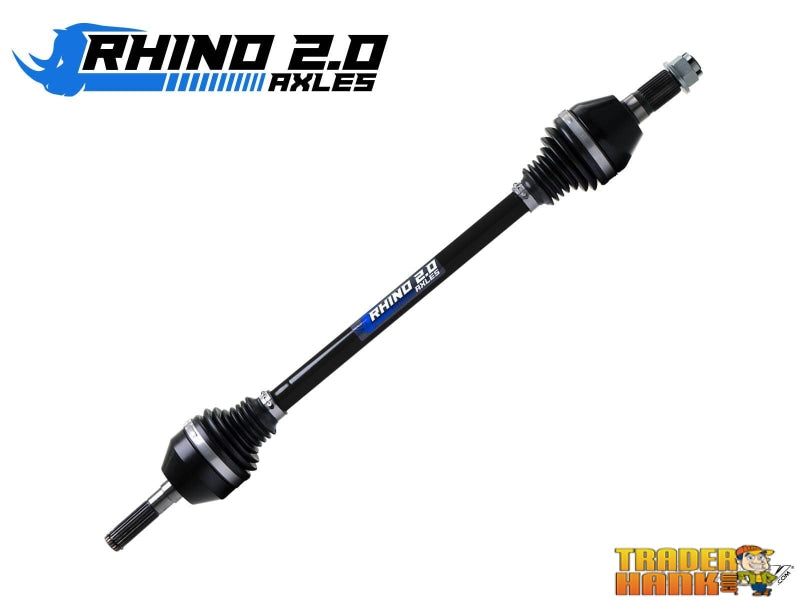

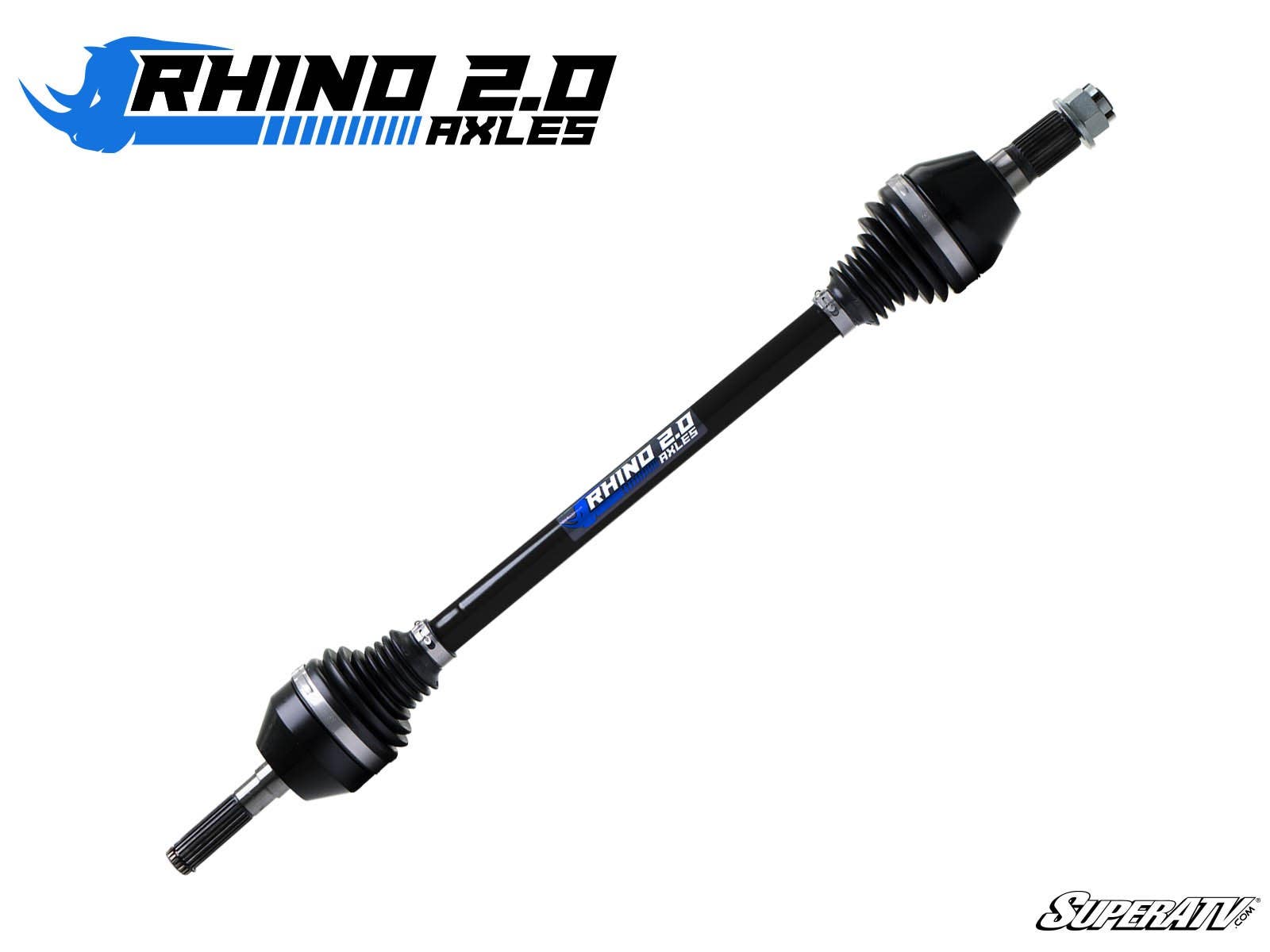

This kit rolls on SuperATV's Rhino 2.0 axles—full chromoly construction end to end with oversized CV joints. They handle extreme flex angles without overheating or binding, which means you get the articulation you need without worrying about failure.

Warranty You Can Count On

Every suspension piece in this kit—A-arms, tie rods, trailing arms, radius arms, and brackets—carries a Lifetime Warranty. Ride hard and ride however you want; we've got you covered.

What Fits What

• Can-Am Maverick X3 900: 2018
• Can-Am Maverick X3 Turbo: 2017–2020
• Can-Am Maverick X3 Turbo R: 2018–2020
• Can-Am Maverick X3 DS Turbo R: 2021
• Can-Am Maverick X3 DS Turbo 64: 2022+
• Can-Am Maverick X3 DS Turbo RR 64: 2022+
• Can-Am Maverick X3 X DS Turbo R: 2017–2020
• Can-Am Maverick X3 X DS Turbo RR: 2020–2021
• Can-Am Maverick X3 X DS Turbo RR 64: 2022+
• Can-Am Maverick X3 X MR Turbo: 2018–2021
• Can-Am Maverick X3 X MR Turbo RR 64: 2022+
• Can-Am Maverick X3 X RC Turbo RR 64: 2022+
• Can-Am Maverick X3 MAX Turbo: 2017–2020
• Can-Am Maverick X3 MAX Turbo R: 2018–2020
• Can-Am Maverick X3 MAX DS Turbo R: 2021
• Can-Am Maverick X3 MAX DS Turbo 64: 2022+
• Can-Am Maverick X3 MAX DS Turbo RR 64: 2022+
• Can-Am Maverick X3 MAX X DS Turbo: 2017–2019
• Can-Am Maverick X3 MAX X DS Turbo R: 2020
• Can-Am Maverick X3 MAX X DS Turbo RR 64: 2022+

Important Notes

• Does NOT fit X RS or 72 models
• You'll need 1-inch wheel spacers if you keep your stock wheels on
• The front sway bar and its links won't reinstall with this lift

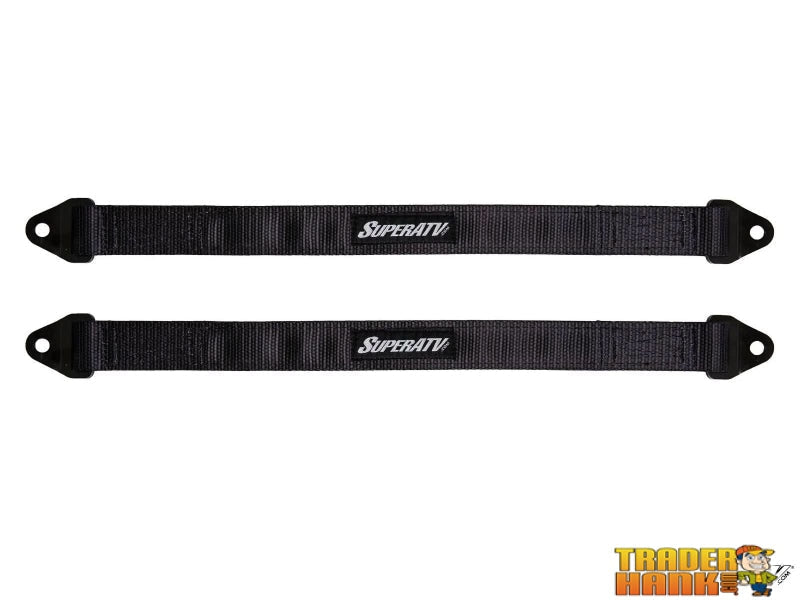

• With OEM ball joints, a 28 or 30-degree limit strap is required
• With SuperATV ball joints, a 26-degree limit strap is required
