Denali Standard Series Snow Plow Kit - Polaris Ranger XP 1000

SKU: CFG_StdPlow

Price:
Sale price$129.99
Free Shipping - Side by Side Stuff
https://cdn.shopify.com/s/files/1/1848/0573/files/TraderHank_Open_Now_1024x1024.png?v=1639965663
UTV Parts Questions - Text Us

Description

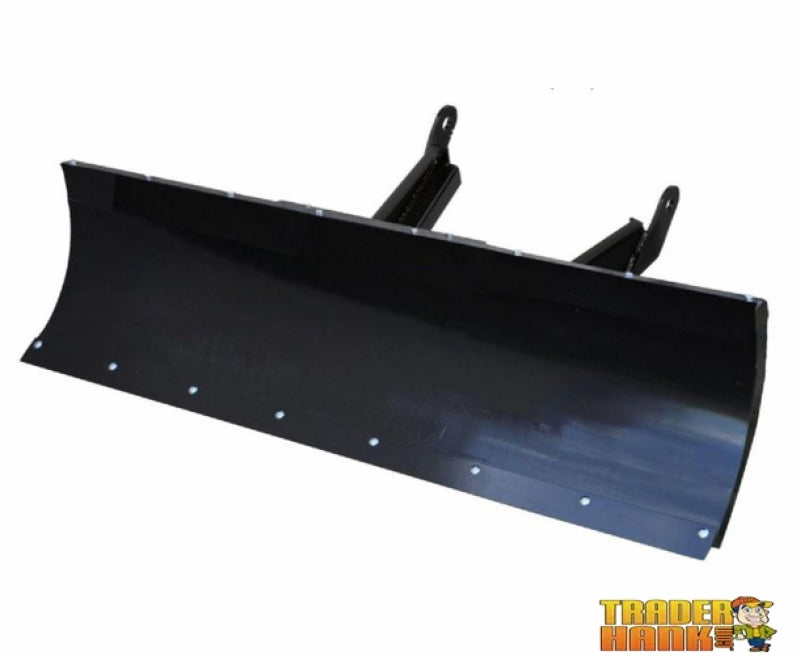

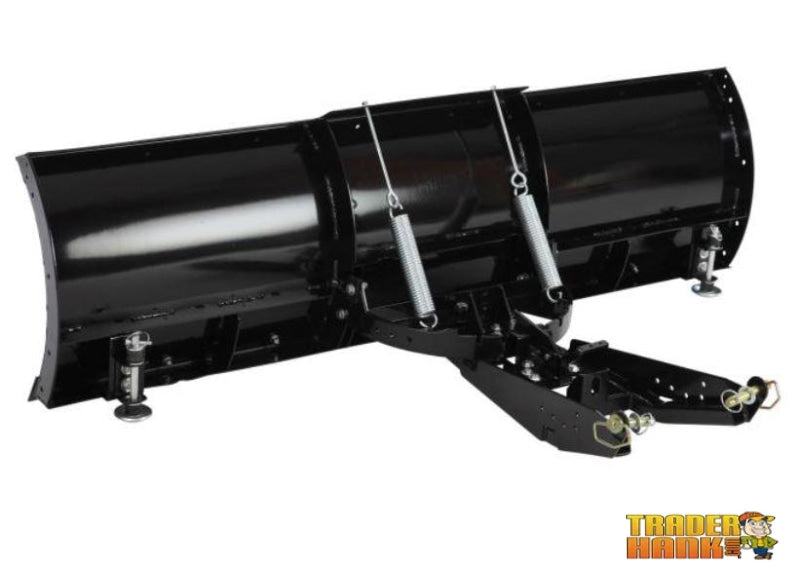

Denali Standard Series Snow Plow Kit - Polaris Ranger XP 1000

DENALI Standard Series ATV/UTV Snow Plows are made to handle the toughest conditions including sand, snow, and ice. The "Easy-Connect" design created by MotoAlliance engineers makes attaching and detaching the plow an extremely easy process. This Center Mounted plow disperses the force of impact to the sturdiest part of the UTV / SxS, preventing damage to the front end or other vehicle parts from sudden impact.

Please Note: all DENALI UTV Plow Systems require a winch (not included) to raise and lower the plow blade. We recommend a VIPER Elite, Max or Midnight winch with an automatic brake.

Kit Contents:

  • UTV Snow Plow Blade - Straight
  • Plow Mount - MA11704
  • Pushtubes
  • Wearbar
  • Skid Feet
  • Installation Hardware and Instructions

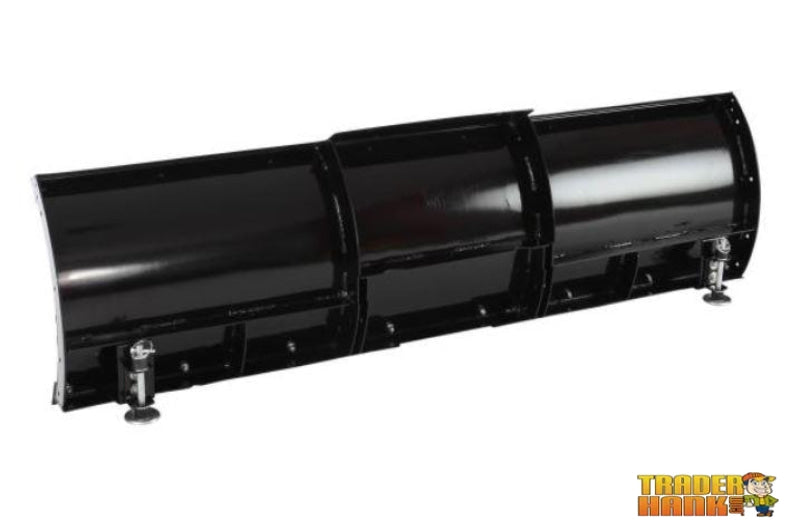

Blade Features:

  • Snow Plow Blade (19 inches scoop) and leading horizontal supports are formed from a single piece of 11 gauge steel
  • Four 7 gauge ribs run the full height of the blade
  • Three additional 7 gauge horizontal stabilizers support the deepest point of the blade
  • 65° attack angle and over center design ensures snow rolls up and is thrown forward
  • Replaceable 7gauge steel wear bar included with every kit
  • Height and angle adjustable skid feet included
  • 3 Year Warranty

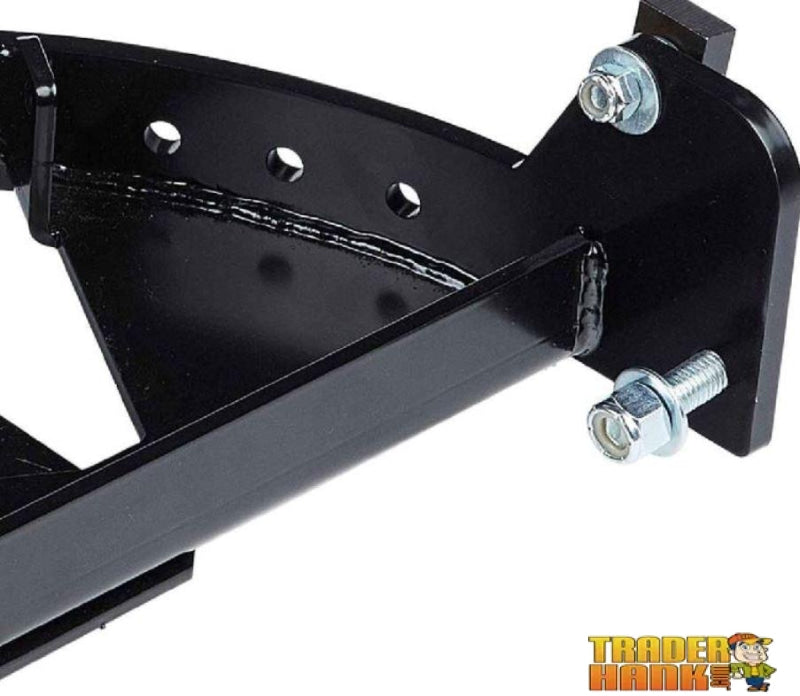

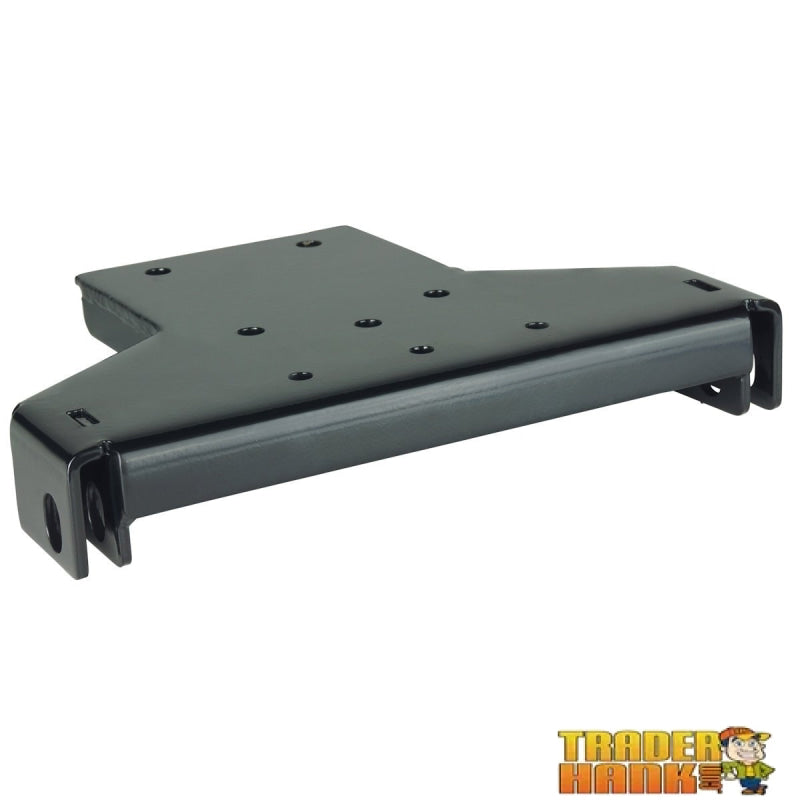

Plow Mount Features:

  • 100% laser cut 1/4" steel
  • Slotted holes allow blade to hug the ground
  • Black, industrial powder coat finish

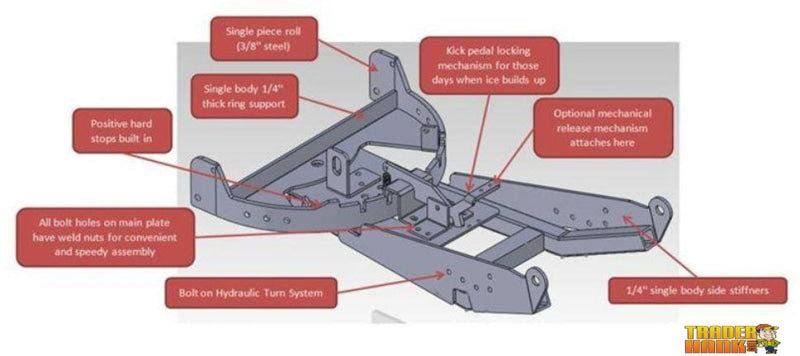

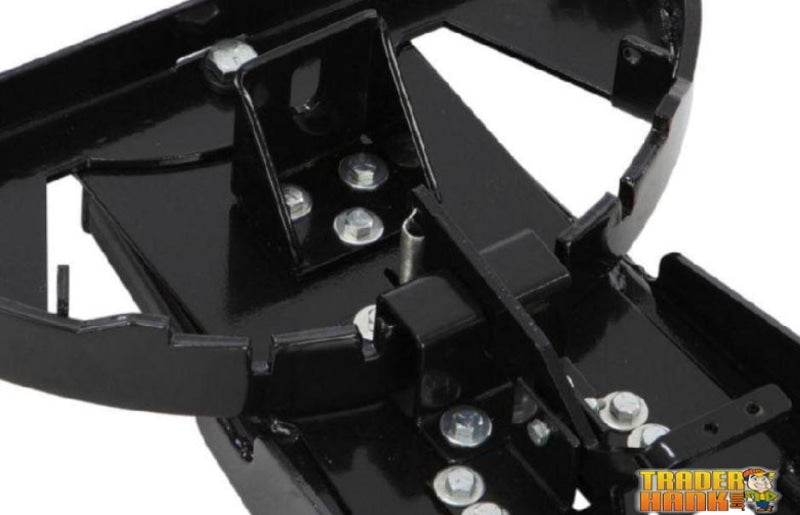

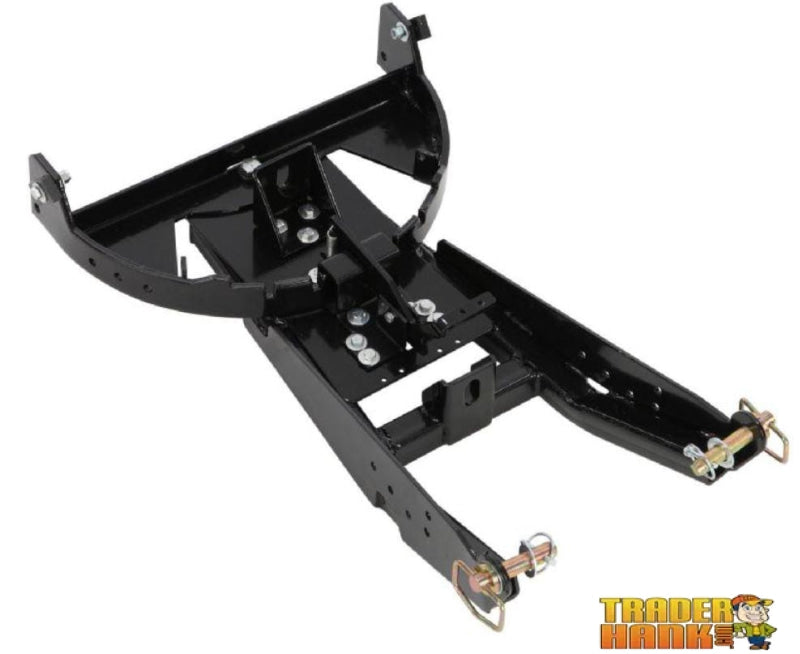

Pushtube and Lift Kit Features:

  • Impact Resistant Reinforced Pivot Assembly - 2 additional support bars for maximum durability & strength
  • Turn system allows you to easily position your plow in 10 different angles - 0, 12.5°, 25°
  • Simple detachment system with the pull of a pin
  • Structural tube steel cross bar for added lateral rigidity
  • Quick Release Pins included
  • 13.5 inches center to center for plow mount tabs
  • Extended Push Tubes are designed to be used with SxS/UTVs that have tra
  • Standard Pushtubes are designed for used with SxS/UTVs NOT fitted with tracks
  • Pushtube Lift Kits bolt directly to the pushtubes, providing 2 or 4 inches of lift
    • Pushtube Lift Kits bolt directly to the pushtubes, providing 2 or 4 inches of lift
    • Pushtube Lift Kits allow plow installation on machines with skid plates, 13”-15” and 15”-17” off the ground
  • Extended Push Tubes are designed to be used with SxS/UTVs that have tracks
  • PLEASE NOTE: Extended Pushtubes is not compatible with the Hydraulic Lift System

Optional Hydroturn Features:

  • Hydraulic system is completely sealed for life, no need to purchase hydraulic fluid, bleed lines, maintain a reservoir level or change the fluid
  • Change the blade angle while driving; full radius turn in just 5 seconds
  • Heavy duty chrome plated ¾″ cylinder shaft
  • No modifications necessary - bolts directly to the Denali UTV Plow Push Tubes
  • Wire harness utilizes weatherproof connectors
  • PLEASE NOTE: Extended Pushtubes is not compatible with the Hydraulic Lift System

Optional Plow Pulley Fairlead Features:

Roller:

  • Replaces the winch fairlead during the plow season
  • For use with Steel AND Synthetic cables
  • Curved cable groove helps eliminate flattening and breaking of cable
  • Bolt Patterns:
Standard Spool: 3″ x 4.875″
Wide Spool: 3″ x 6.67″

Sheave
  • Includes pulley, 1/4″ clevis hook and nylon strap
  • Allows greater precision when raising/lowering plow blade and increases the angle of pull

Cable

  • 12′ length, 1/4″ diameter
  • Single braid, dyneema rope with galvanized steel thimble/eyelet

Denali Standard Series Snow Plow Kit - Polaris Ranger XP 1000 Installation Instructions Click to view Installation Instructions

Fitment

Fitment Details
  • 2017-2020 Polaris Ranger 1000 XP
  • 2017-2020 Polaris Ranger 1000 XP Crew
  • 2015-2018 Polaris Ranger 1000 Diesel
  • 2016-2018 Polaris Ranger 1000 Diesel Crew
  • 2019-2020 Polaris Ranger XP 1000 Northstar
