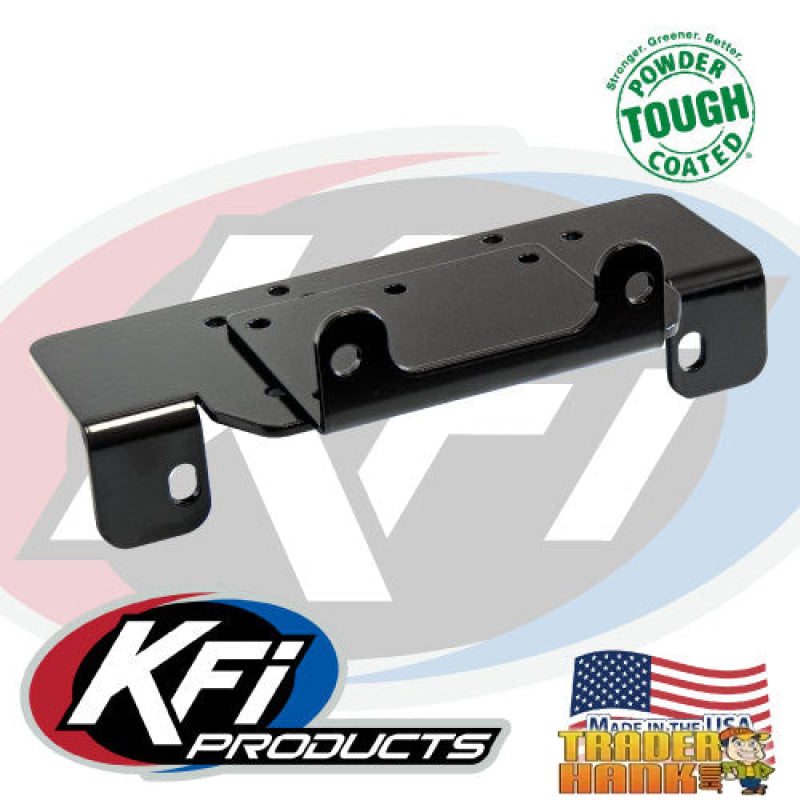

Description
Specifications:
- 100% MADE IN USA.
- Constructed of 3/16" steel.
- Includes standard roller fairlead bracket.
- Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder coated black for supreme durability.
- Very easy to install.
- Complete installation instructions included.
- All mounting hardware included.
- Satisfaction guaranteed.
- Roller fairlead and winch (optional).
Winch Details:
Whether it’s on a winding trail, plowing snow or deep in the mud, a reliable winch is the most important accessory a rider can have. Equip your ATV, UTV, or SxS with a KFI WINCH and feel confident you can pull yourself out of any situation. The compact 4500lb ATV/UTV Series winches feature quality cast aluminum and durable steel components, water resistant seals to keep the elements out, a standard 4-hole mounting design and a heavy duty, all metal turn clutch. All of the KFI winches are backed by a 1-year Limited Warranty and come with everything you need other than an ATV/UTV model specific winch mount. Everything is included along with detailed installation instructions and hardware to mount your winch to a model specific ATV/UTV winch mount.
| U45-R2 Specifications | |
| Model | U4500 UTV Series |
| Rated Line Pull | 4500 lbs. |
| Motor | 12V DC, 1.7 hp Permanent Magnet |
| Gear Ratio | 166:1 |
| Gear/Transmission | All-metal Planetary Gear Drive |
| Brake | Dynamic and Mechanical |
| Clutch (free spooling) | All Metal Cam Activated Freespool |
| Drum Size | 2" (D) x 3.18" (L) |
| Cable | 15/64" (D) x 38' (L) |
| Fairlead | Multi-directional Roller |
| Control | Deluxe Dash Mounted Control Switch and a Heavy Duty Corded Remote Switch |
| Winch Dimensions | 14.6" L x 4.55" D x 5" H |
| Mount Plate | Fairlead Mount Only (A Model Specific Mount is necessary for your make and model UTV) |
| Mounting Bolt Pattern | 3.00" x 4.875" (4-Hole) |
| Recommended Battery | 12 Amp/hour minimum |
| Warranty | Limited 1 Year |
| Winch Weight | 36.6 lbs. (complete kit) |
| Certification | CE Certified |
