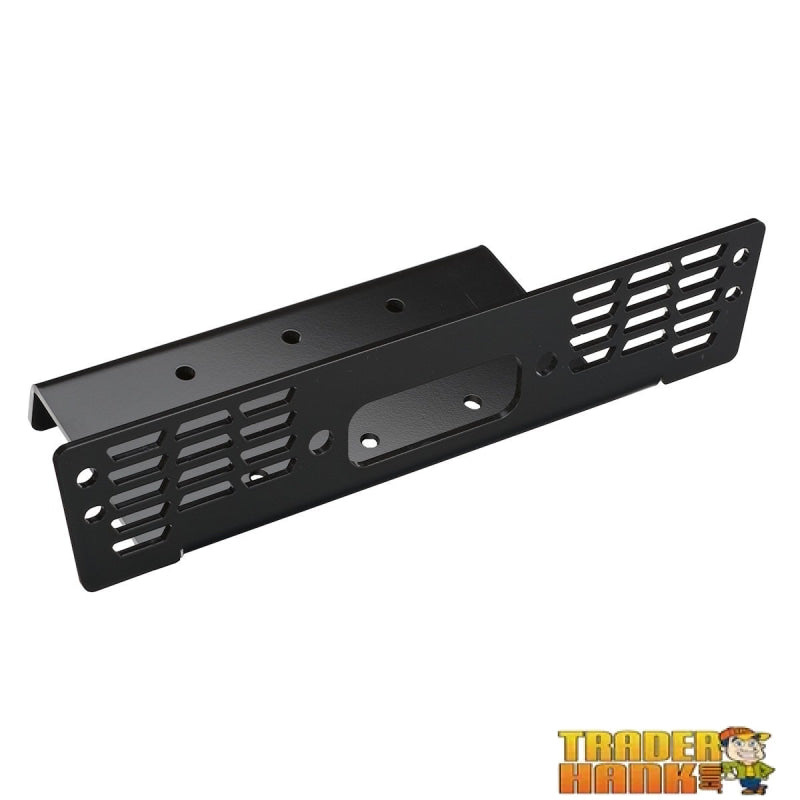

Polaris Ranger Viper UTV Winch Mount Plate

Our VIPER winch mounts are laser cut and shaped to exacting specifications. Using state of the art computerized equipment we provide a precise and custom fit for your UTV. Winch mount plates are also designed to utilize the strength of your UTV's frame to optimize winching efficiency.

Features:
• Black industrial powder coat finish
• Includes mounting hardware and detailed instructions

Fitment:
MA11900S

  • for use with STANDARD SPOOL Winches ONLY
  • 2009-2014 Ranger HD
  • 2011-2014 Ranger Diesel
  • 2009-2010 Full Size Ranger 500 4x4
  • 2009          Full Size Ranger 700 4x4
  • 2010-2014 Full Size Ranger 800 4x4
  • 2010-2014 Full Size Ranger 800 4x4 Crew**
  • 2010-2017 Full Size Ranger 800 6x6
  • Please Note: will NOT work with the Full Size Ranger XP 900 or Full Size Ranger XP 900 Crew
  • For use with the standard spool, 4-bolt mounting pattern (3" x 4 7/8")


MA11900W

  • for use with WIDE SPOOL Winches ONLY
  • 2009-2014 Ranger HD
  • 2011-2014 Ranger Diesel
  • 2009-2010 Full Size Ranger 500 4x4
  • 2009          Full Size Ranger 700 4x4
  • 2010-2014 Full Size Ranger 800 4x4
  • 2010-2014 Full Size Ranger 800 4x4 Crew**
  • 2010-2017 Full Size Ranger 800 6x6
  • Please Note: will NOT work with the Full Size Ranger XP 900 or Full Size Ranger XP 900 Crew
  • For use with the wide spool, 4-bolt mounting pattern (3" x 6.67")


MA11900_SD Scratch and Dent Winch Mount (Hardware may not be included or complete.)

  • 2009-2014 Ranger HD
  • 2011-2014 Ranger Diesel
  • 2009-2010 Full Size Ranger 500 4x4
  • 2009          Full Size Ranger 700 4x4
  • 2010-2014 Full Size Ranger 800 4x4
  • 2010-2014 Full Size Ranger 800 4x4 Crew**
  • 2010-2017 Full Size Ranger 800 6x6
  • Please Note: will NOT work with the Full Size Ranger XP 900 or Full Size Ranger XP 900 Crew
  • For use with the standard spool, 4-bolt mounting pattern (3" x 4 7/8")
  • ** for optimized installation an Extended Wiring Kit to reach the battery is recommended.


MA11901-

  • 2010-2019 Midsize Ranger EVs
  • 2015-2017 Midsize Ranger EXTs
  • 2010-2014 Midsize Ranger 400
  • 2011-2020 Midsize Ranger 500
  • 2011-2013 Midsize Ranger 500 Crew **
  • 2014-2020 Midsize Ranger 570
  • 2014-2020 Midsize Ranger 570 Crew **
  • 2013-2014 Midsize Ranger 800
  • 2016-2020 Full Size Ranger 570 (Round Tube Roll Cage)
  • 2016-2020 Full Size Ranger 570 Crew (Round Tube Roll Cage) **
  • 2011-2014 Full Size Ranger Diesel (900) 4x4
  • 2013-2014 Full Size Ranger Diesel (900) 4x4 Crew **
  • Please Note: Electric Vehicles with an output voltage of greater than 12 Volts, a voltage transformer system must be implemented prior to using a winch. Failure to do so may result in damage to the battery system and/or winch.
  • ** for optimized installation an Extended Wiring Kit to reach the battery is recommended.
  • For use with the standard (3" x 4 7/8") and wide (3" x 6.67") spool, 4-bolt mounting pattern


MA11904-

  • 2015-2016 Full Size Ranger 570 (Channel Tube Roll Cage)
  • 2015-2016 Full Size Ranger 570 Crew (Channel Tube Roll Cage)**
  • 2013-2020 Full Size Ranger 900 4x4
  • 2014-2020 Full Size Ranger 900 4x4 Crew **
  • 2018-2021 Full Size Ranger North Star Edition **
  • 2017-2021 Full Size Ranger 1000 XP (2021 only accepts a wide spool winch - 3" x 6.67" bolt pattern)
  • 2017-2021 Full Size Ranger 1000 Crew (2021 only accepts a wide spool winch - 3" x 6.67" bolt pattern) **
  • 2015-2018 Full Size Ranger 1000 Diesel (2021 only accepts a wide spool winch - 3" x 6.67" bolt pattern)
  • 2016-2018 Full Size Ranger 1000 Diesel Crew (vonly accepts a wide spool winch - 3" x 6.67" bolt pattern)
  • ** for optimized installation an Extended Wiring Kit to reach the battery is recommended.
  • Please Note: Metal Grill Upgrade is included
  • For use with the standard (3" x 4 7/8") and wide (3" x 6.67") spool, 4-bolt mounting pattern
  • ** for optimized installation an Extended Wiring Kit to reach the battery is recommended.


MA11907-

  • 2002-2008 Ranger 2x4, 4x4
  • 2002-2009 Ranger 6x6
  • 2004-2006 Ranger TM
  • 2005-2008 Ranger XP
  • 2008-2009 Ranger Crew
  • Please Note: a Universal Fairlead Mount plate is needed, and is included with all VIPER winch kits. If purchasing just this mount plate, the Universal Fairlead Mount Plate will need to also be purchased.
  • For use with the standard spool, 4-bolt mounting pattern (3" x 4 7/8")



MA11913-

  • All Rangers with an Extreme Bumper installed
  • Please Note: does NOT fit 2013-2015 Ranger 900 with Extreme Bumpers
  • For use with the standard(3" x 4 7/8") and wide (3" x 6.67") spool, 4-bolt mounting pattern

MA11913-SD

  • All Rangers with an Extreme Bumper installed
  • Please Note: does NOT fit 2013-2015 Ranger 900 with Extreme Bumpers
  • For use with the standard spool, 4-bolt mounting pattern (3" x 4 7/8") and wide spool, 4-bolt mounting pattern (3" x 6.67")
