Polaris RZR 4 900 RackBoss 2.0 Rack and Pinion

SKU: HDRP-P-RZR900S-002#NH

Tie Rod Type: Solid Steel Bar
RackBoss Option: RackBoss 2.0
Price:
Sale price$499.95

Free Shipping - Lower 48 States

Free Shipping - Side by Side Stuff
UTV Parts Questions - Text Us

Description

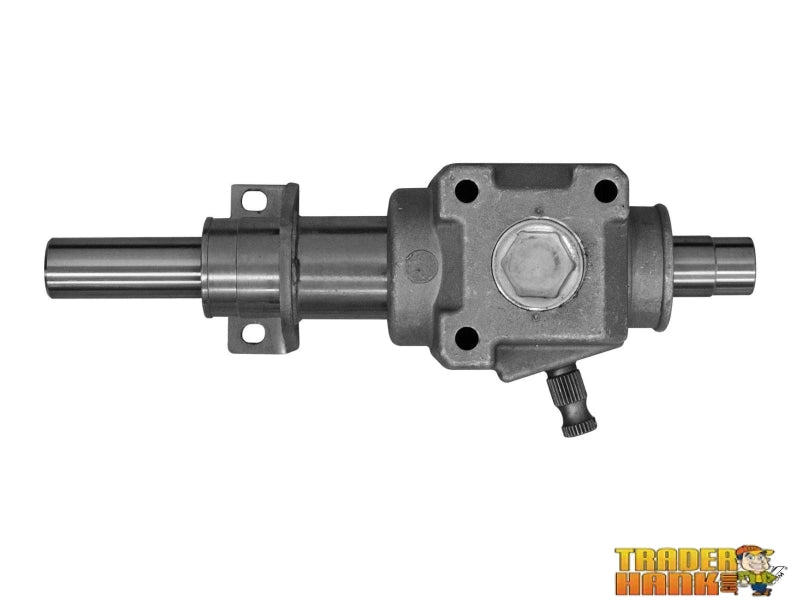

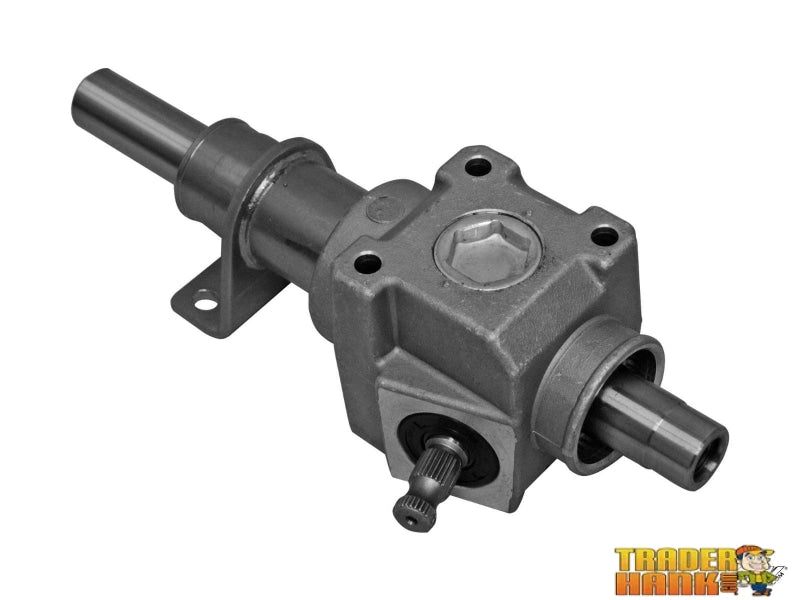

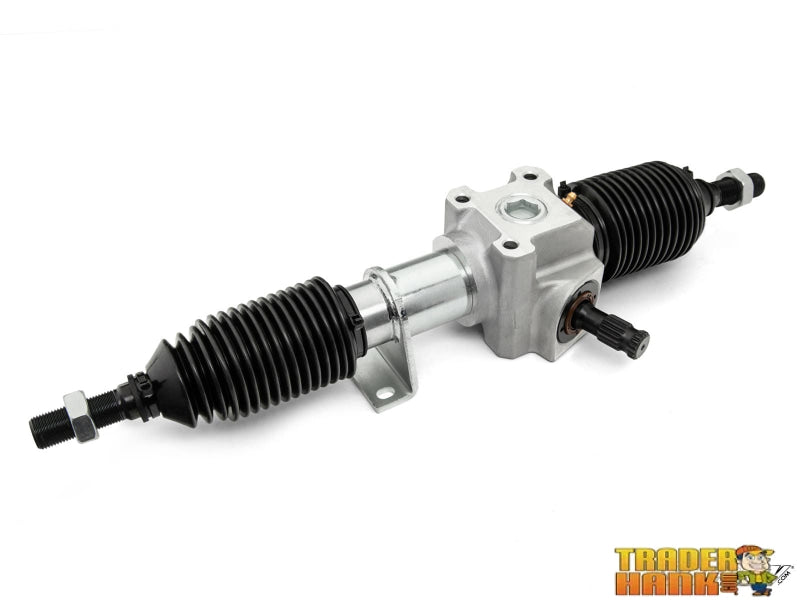

Polaris RZR 4 900 RackBoss 2.0 Rack and Pinion

RackBoss 2.0 Lasts Longer
No matter what rack you have, it's gonna wear out eventually. When it does, the sloppy steering will make it tough to control your RZR. That's why we made RackBoss 2.0. It's an evolution of our original RackBoss that uses X24 Tech to reduce wear by over 50%. Put SuperATV's RackBoss 2.0 Rack and Pinion on your Polaris RZR 900 to ride hard and get silly without ruining your steering system. It's built for big lifts, big tires, and treacherous rides.

Less Wear and Tear with Our Dual-Bushing Design

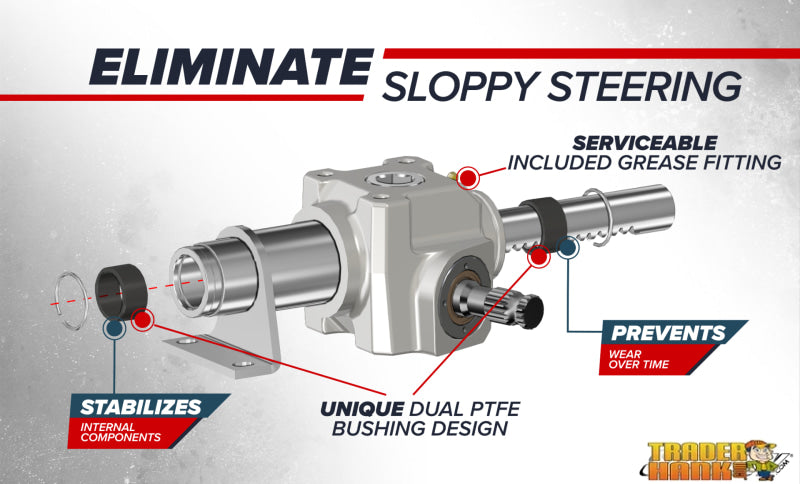

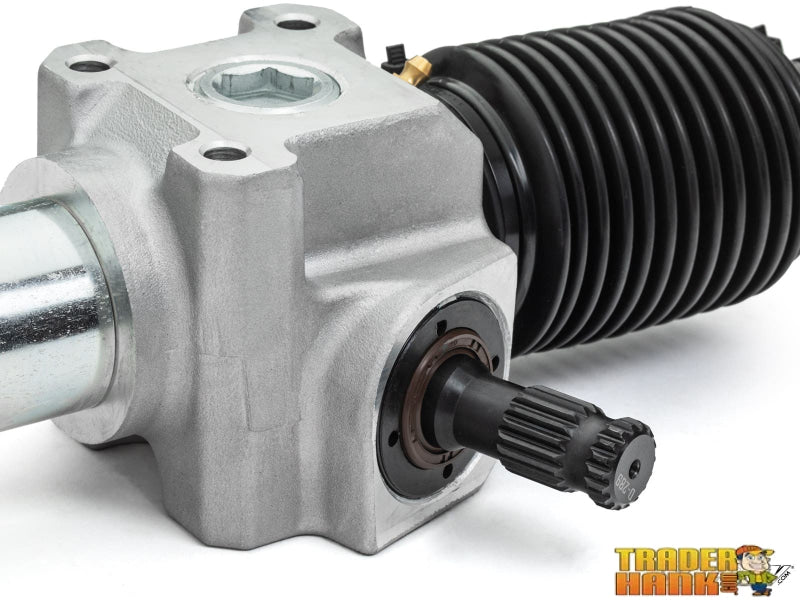

What makes RackBoss 2.0 so good at preventing slop? It's engineered with X24 Tech—heavy-duty PTFE bushings at both ends of the rack that remove play from the internals. Reducing play also keeps the tension spring nearly motionless. With little to no unintended internal movement, this rack can turn massive tires through heavy rides and hard hits and still stay in like-new condition for years longer than the next best rack. And with the built-in grease fitting, you can push fresh grease through after you go deep in mud or water.

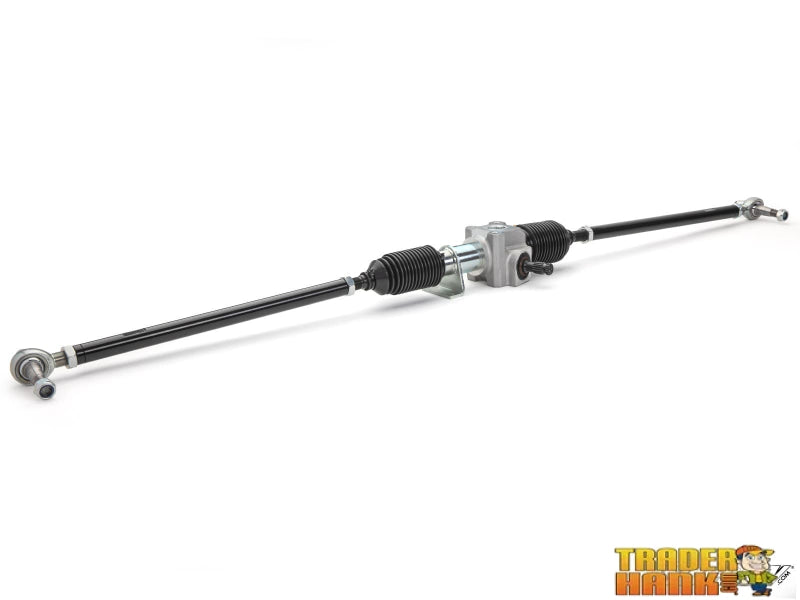

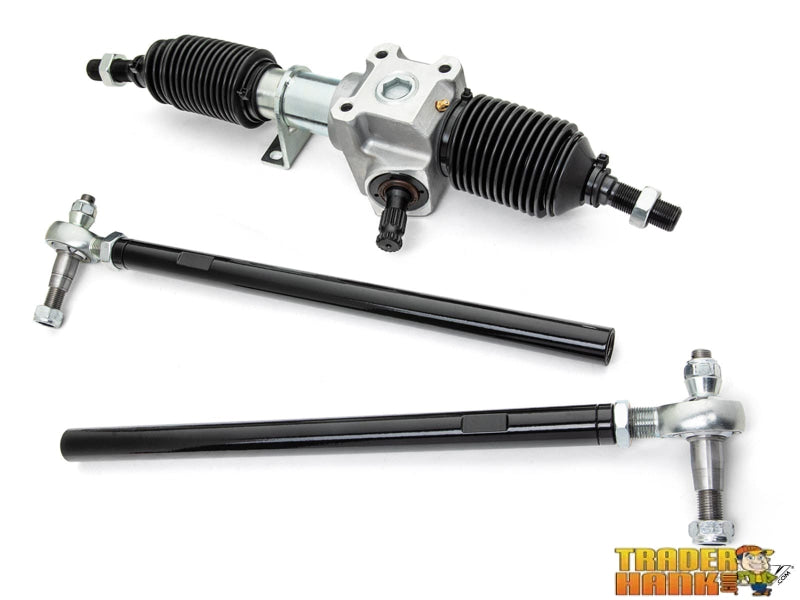

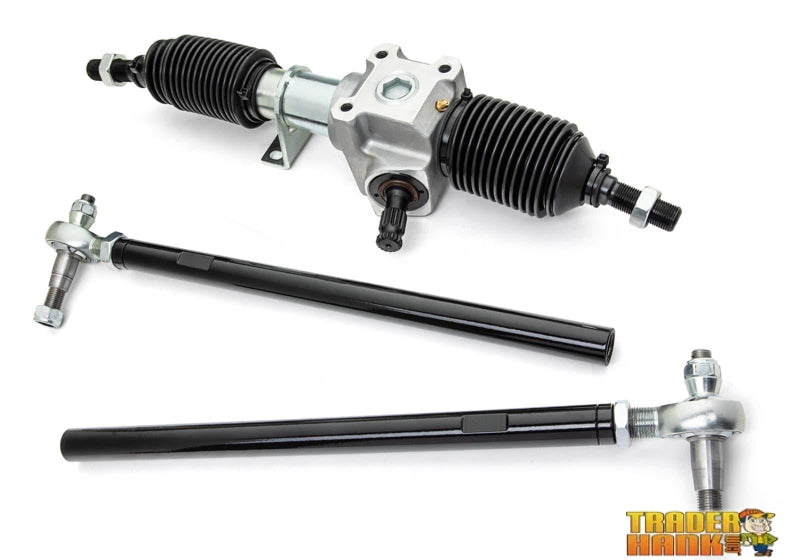

Solid Steel Bar Tie Rods

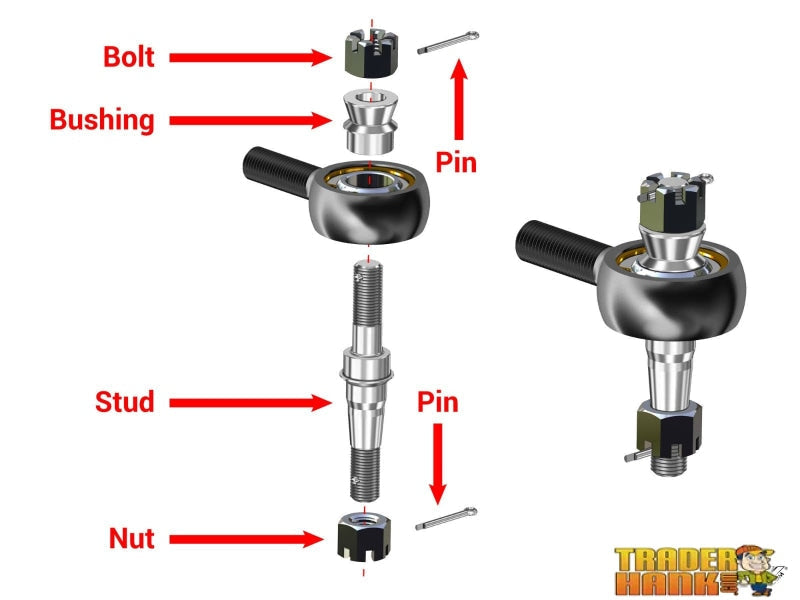

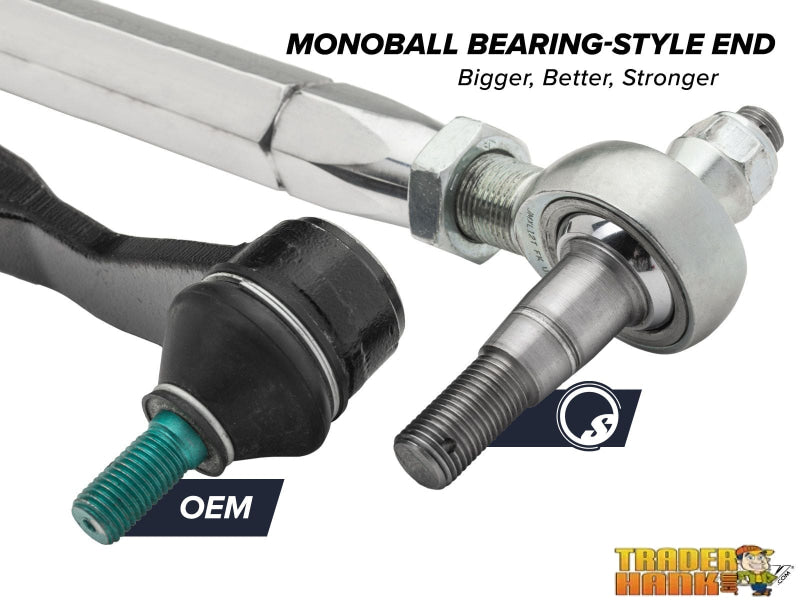

For a beefy tie rod setup, you want to go with solid steel bar tie rods. They're made with 1” diameter steel bars that are paired with bigger, better tie rods you'll love—3/4” outer heim joint tie rods and rebuildable inner tie rods that use 3/4” rod threads and 16 mm rack threads. Altogether, they're built for hard hits, big tires, and wild rides.

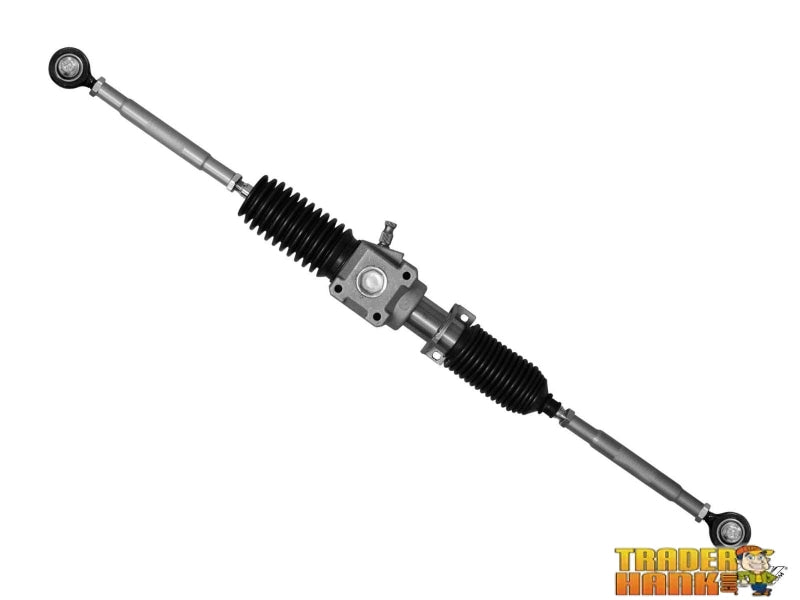

Swaged Tube Tie Rods
Our swaged tube tie rods are super sturdy but lightweight. The 7/8” diameter tubing flares out to boost its strength even more and comes paired with tougher tie rod ends. They have huge 16 mm rack threads and 14 mm rod threads that are the toughest you can get. This kit will keep you in control.

Looking for a More Traditional Rack?

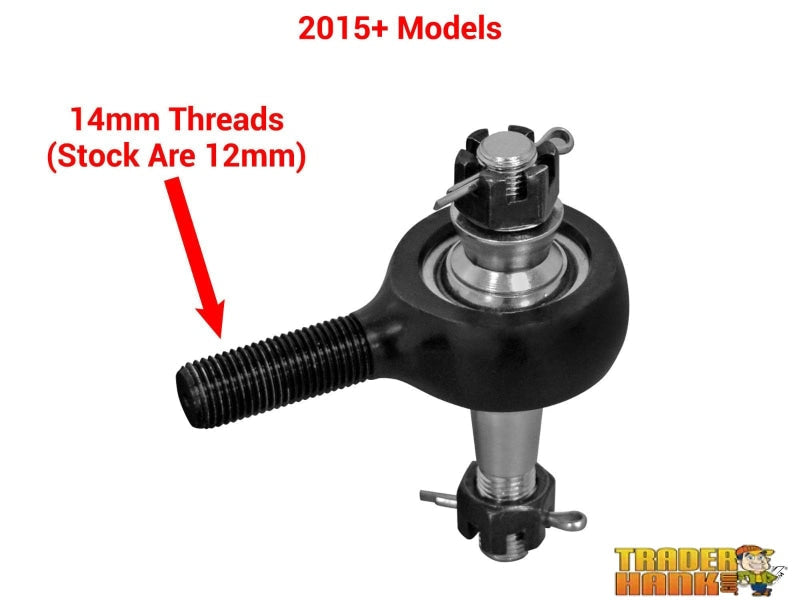

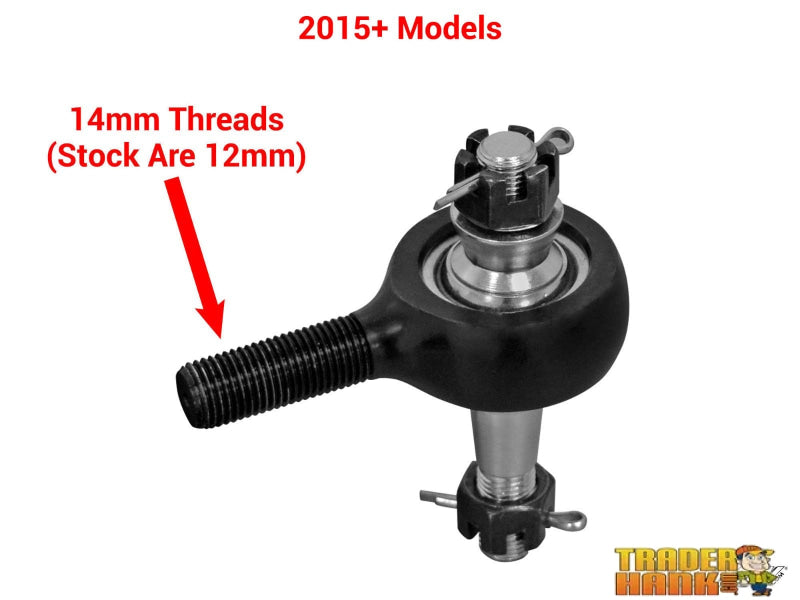

If you don't need all the benefits of a RackBoss 2.0, you can dial it back to our original, more traditional RackBoss 1.0. It uses the same beefy housing but doesn't include the extra PTFE bushing. Our RackBoss 1.0 Rack and Pinion comes with steel swaged tubes that are tougher than stock and perfect for casual riders looking for an upgrade. It's finished with our tough 14 mm inner and outer tie rod ends so you can ride harder without worry.

Patent No. 11,345,393

RackBoss 1.0 Swaged Tie Rod RackBoss 2.0 Swaged Tie Rod RackBoss 2.0 Solid Steel Tie Rod Price $349.95 $399.95 $499.95 X24 Tech Dual-Bushing Design ? ? Tie Rod Material Steel tube Steel tube Solid steel bar Inner Ball and Socket Thread Diameter 14 mm 14 mm rod threads, 16 mm rack threads 3/4” rod threads, 16 mm rack threads Outer Tie Rod End Thread Diameter 14 mm 14 mm 3/4” Greasable ? ? Inner Boots ? ? ? Steering Stop Kit ? ? ? Misalignment Bushings, Tie Rod Studs, & Hardware ? ? ?

Features

RackBoss 2.0 Features:
  • Heavy-duty dual PTFE bushings:
    • Designed with X24 Tech
    • Prevents wear
    • Reduces slop
    • Improves overall durability
  • Solid steel tie rods use:
    • 3/4” outer tie rod ends
    • Rebuildable inner tie rod ends that use 3/4” rod threads and 16 mm rack threads
  • Swaged tube tie rods use:
    • 14 mm outer tie rod ends
    • Rebuildable inner tie rod ends that use 14 mm rod threads and 16 mm rack threads
  • 65% larger housing than stock
  • Over 50% less wear than OEM after 15,000 cycles
  • Grease fitting for rack gears

RackBoss 1.0 Features:
  • Uses a single PTFE bushing
  • 65% larger housing than stock
  • Less wear than stock
  • Uses steel swaged tie rods
  • 14 mm inner and outer tie rod ends

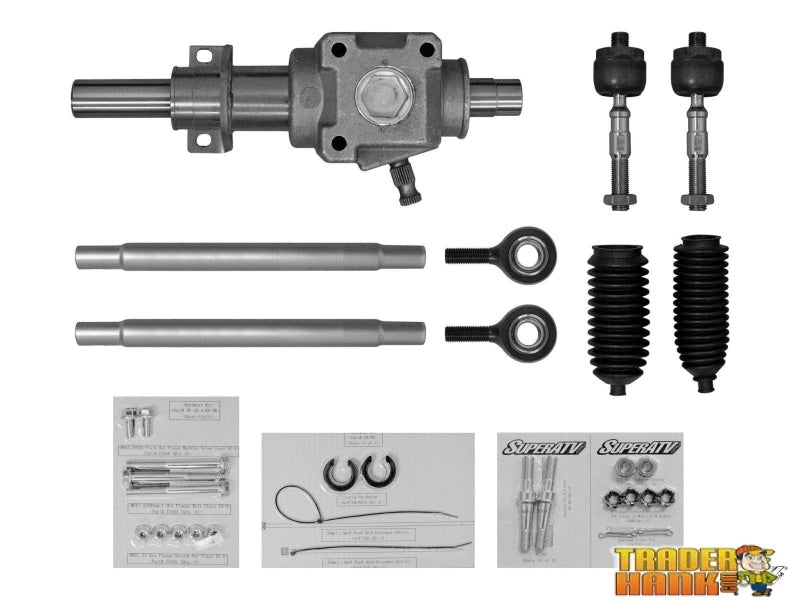

  • Includes all hardware and instructions

Fitment

Fitment Details
  • Polaris RZR 4 900 : 2015-2018
  • Polaris RZR S4 900 : 2018
Replaces OEM Part # : 1824349 and 1823994
