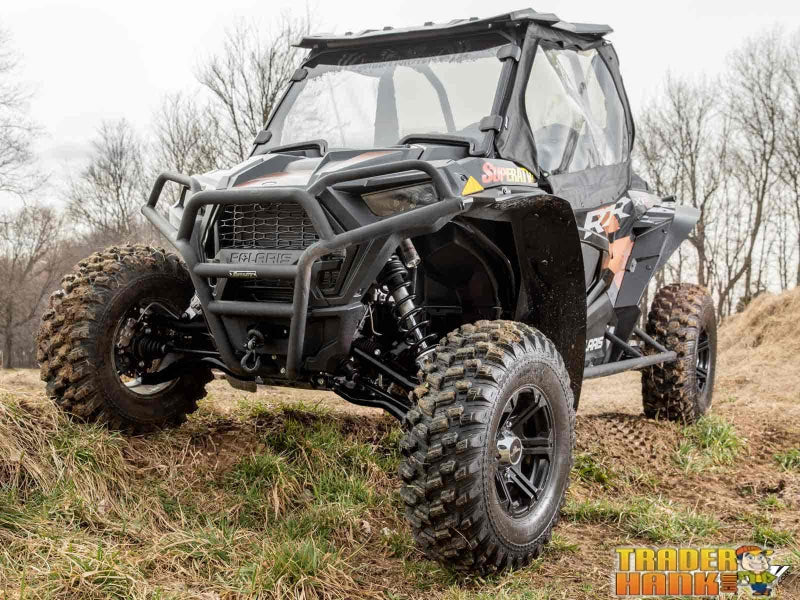

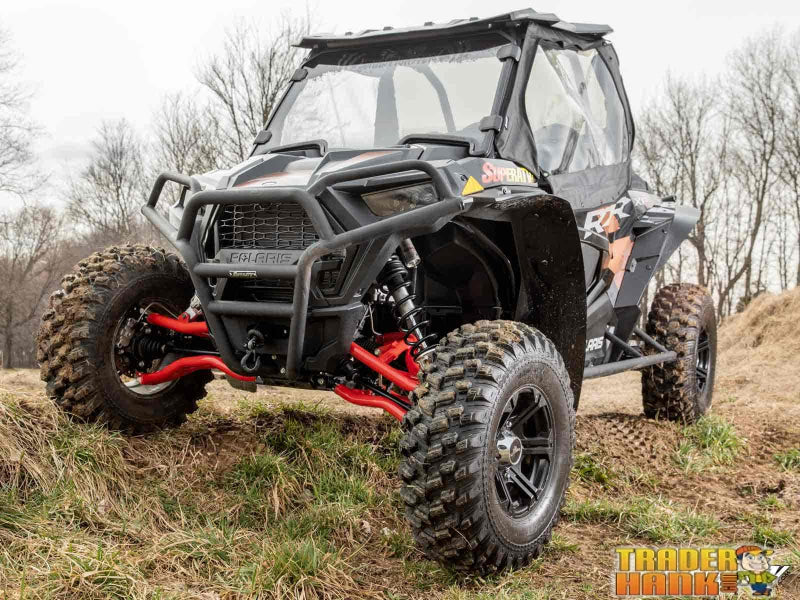

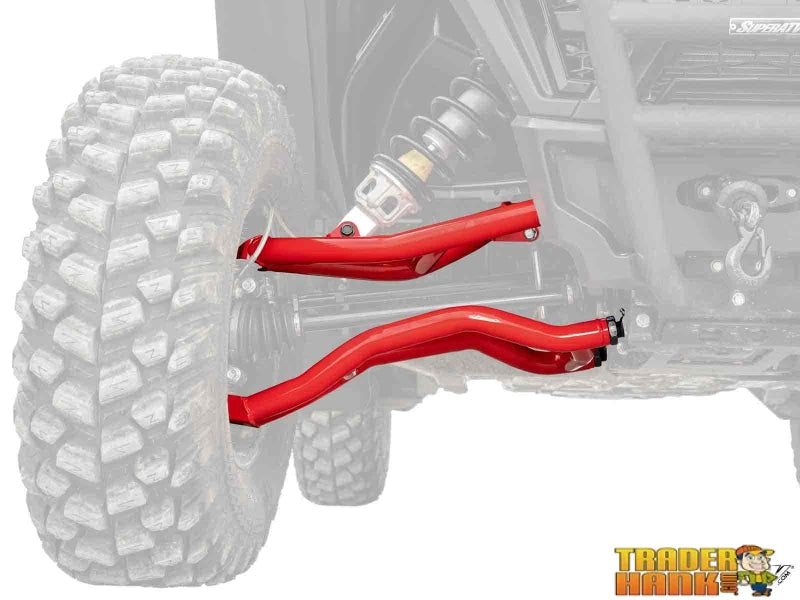

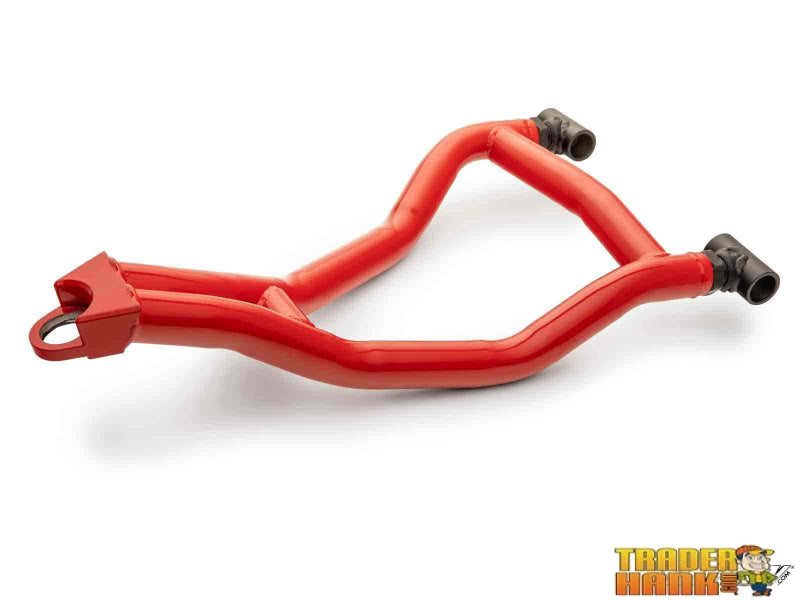

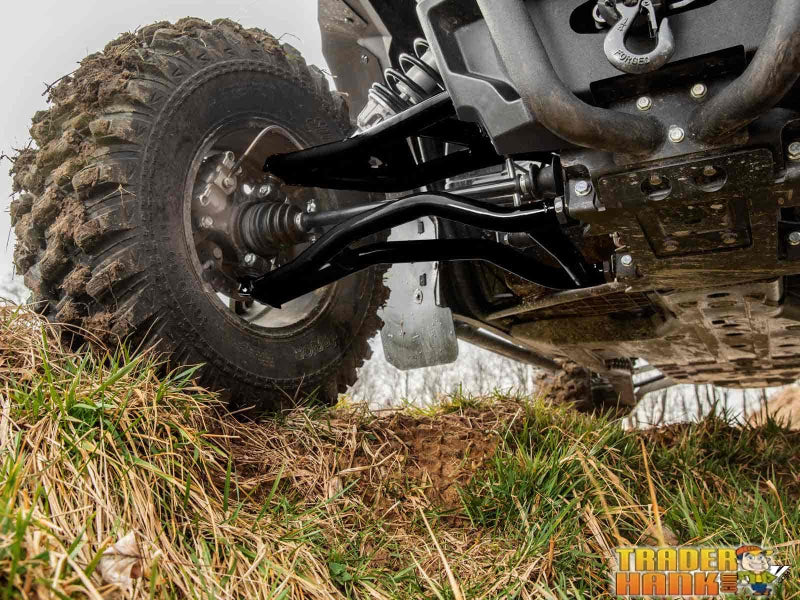

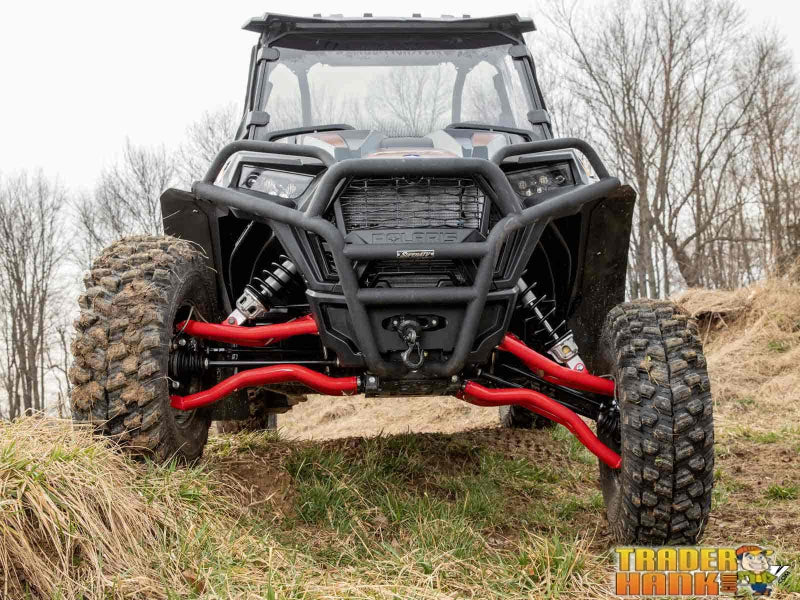

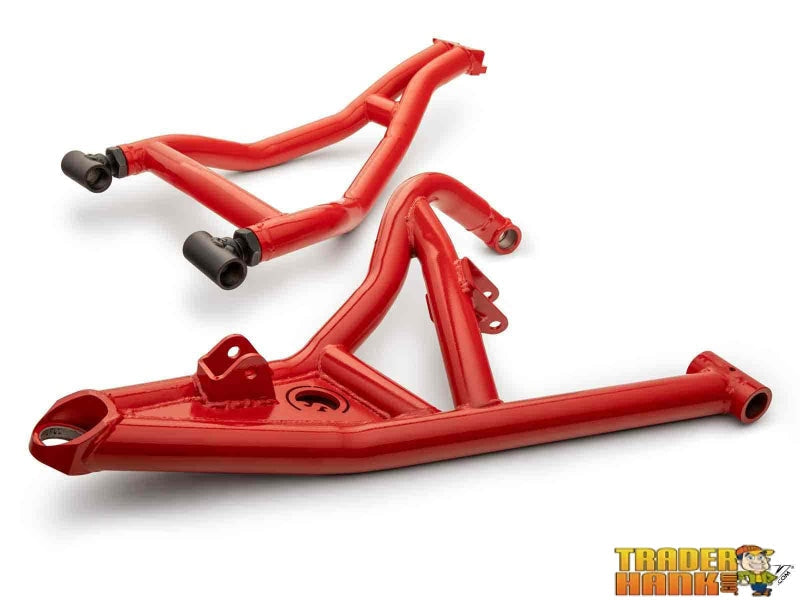

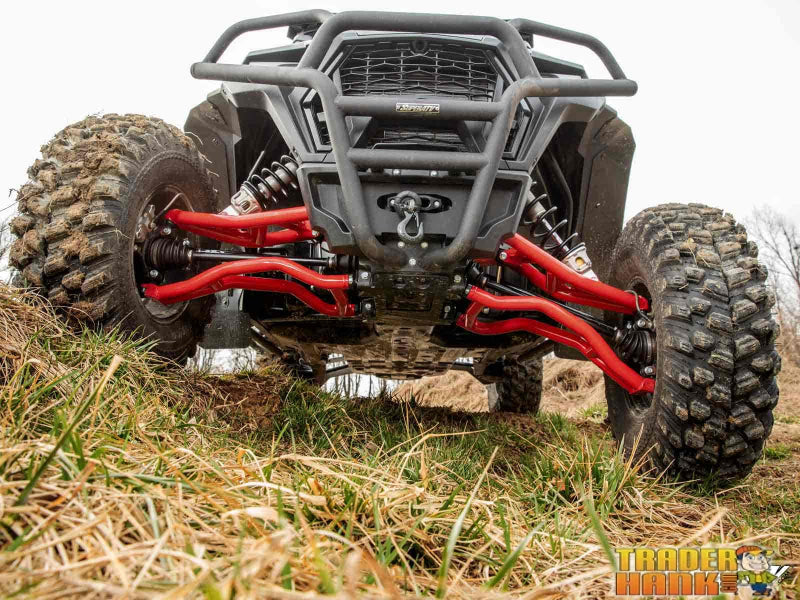

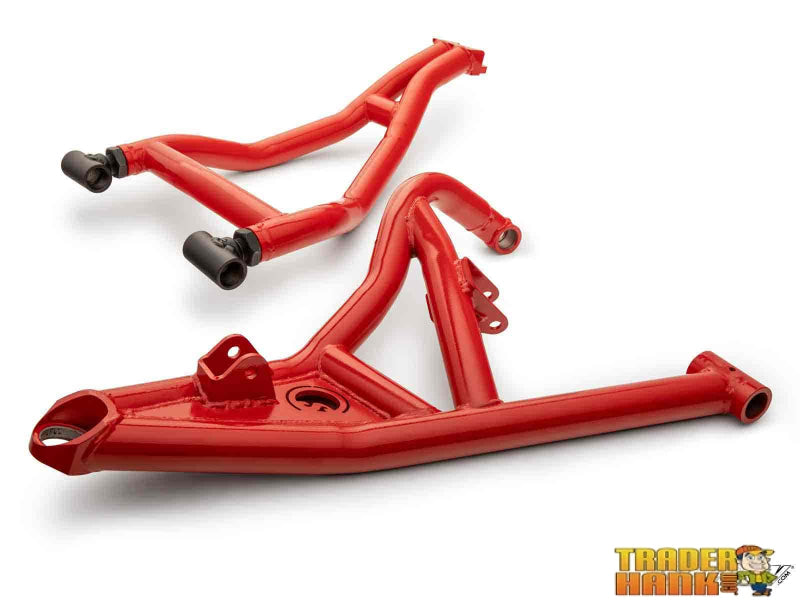

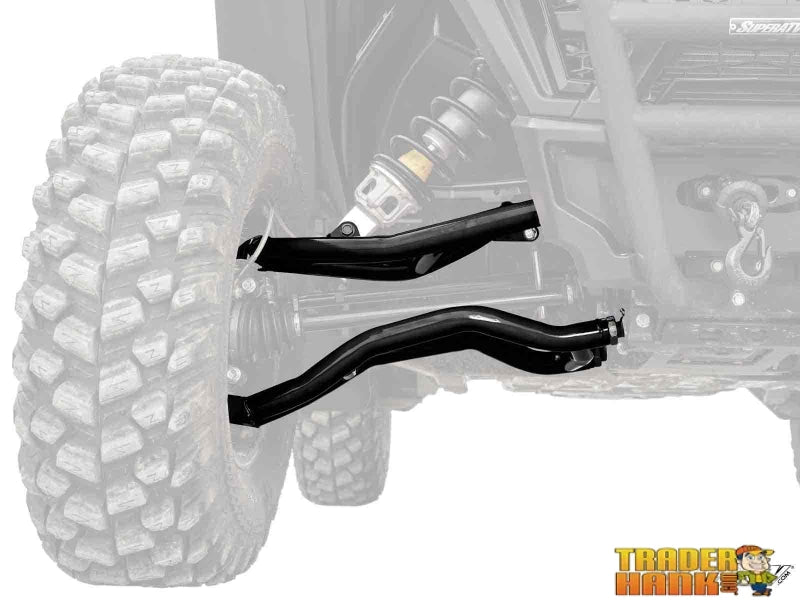

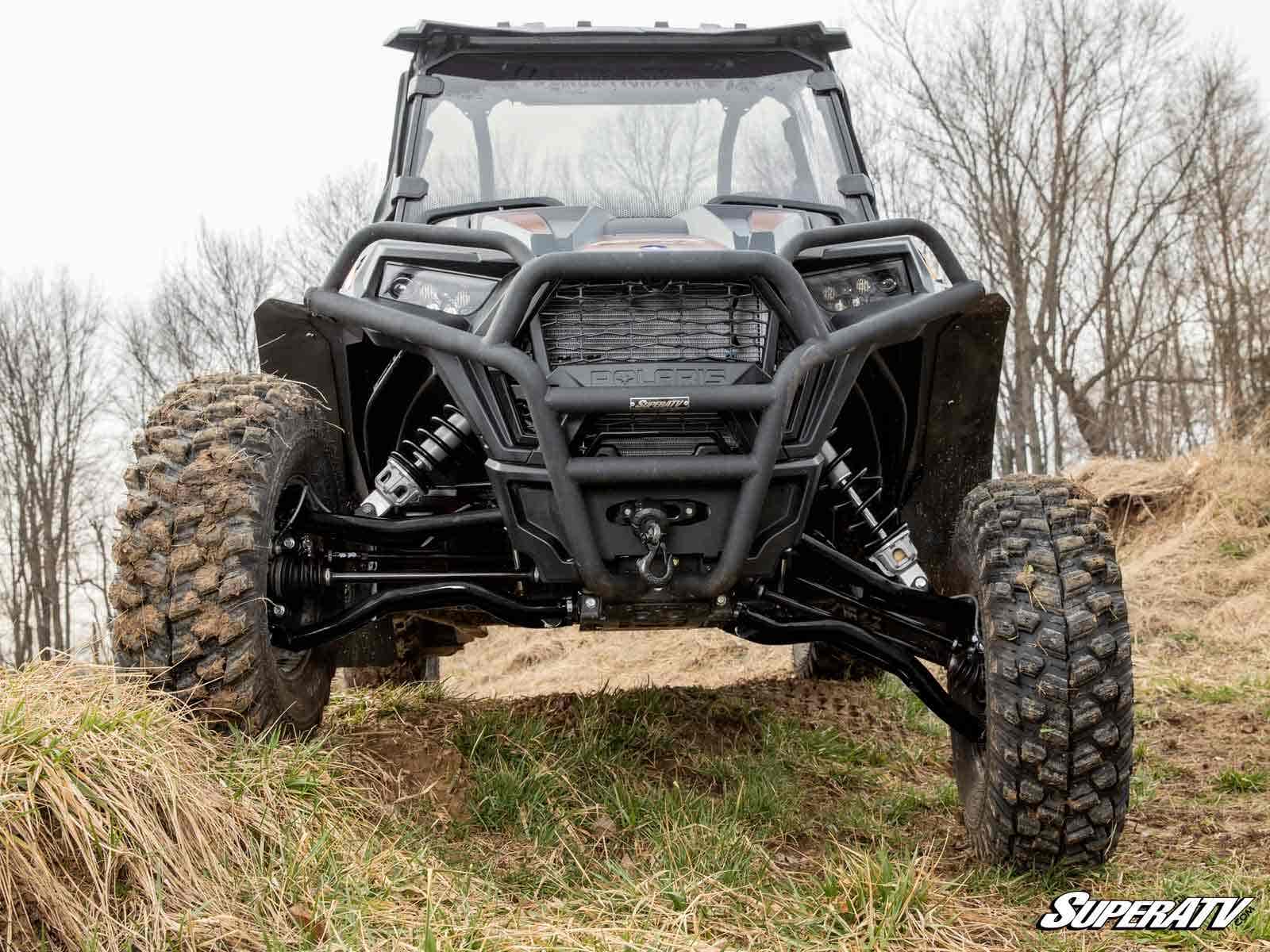

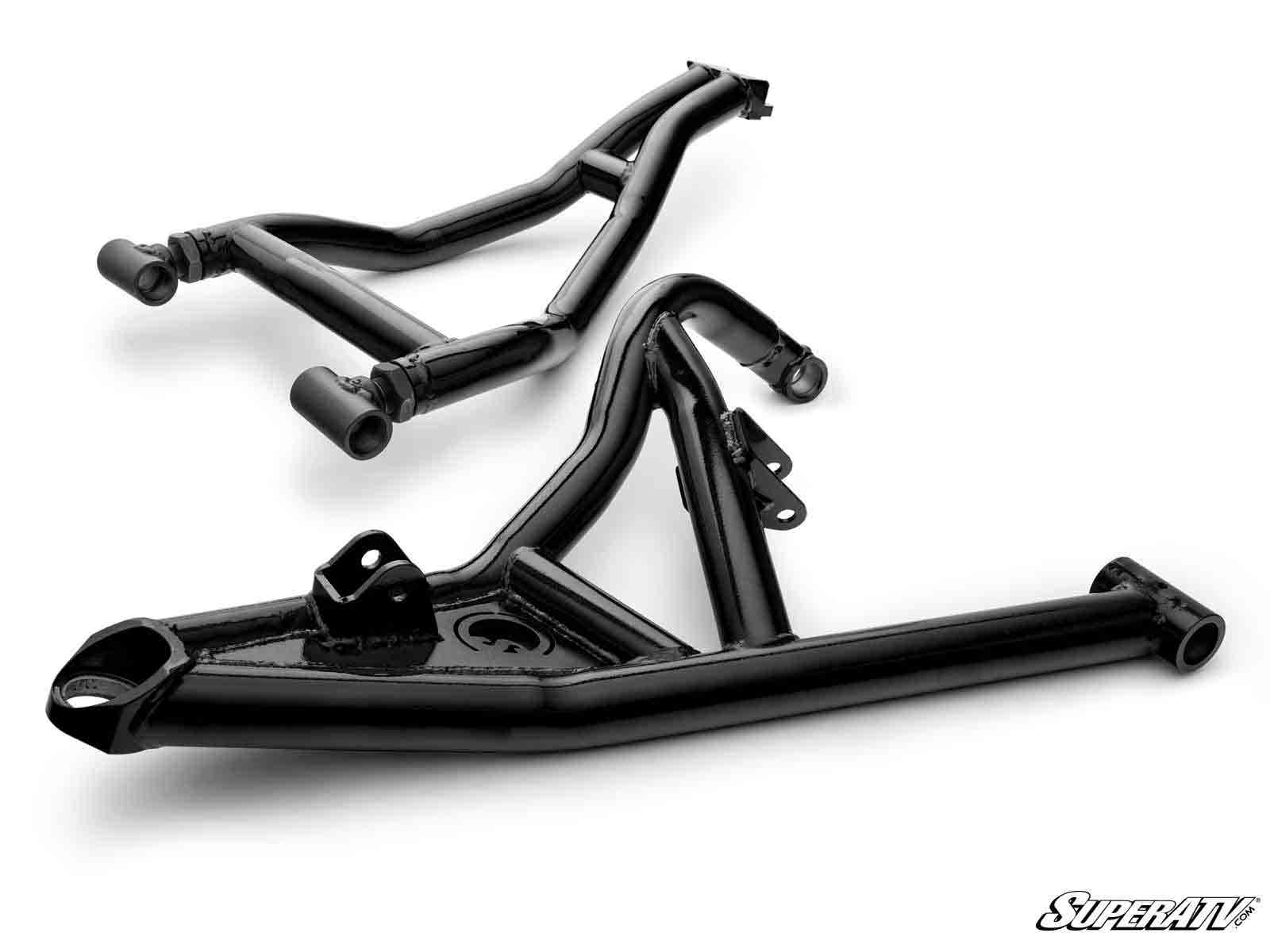

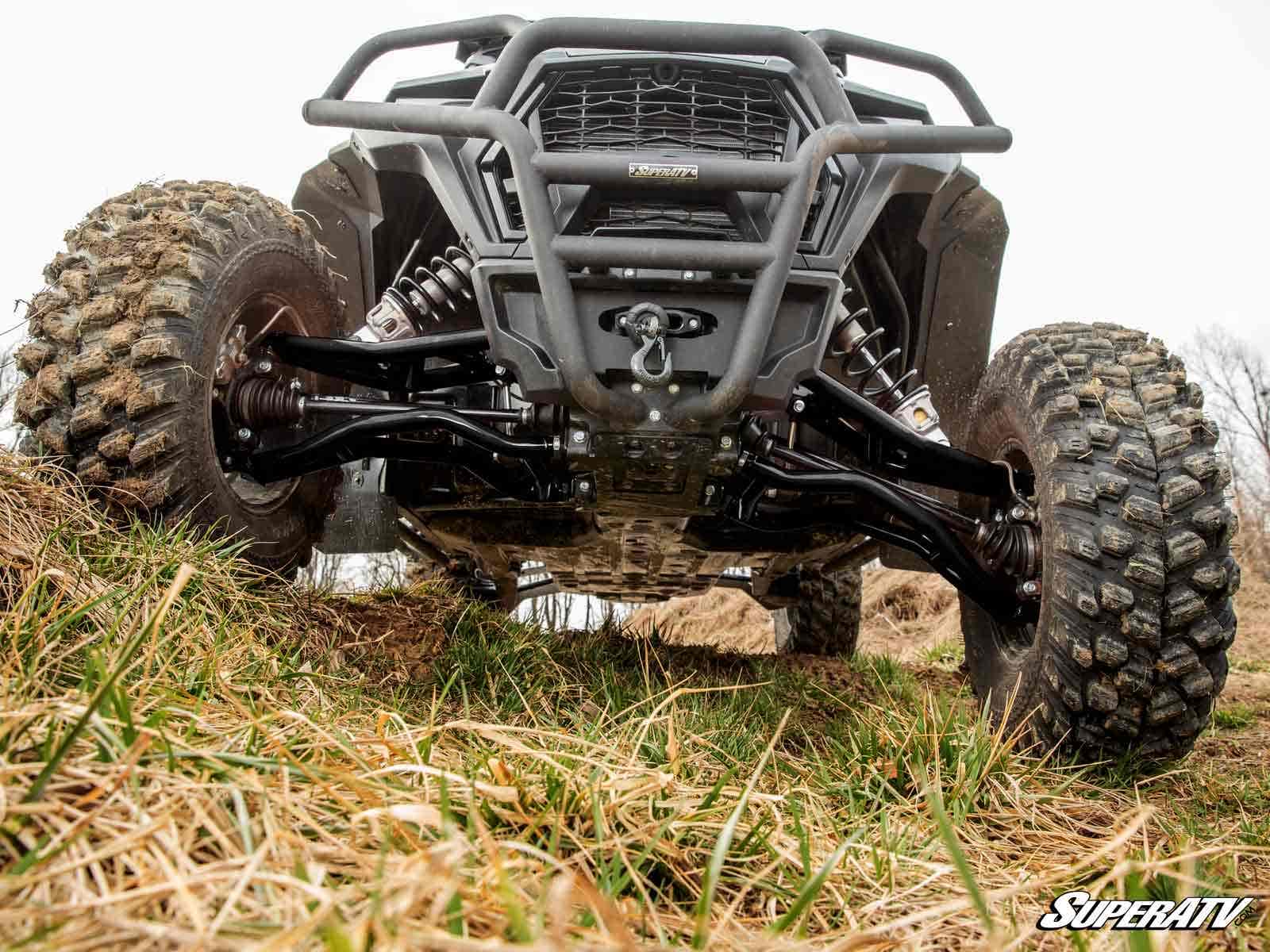

Polaris RZR XP 1000 Atlas Pro 2" Forward Offset A-Arms


Choose color: Red
Need Preinstalled Ball Joints: Keller Performance
Sale price$1,459.75
Free Shipping - Side by Side Stuff
UTV Parts Questions - Text Us

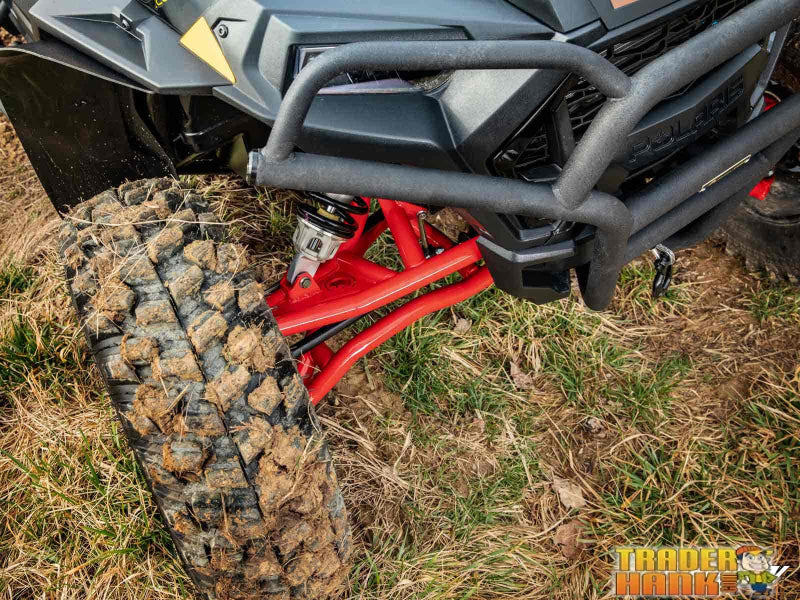

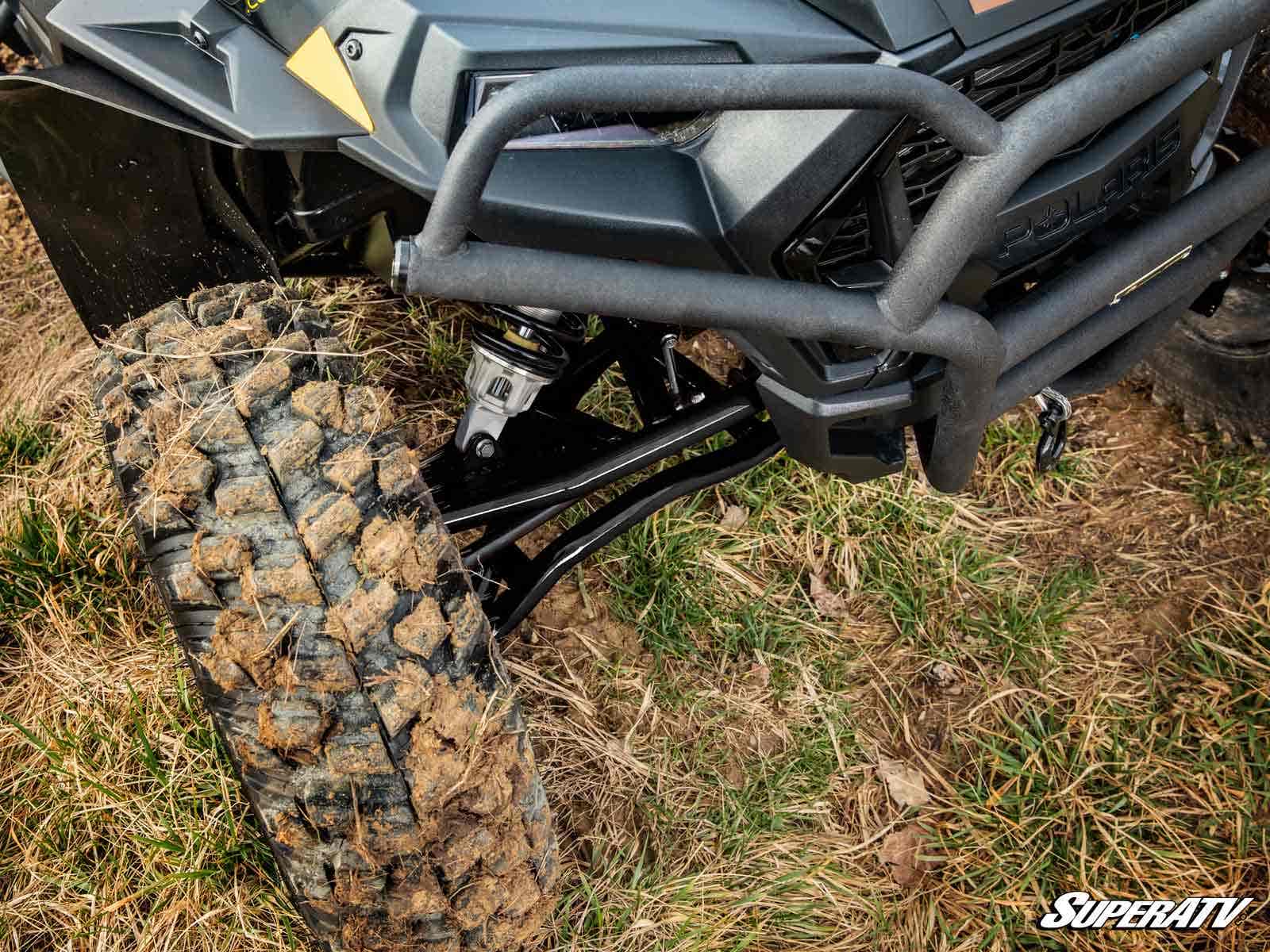

Polaris RZR XP 1000 Atlas Pro 2" Forward Offset A-Arms

Next Level A-Arms with Optional Heim Joints
We've built some monstrous A-arms with optional heavy-duty heim joints for next-level performance. Our improved design has increased the tubing to 1.5” in diameter, making these Polaris RZR XP 1000 Atlas Pro 2" Forward Offset A-Arms 0.5” larger than stock and 0.25” larger than our standard A-arms. With the 2” offset, you can run up to 35" tires, making your machine look like a monster. And if you want to dominate mud and sludge, add heim joints for superior performance.

Bad to the Bone—Atlas Pro Tubing

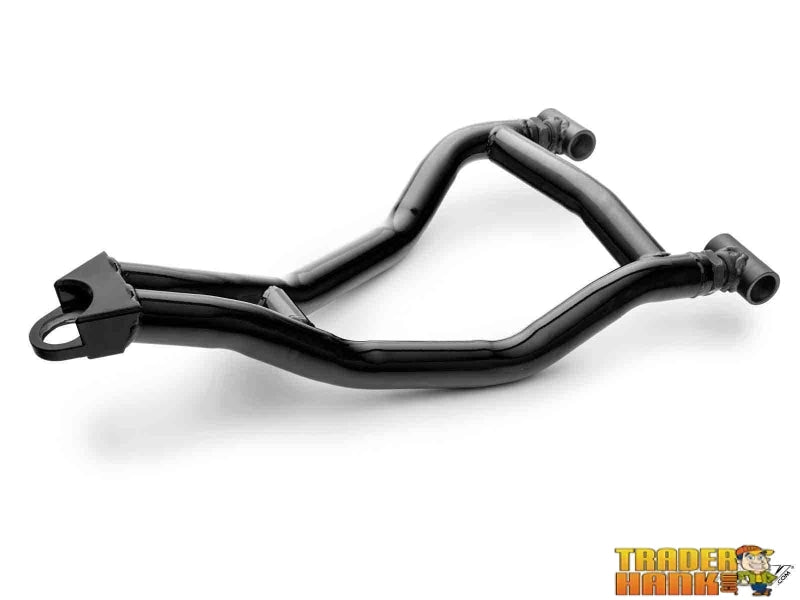

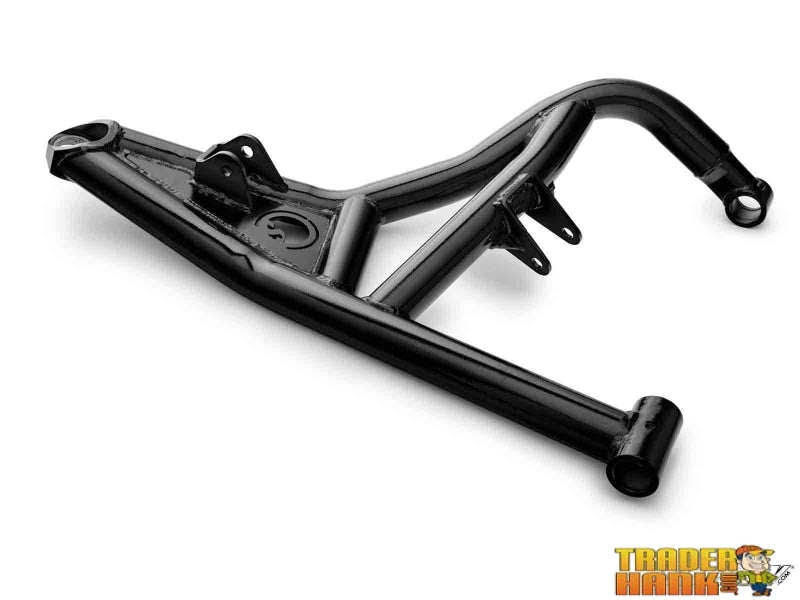

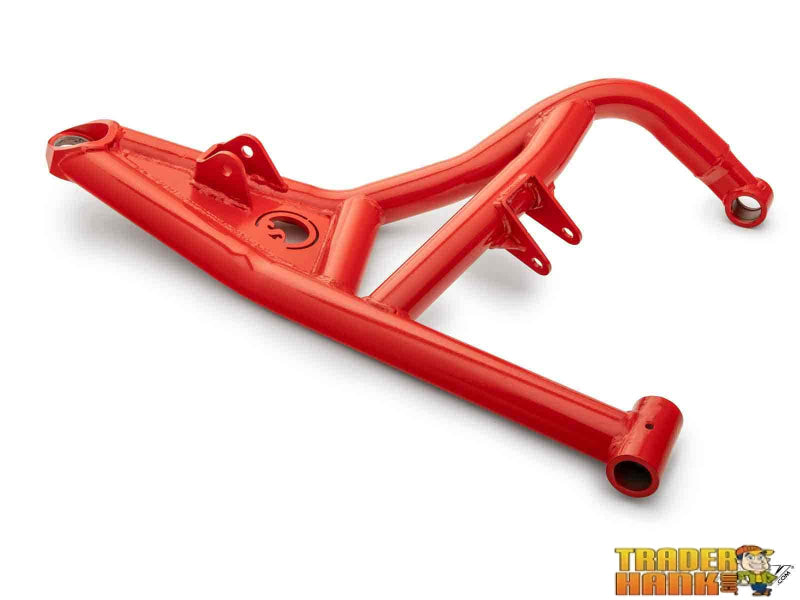

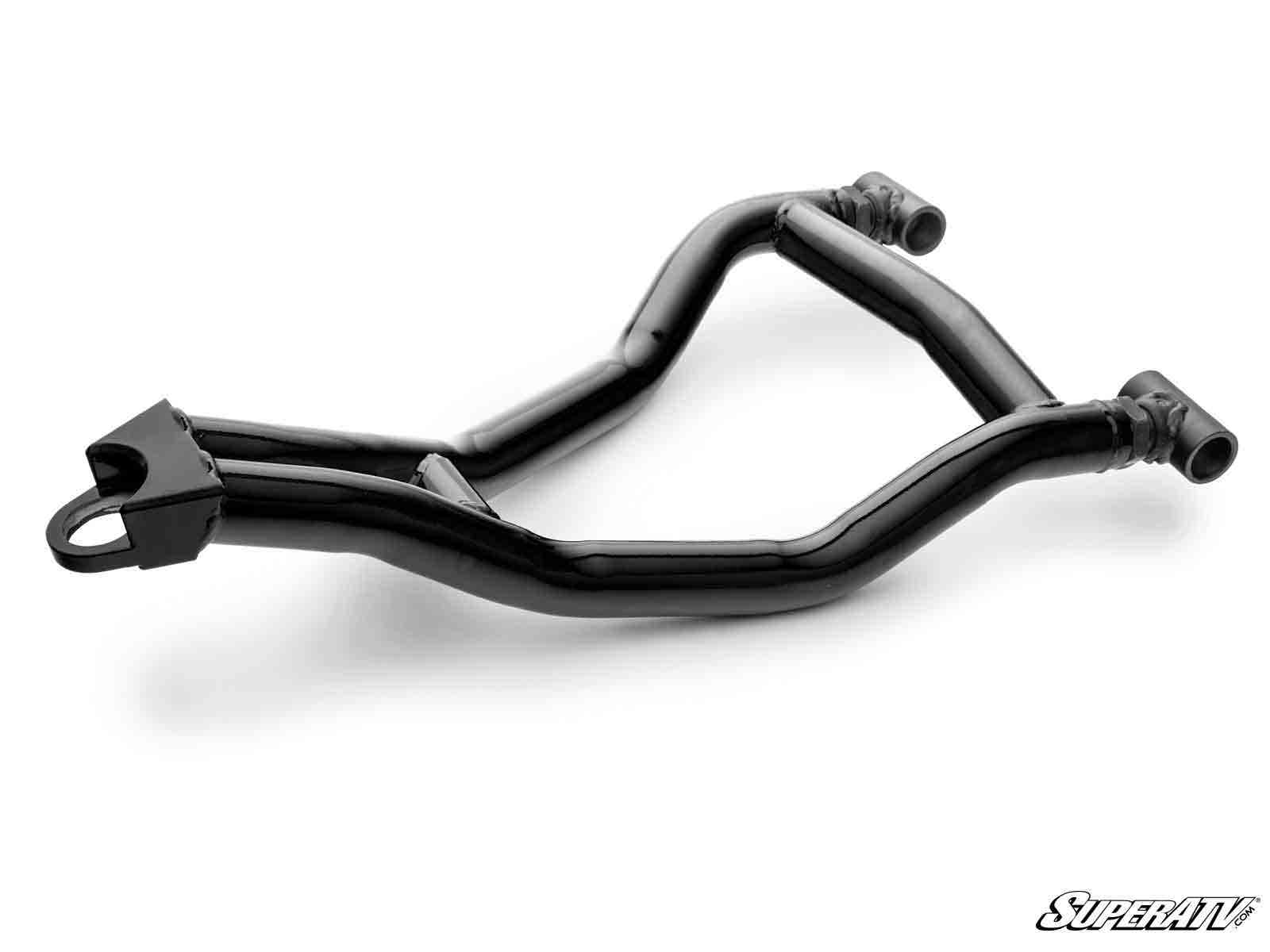

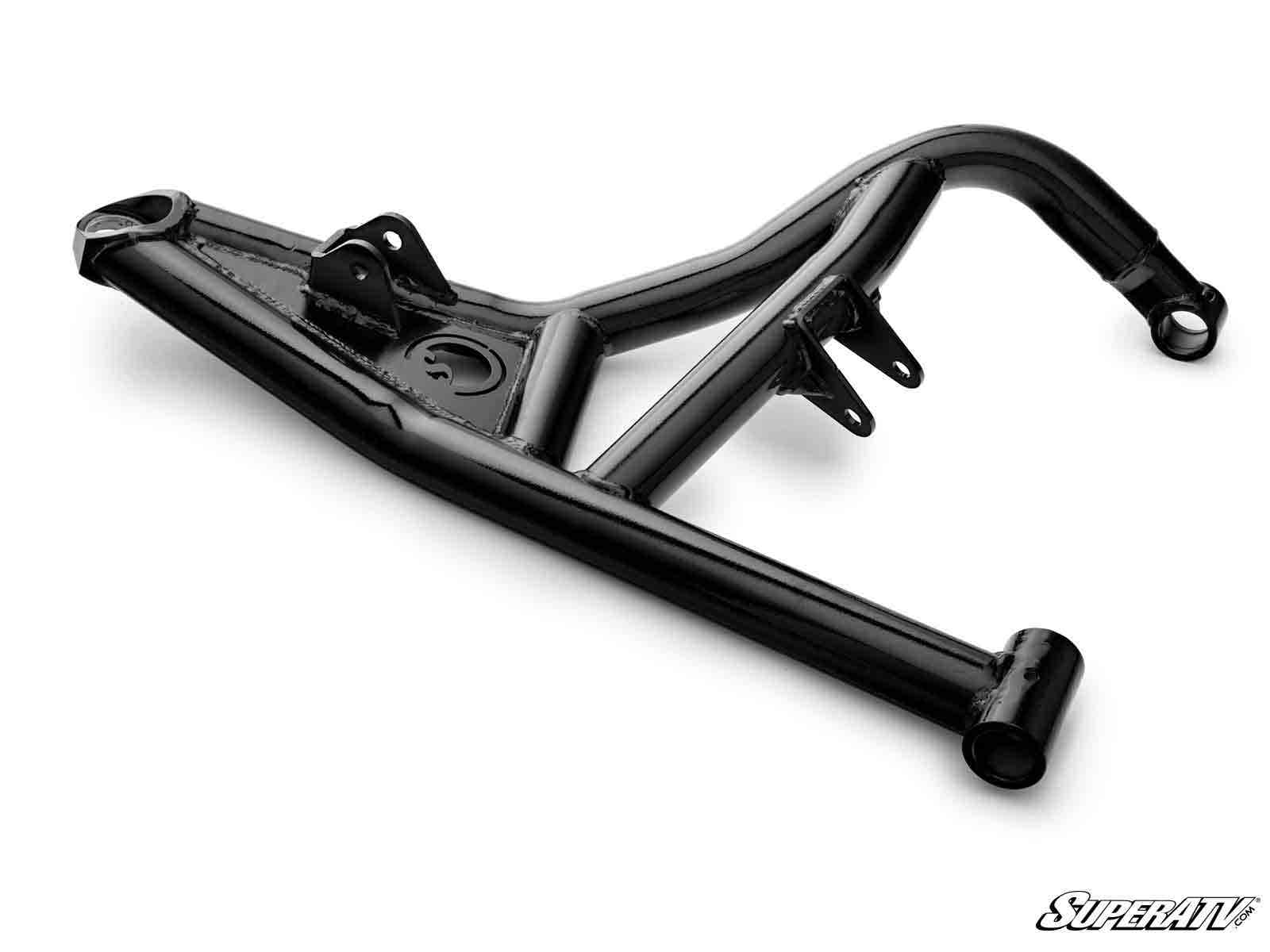

These Atlas Pro A-Arms are the biggest A-arms we've ever designed. We took our standard A-arm measurements and increased the tubing by 0.25”, giving you a beefy 1.5” diameter tubing with 0.138” thick walls. That's a full 0.5” bigger than stock A-arms. We finish them with a UV-resistant powder coating for durability and corrosion resistance.

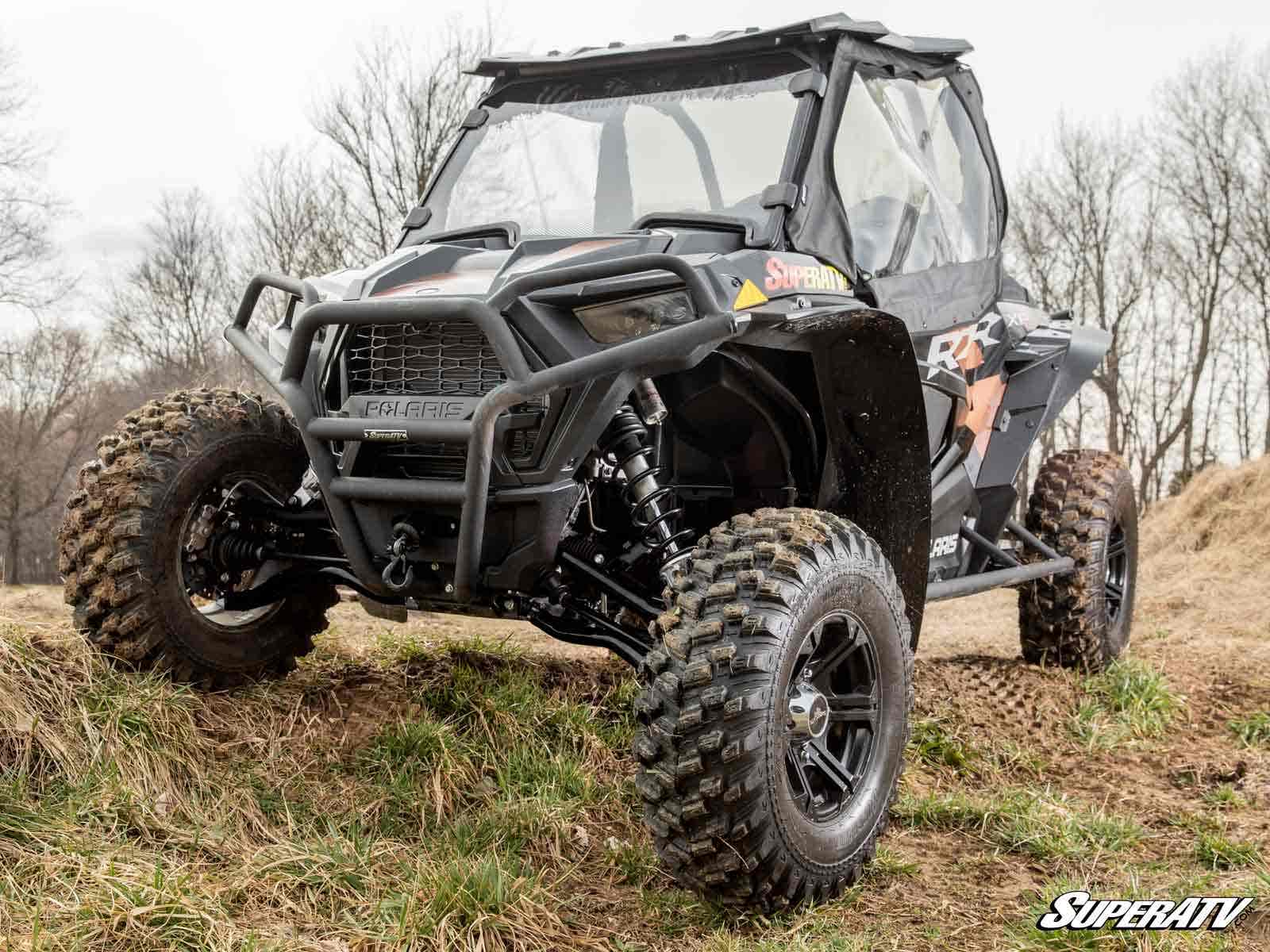

Fit Up to 35” Tires without a Lift

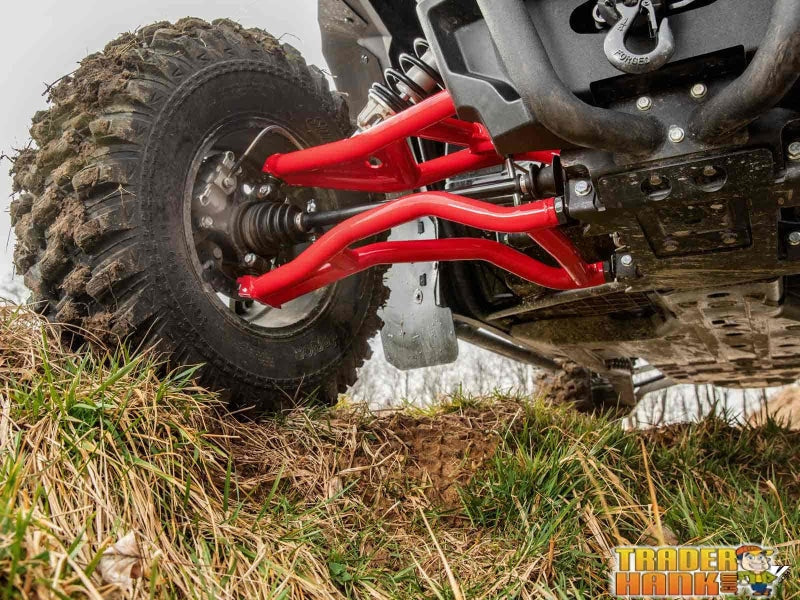

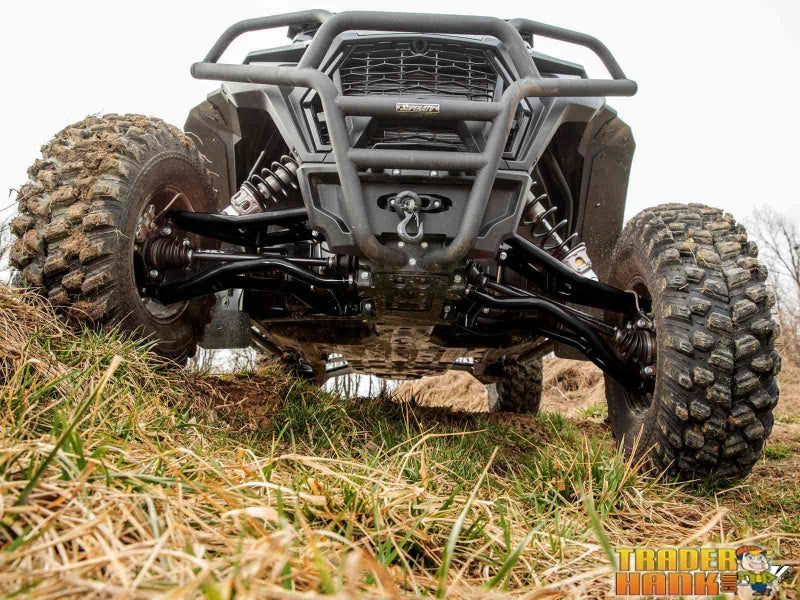

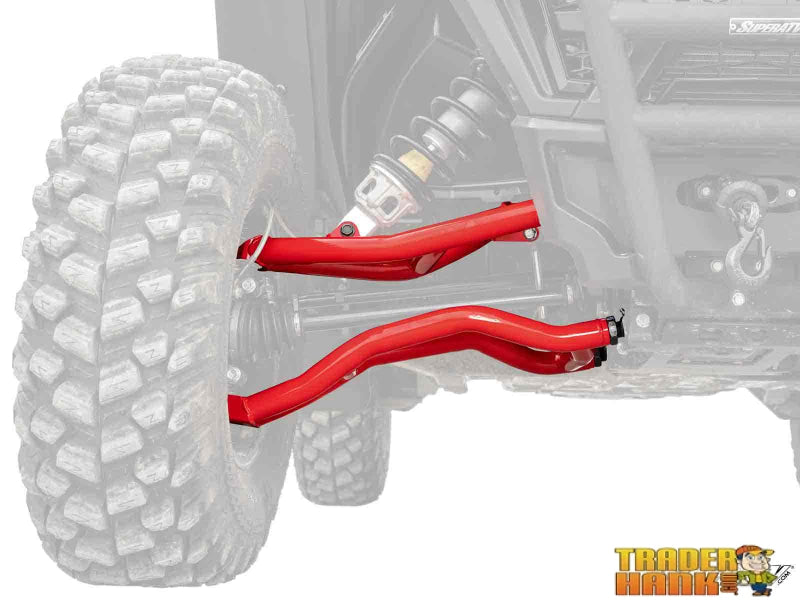

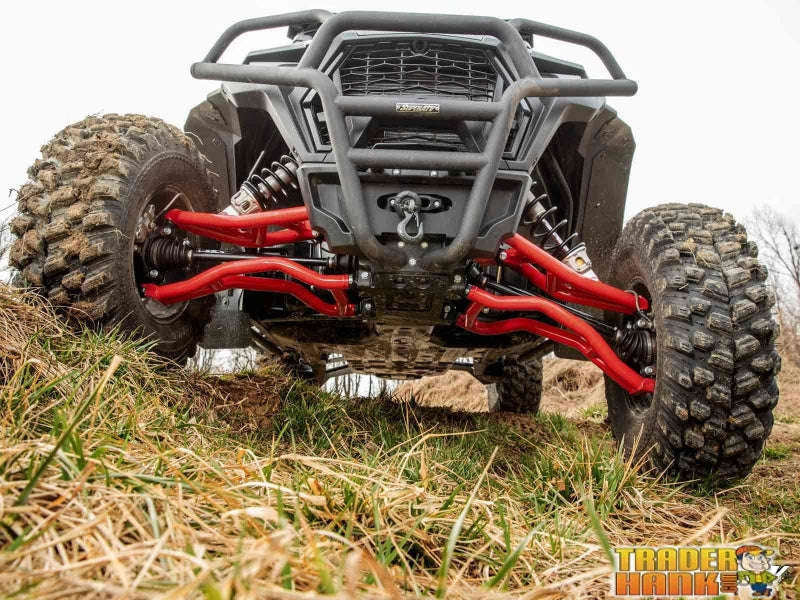

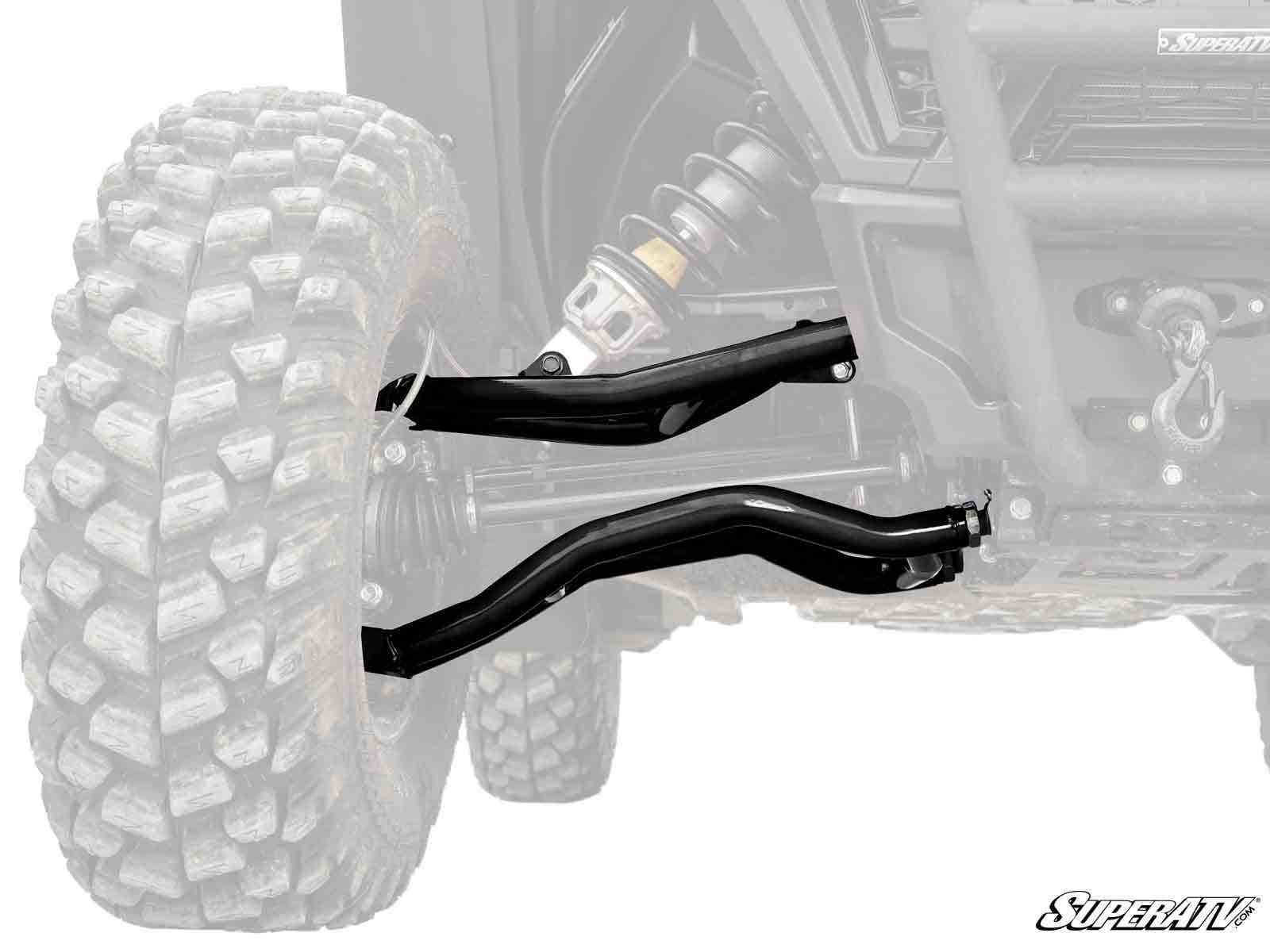

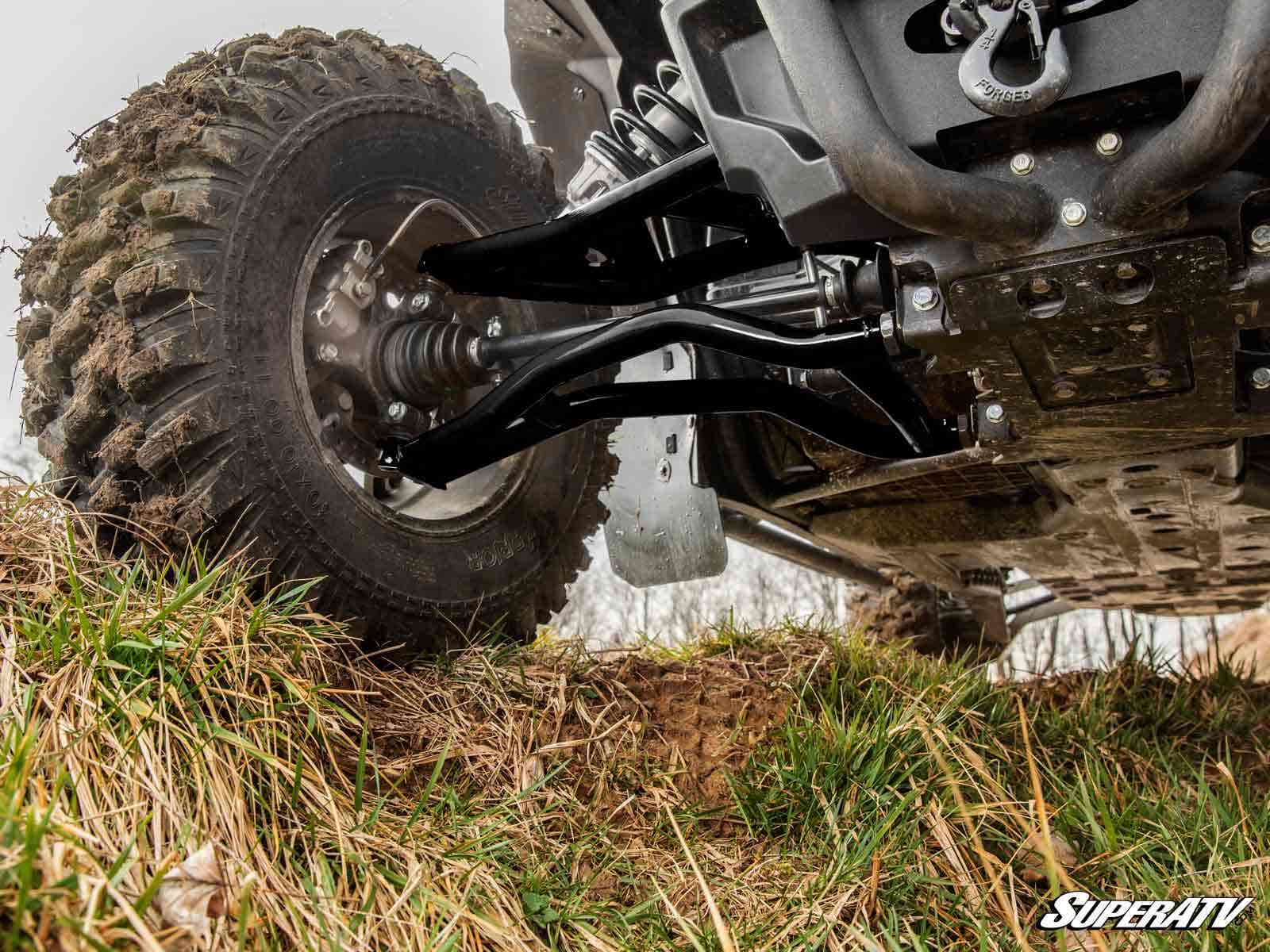

These A-arms give you a 2” forward offset so you've got room for 35” tires. The bend design also gives you an extra 1.5” of ground clearance that'll have your RZR 1000 eating boulders for breakfast.

24 mm Adjustable Pivot Blocks for Ball Joints
We offer adjustable pivot blocks for easily customizable camber. Good camber eliminates premature wear and tear on your tires. We pre-adjust your pivot blocks to match your machine's stock specifications, so you don't have to adjust them in most situations.

Or Optional Double Heim Joints
A-arms with double heim joints are a mud-lovers dream. They're a match made in heaven for our GDP Portals, thanks to a 3/4” bore and 7/8” threads. It's still easy to adjust your camber even without ball joints.

Comes with a Beefy Tie Rod Kit
These solid steel bar tie rods take advantage of chromoly tie rod ends so they can handle hard riding and rough terrain. Plus, they let you adjust your toe easily.

Let SuperATV Do the Work—Preassembly Available!
Purchase a set of SuperATV ball joints with your 24 mm Adjustable Pivot Block A-arms, and we'll install them for you for free! We save you money and time so you can get back to doing what you love.

Heavy Duty Ball Joints
Our proprietary blend of hardened 4340 VAR steel and zinc plating is absolutely unstoppable. These ball joints also come with easily-accessible grease zerks and an adjustable design. Extensive lab and field testing shows that our heavy duty ball joints can withstand double the pressure of an OEM ball joint!

Super Duty 300M Ball Joints
We took the strongest ball joint material on the market—300M grade steel—and combined it with our superior design engineering to make the strongest ball joint on the market. It comes with an easily-accessible grease zerk and an adjustable steel-on-steel design, making it easy to keep your ball joints maintained and flexible. At 2.25x stronger than stock, you won't find a better ball joint.

Keller Ball Joints
Keller Ball Joints use a two-piece design that eliminates the need for a snap ring. They thread onto your A-arms like a nut and bolt, which makes these ball joints virtually impossible to pull out. The high-quality chromoly steel stud combined with an advanced tool-steel body makes them perfect for bigger machines, bigger tires, and bigger rides.


  • Adds 2” forward offset
  • Fits up to 35” tires
  • Fits up to 32” tires with Low Profile Front Bumper
  • Made with 1.5” x .138” wall steel DOM tubing
    • 0.5” larger than stock
    • 0.25” larger than our standard High-Clearance 2” Forward Offset A-Arms
  • Adjustable 24 mm pivot blocks for full camber adjustability OR heavy-duty heim joints
  • Utilizes stock A-arm bushings
  • UV-resistant powder coat finish
  • Easy to install
  • Backed by a lifetime warranty


Fitment Details
  • Polaris RZR XP 1000 : 2014-2023
  • Polaris RZR XP 4 1000 : 2014-2023
NOTE: Must run limit straps with 3-5” lift kit
