Can-Am Defender HD10 Atlas Pro 6in. Lift Kit

SKU: LK-CA-DEF-6-005-02

Model: All Other Models in Fitment
Need Preinstalled Ball Joints?: I will do the work myself and reuse existing
Price:
Sale price$3,499.99

Free Shipping - Lower 48 States

Free Shipping - Side by Side Stuff
UTV Parts Questions - Text Us

Description

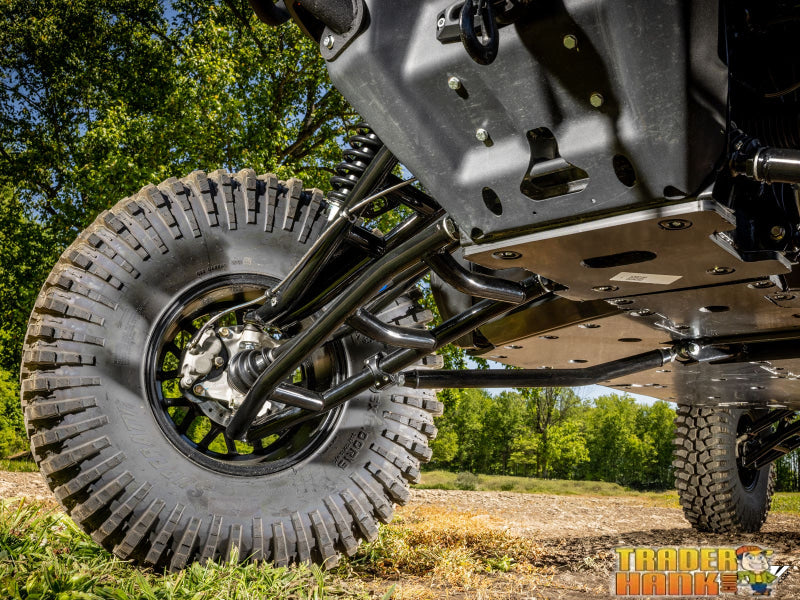

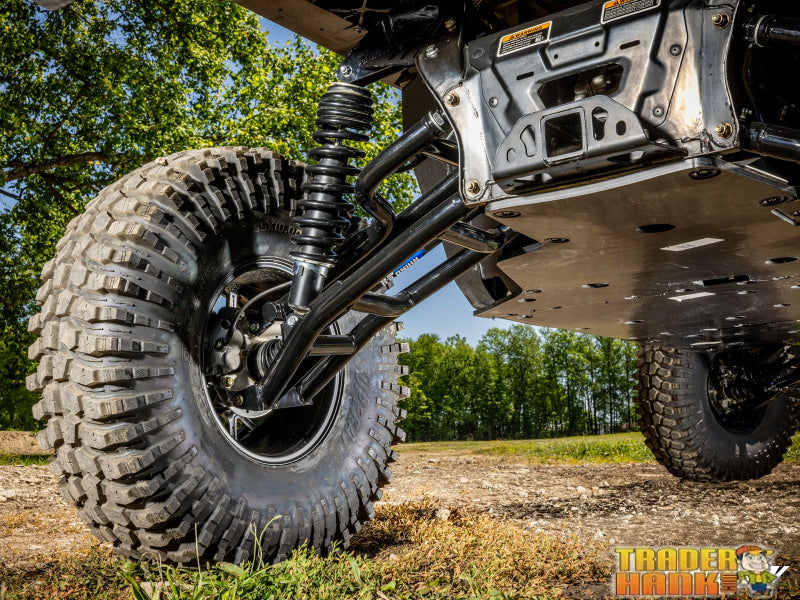

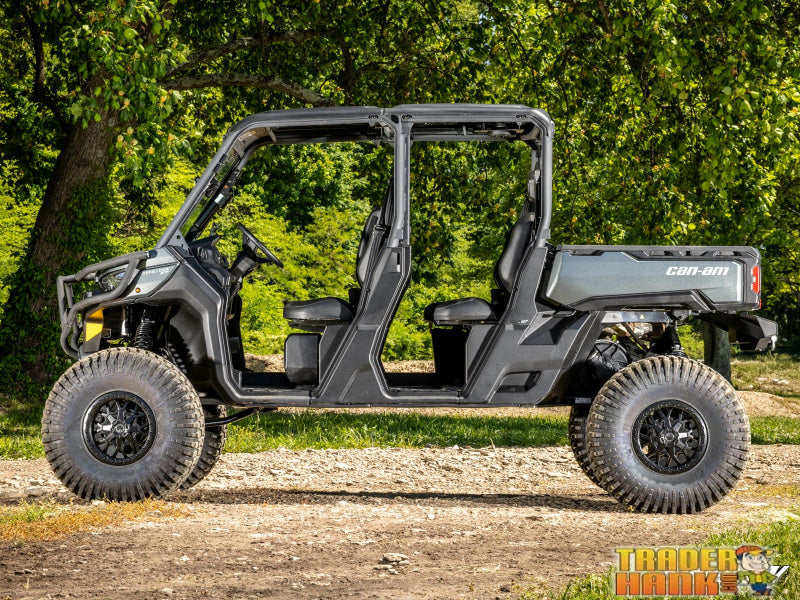

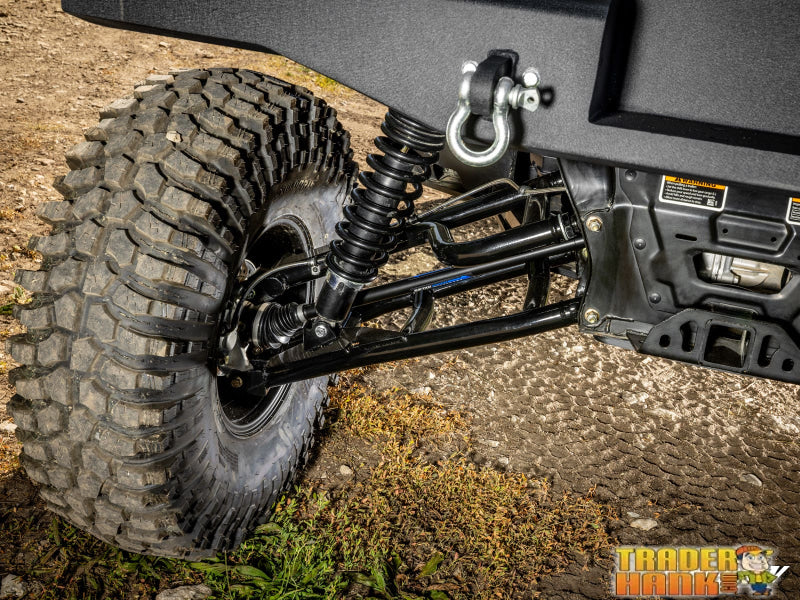

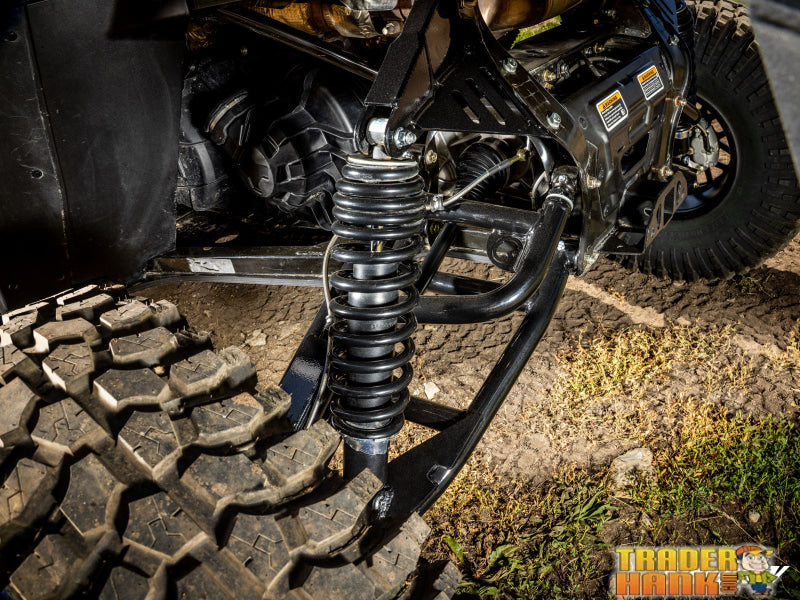

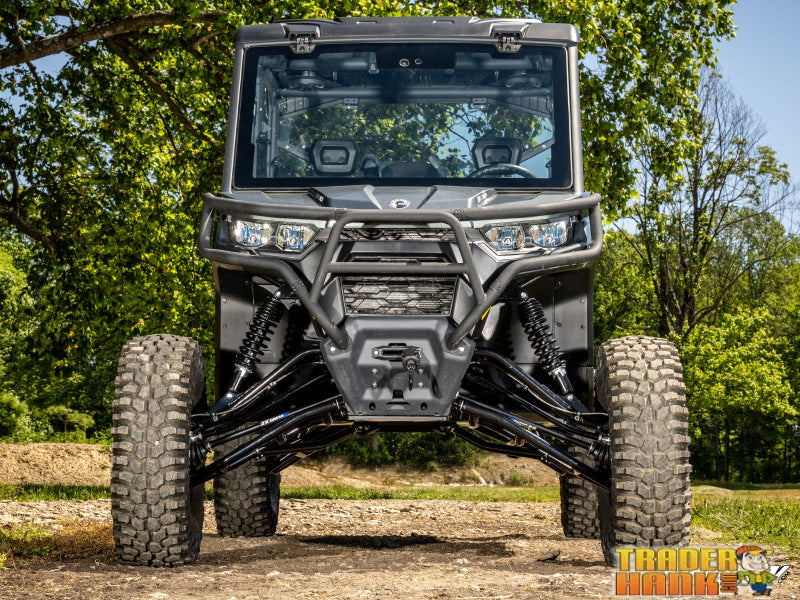

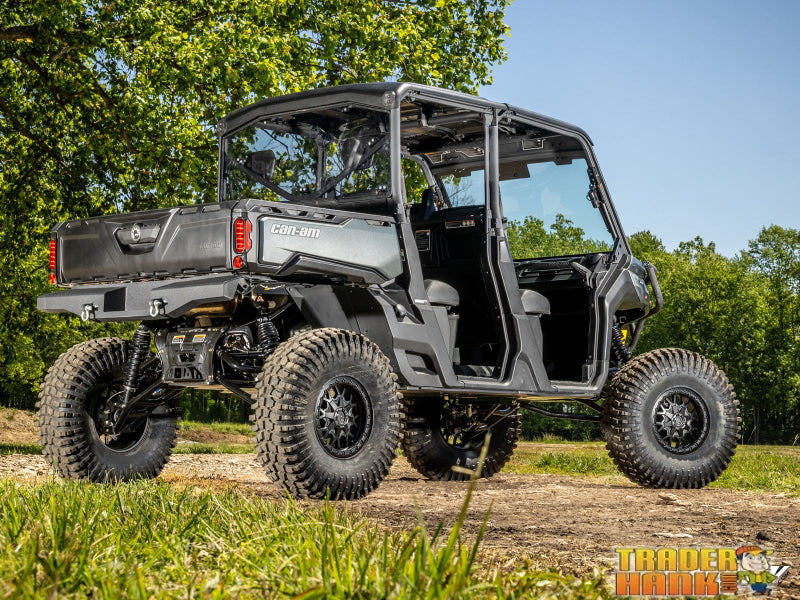

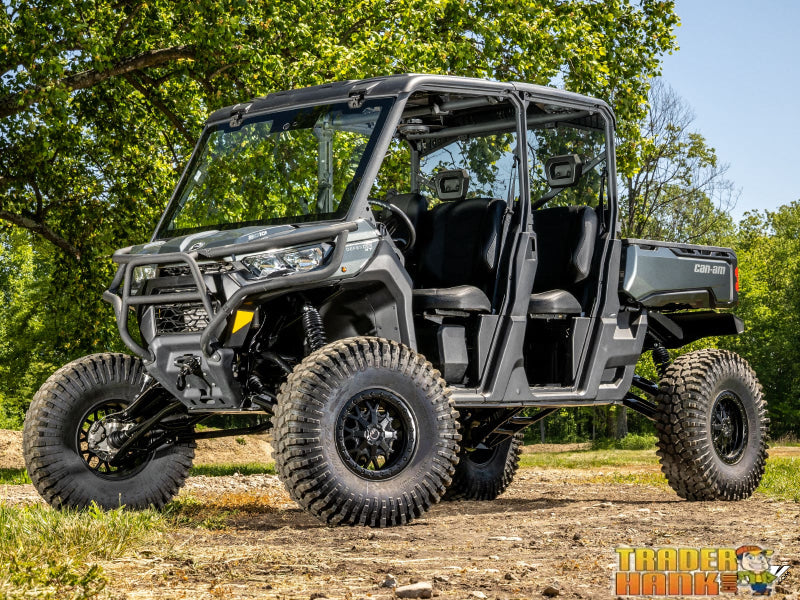

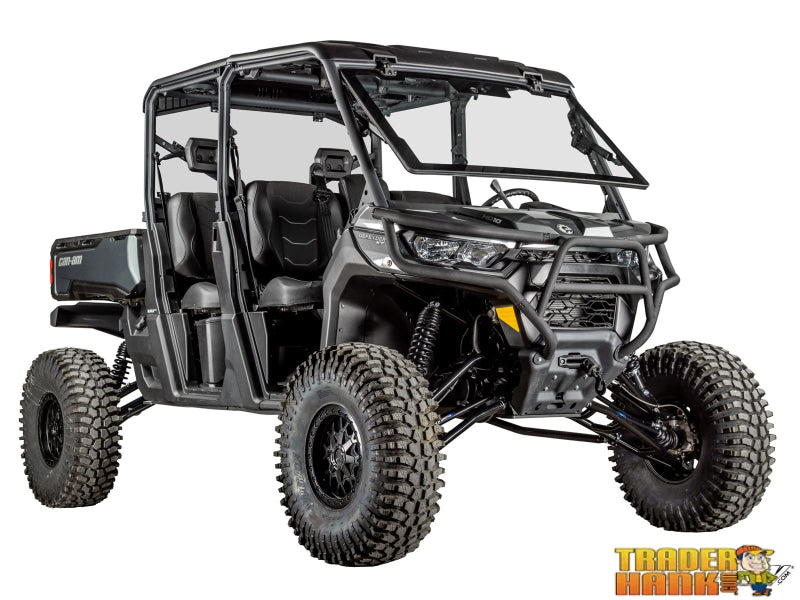

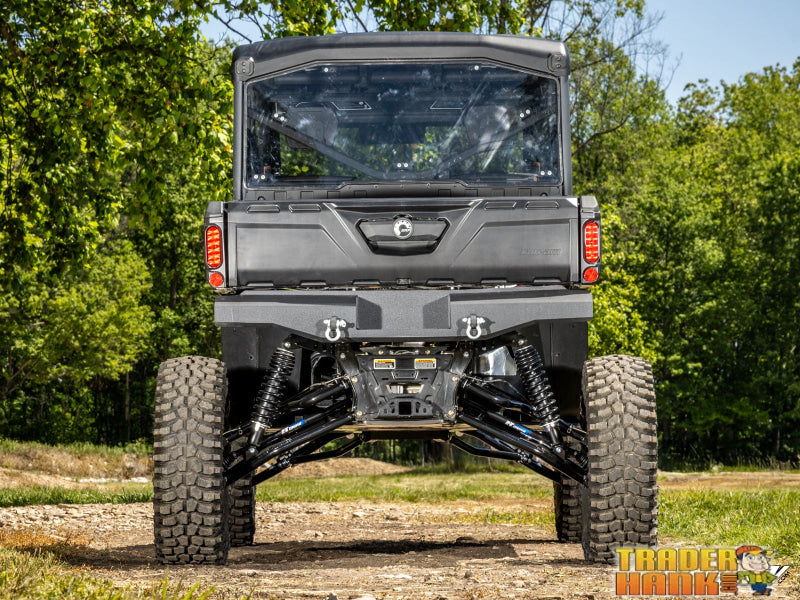

Your Can-Am Defender HD10 is ready to grow. This 6-inch lift kit transforms your machine with the ground clearance, tire capacity, and stance you need to tackle serious terrain. You'll fit tires up to 38 inches, gain 76 inches of width for better stability, and clear obstacles like rocks, ruts, and deep holes that would stop a stock setup. It's built with the kind of parts that make a real difference: Atlas Pro A-arms, Rhino 2.0 axles, heavy-duty tie rods, and a track bar kit that keeps everything working together when you're pushing hard.

What You're Getting

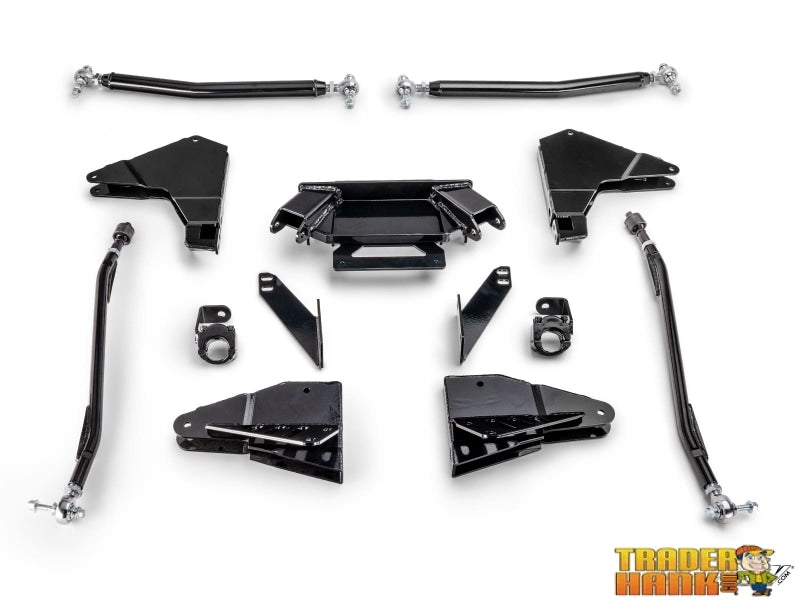

This kit doesn't strip your Defender down. You keep the dump bed and all your OEM plastic pieces—it's designed to work around them. Inside the box you get front and rear lift brackets, full-size A-arm sets, four Rhino 2.0 axles, a complete tie rod setup with steering stops, a track bar kit, extended brake lines, and all the hardware you need to bolt it together.

The Heavy Metal

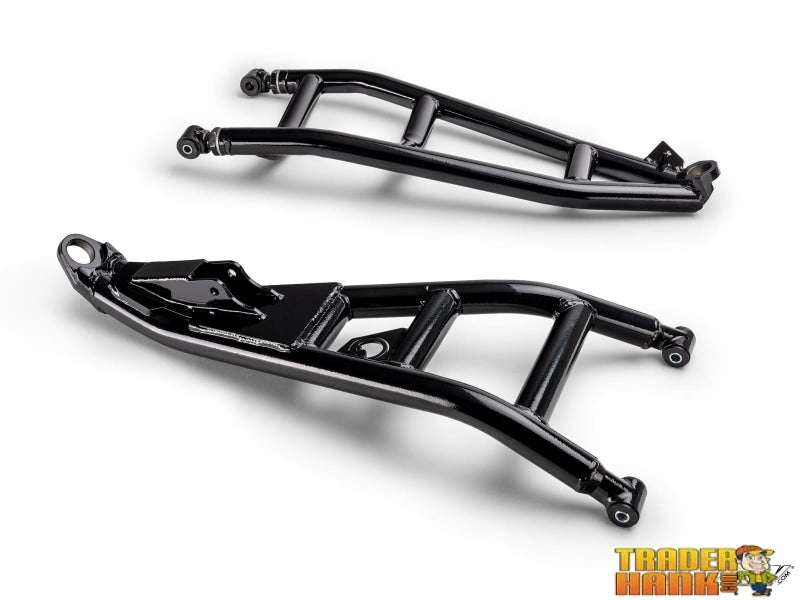

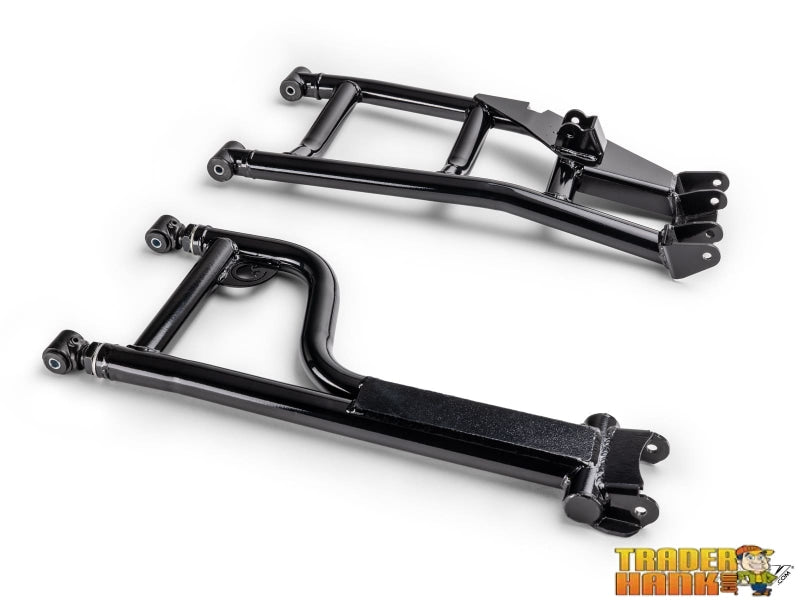

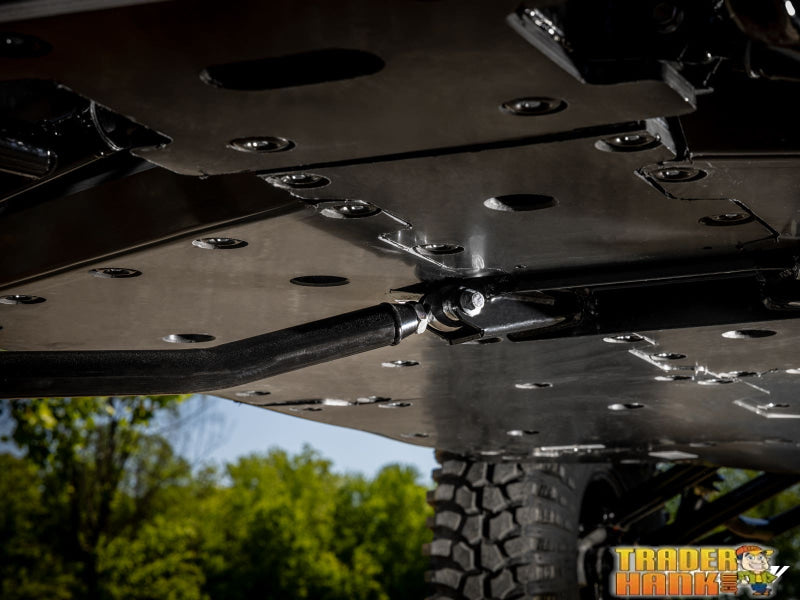

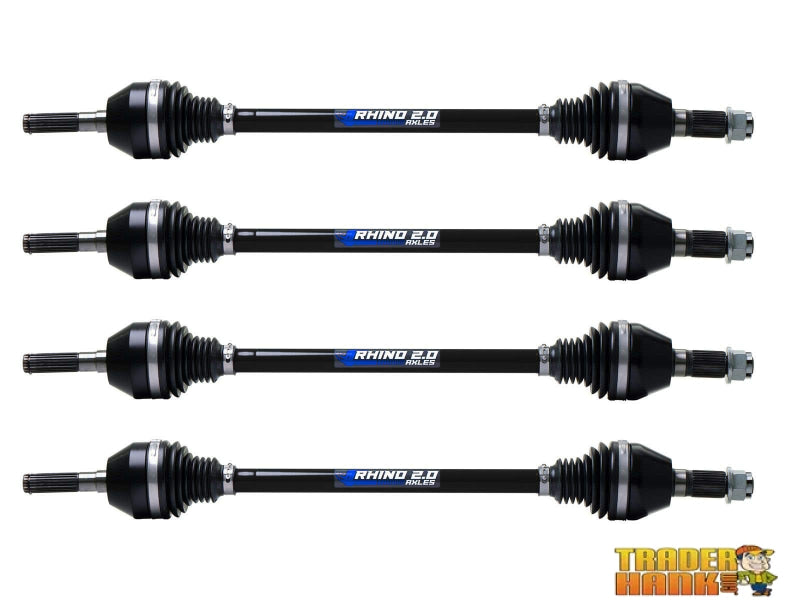

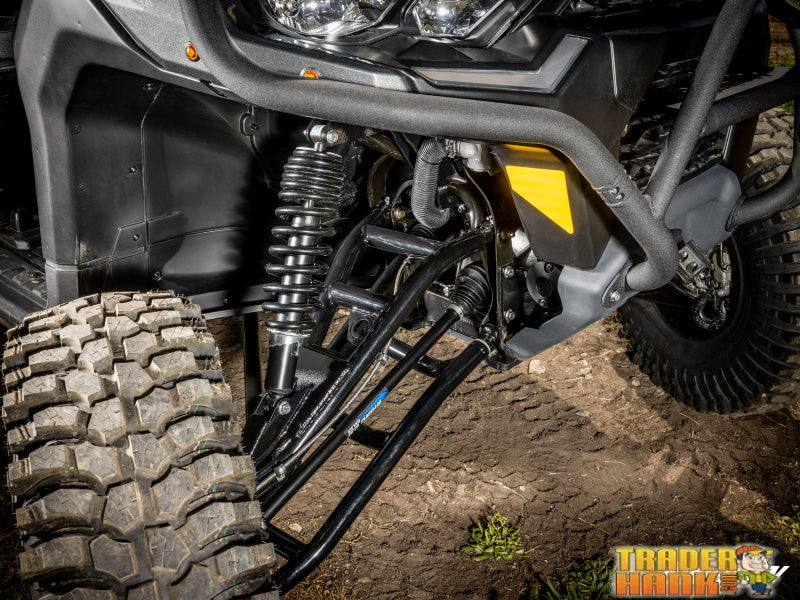

A big suspension needs real strength. The Atlas Pro A-arms use 1.5-inch diameter tubing with quarter-inch outer walls and eighth-inch cross braces—that's thick steel built to handle the angles and abuse a 6-inch lift throws at it. Your axles are Rhino 2.0 units made from 4340 chromoly steel with beefed-up shafts and heavy-duty CV joints rated for high-angle suspension work. The Z-bend tie rods and track bar kit keep your steering geometry solid and brace the whole suspension against the leverage created by all that extra travel.

Ball Joint Options

You've got three choices here. Order it with preassembled ball joints already installed and skip the press work—just bolt it on. Our heavy-duty joints use 4340 VAR steel, zinc plating, and handle twice the load of stock pieces. Step up to Super Duty 300M joints for 2.25 times the strength, with steel-on-steel design and easy-access grease points. Or go with Keller Ball Joints, which use a two-piece chromoly and tool-steel design that threads on like a bolt—they won't pull out, and you can rebuild them whenever you need to. If you don't pick preassembled joints, you'll need to reuse your existing ball joints.

Fitment Notes

  • Can-Am Defender HD 10: 2020+
  • Can-Am Defender HD 10 DPS: 2020+
  • Can-Am Defender HD 10 Limited: 2024+
  • Can-Am Defender HD 10 Pro: 2020+
  • Can-Am Defender HD 10 XMR: 2018+
  • Can-Am Defender HD 10 XT: 2020+
  • Can-Am Defender HD 10 XTP: 2020+
  • Can-Am Defender MAX HD 10: 2020+
  • Can-Am Defender MAX HD 10 DPS: 2020+
  • Can-Am Defender MAX HD 10 Limited: 2024+
  • Can-Am Defender MAX HD 10 Limited Cab: 2024+
  • Can-Am Defender MAX HD 10 Lonestar: 2024+
  • Can-Am Defender MAX HD 10 XMR: 2019+
  • Can-Am Defender MAX HD 10 XT: 2020+

Important: You'll need to remove the front and rear sway bars during installation. If you go with Keller Ball Joints, you need to run a 15-inch wheel or larger.


TraderHank offers free shipping to the lower 48 states, same or next day shipping on in-stock orders, and a price match guarantee.

Not sure if this fits your machine?
📱 Text Us at 877-425-4265
We'll confirm fitment before you order — we typically respond within minutes.
