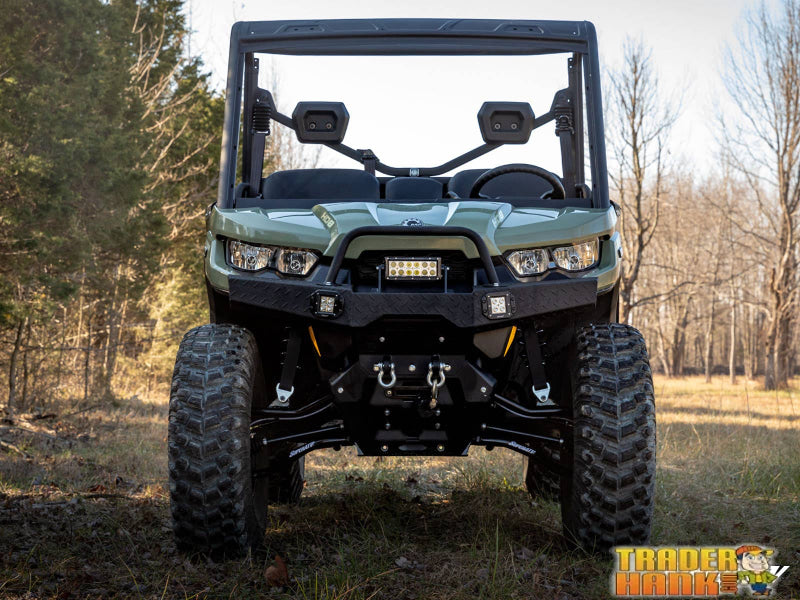

Can-Am Defender HD10 BFT Suspension Kit

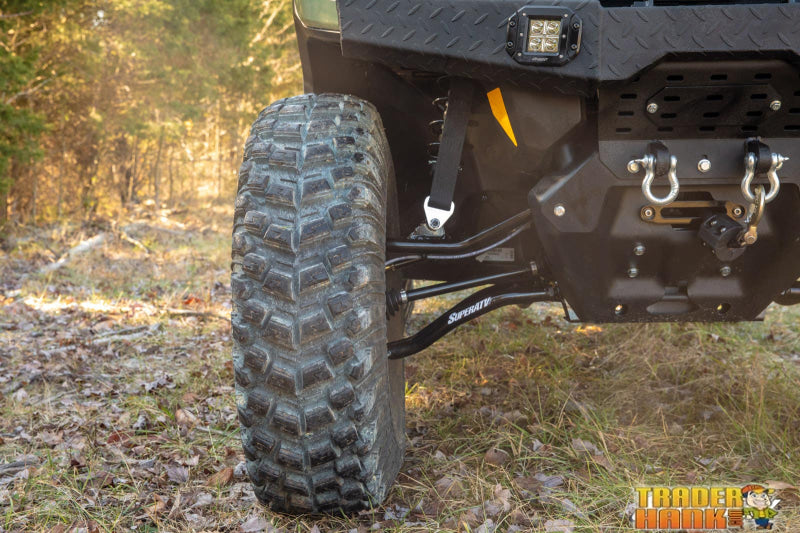

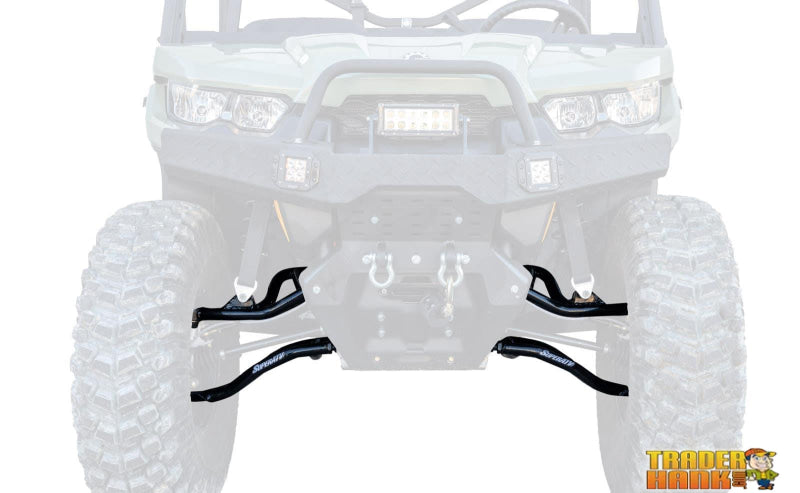

Want to run 34-inch tires on your Can-Am Defender HD10? This suspension kit gives you the clearance you need without unnecessary height. The setup uses forward-offset A-arms paired with a modest 2" lift from shock brackets and spring spacers. You get the tire room without sacrificing how your machine handles rough ground.

What You Get

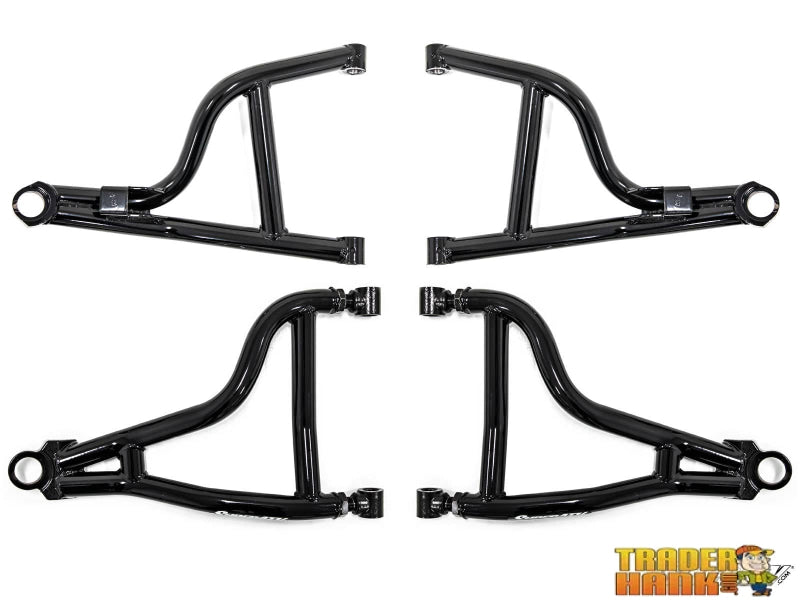

• Upper and lower front A-arms
• Steering stop kit
• 17 limit straps (skip these if you're running Rhino 2.0 axles)

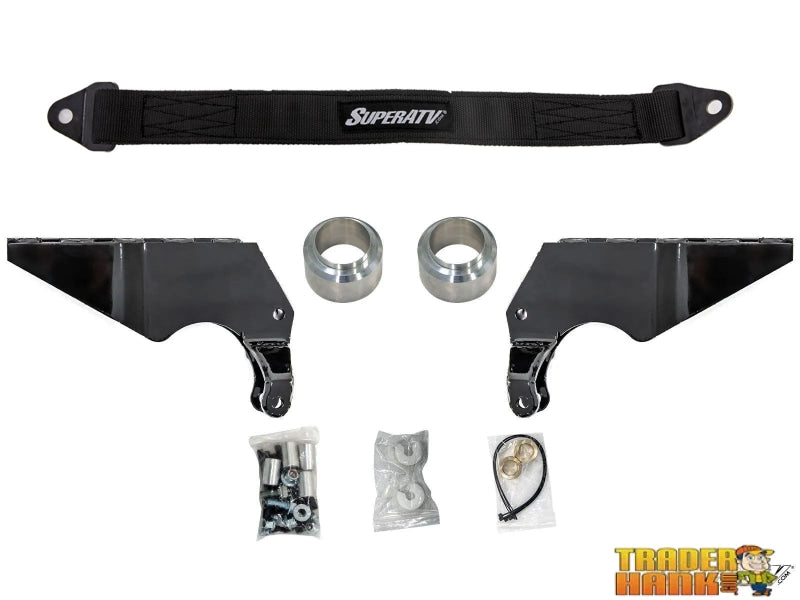

• Spring spacers and shock brackets
• Shock bump stop (only needed for 34-inch tires)

Built Tough, Backed for Life

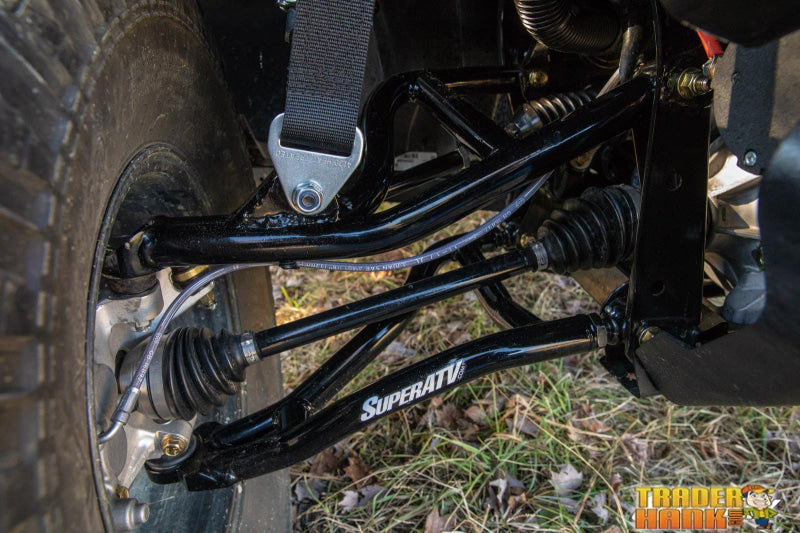

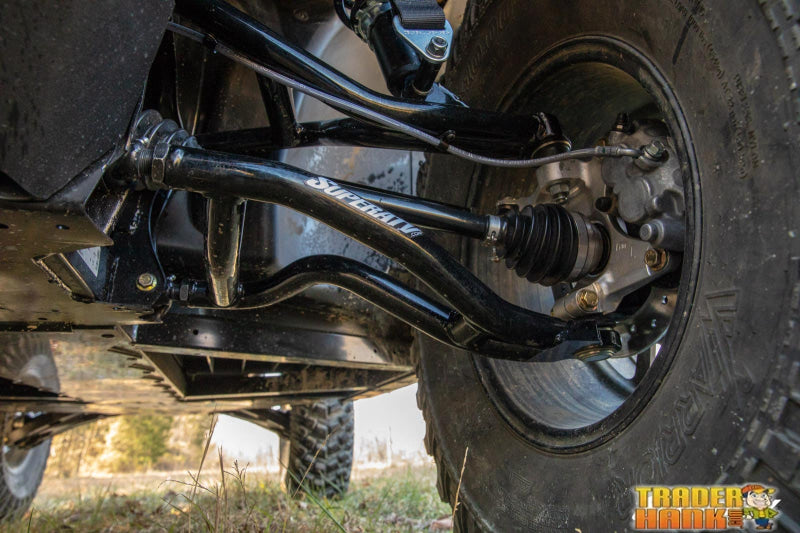

The A-arms are 1-1/4" DOM steel with CNC laser-cut brackets and billet aluminum spacers. This kit is made to take rocks, ruts, and hard riding. Every SuperATV kit comes with a lifetime warranty—if something breaks, we replace it.

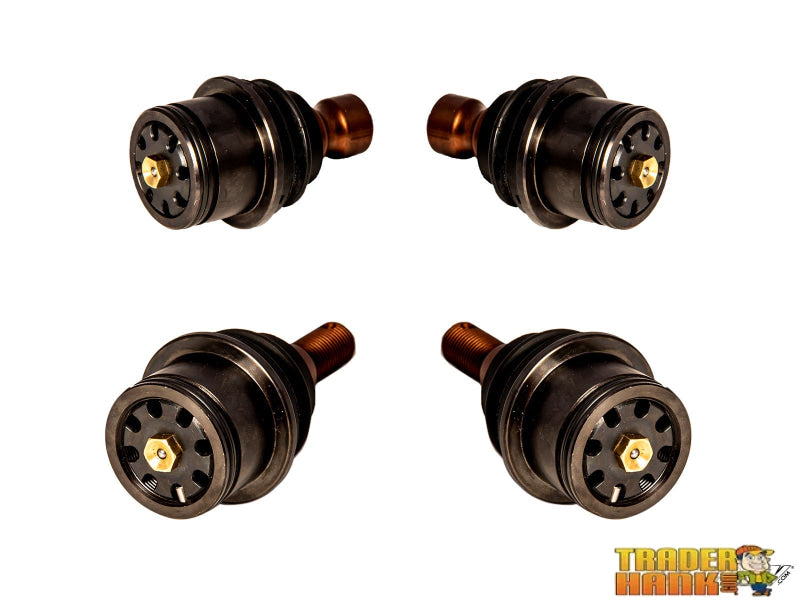

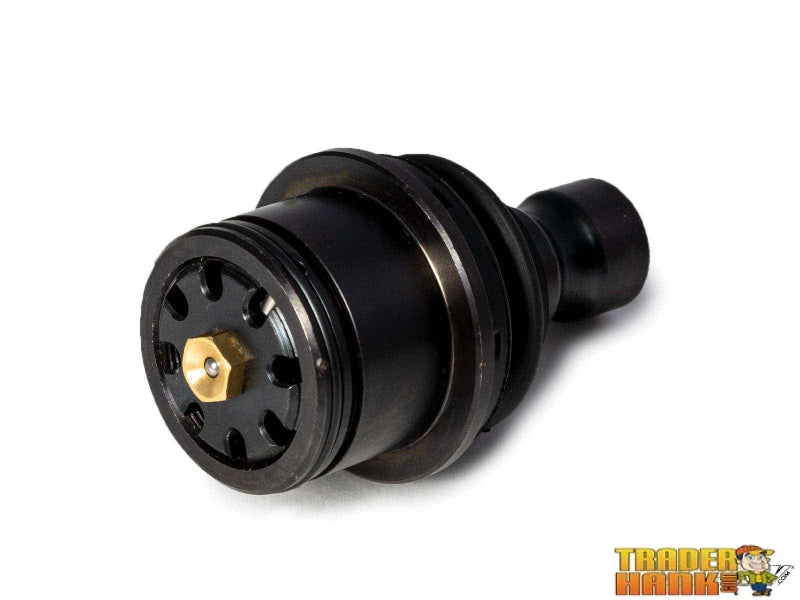

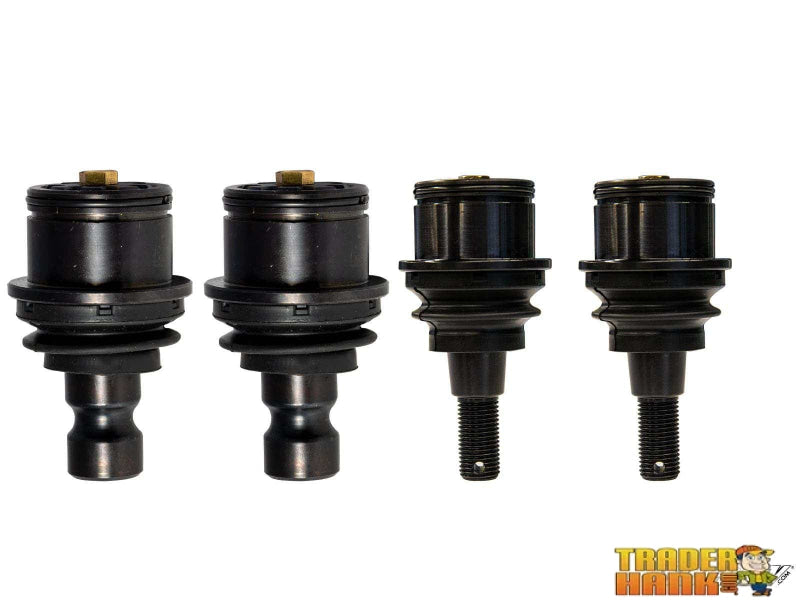

Ball Joint Options

You've got three choices depending on what you need.

Super Duty 300M: This uses 300M-grade steel, the strongest material available for ball joints. The design minimizes neck taper and gives you an adjustable stud. It's 2.25 times stronger than stock.

Keller: Two-piece design that threads on like a bolt—no snap ring to fail. Chromoly stud and tool-steel body work great for bigger machines and bigger tires. Greaseable and rebuildable for long-term use.

Heavy-Duty: Built from hardened 4340 VAR steel with zinc plating. Our testing shows it handles double the load of OEM joints. All three options include a grease zerk and steel-on-steel adjustable design for easy maintenance.

Get It Preassembled

Don't want to press ball joints yourself? Add them to your order and we'll install them free into your A-arms before it ships. No need to buy a press or figure out the job on your own.

Fitment

• Can-Am Defender HD 10 : 2016–2019
• Can-Am Defender HD 10 DPS : 2016–2019
• Can-Am Defender HD 10 XT : 2016–2019
• Can-Am Defender HD 10 XT Cab : 2016–2017
• Can-Am Defender HD 10 XTP : 2018–2019
• Can-Am Defender HD 10 Mossy Oak : 2018–2019
• Can-Am Defender MAX HD 10 : 2017–2019
• Can-Am Defender MAX HD 10 DPS : 2017–2019
• Can-Am Defender MAX HD 10 XT : 2017–2019
• Can-Am Defender MAX HD 10 XT Cab : 2017 Only

Note: Keller ball joints require a 15-inch wheel or larger.
