Yamaha Rhino (2006-2013) - Ice Crusher Cab Heater

SKU: ICCH-BD-C-YAMRH

Include MaxStat Option:: Include MaxStat Option (+$99.99)
Include Hose Clamp Tools (2 Pcs):: Include Hose Clamp Tools ($29.99)
Price:
Sale price$529.97
Free Shipping - Side by Side Stuff
https://cdn.shopify.com/s/files/1/1848/0573/files/TraderHank_Open_Now_1024x1024.png?v=1639965663
UTV Parts Questions - Text Us

Description

Yamaha Rhino (2006-2013) - Ice Crusher Cab Heater

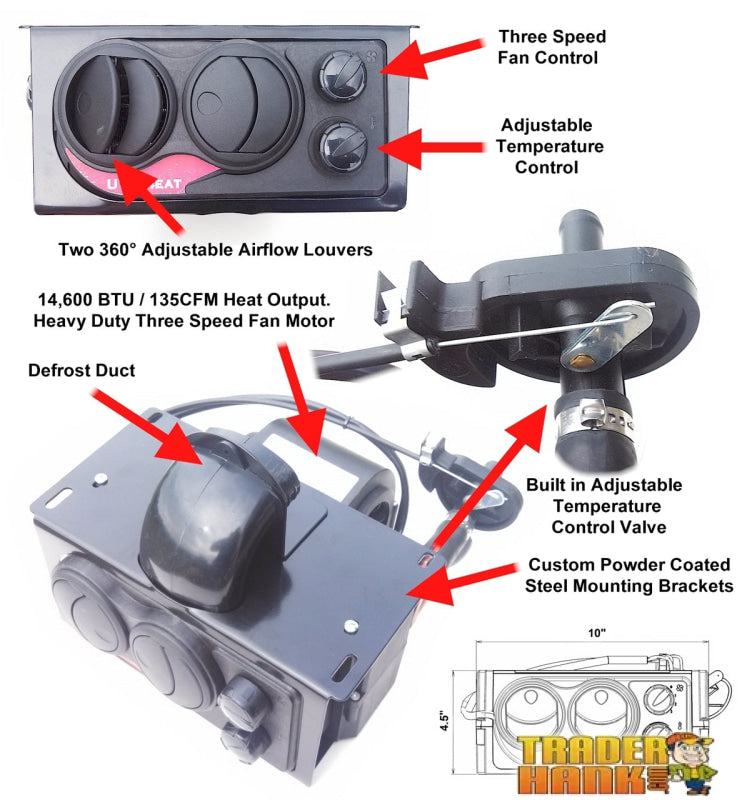

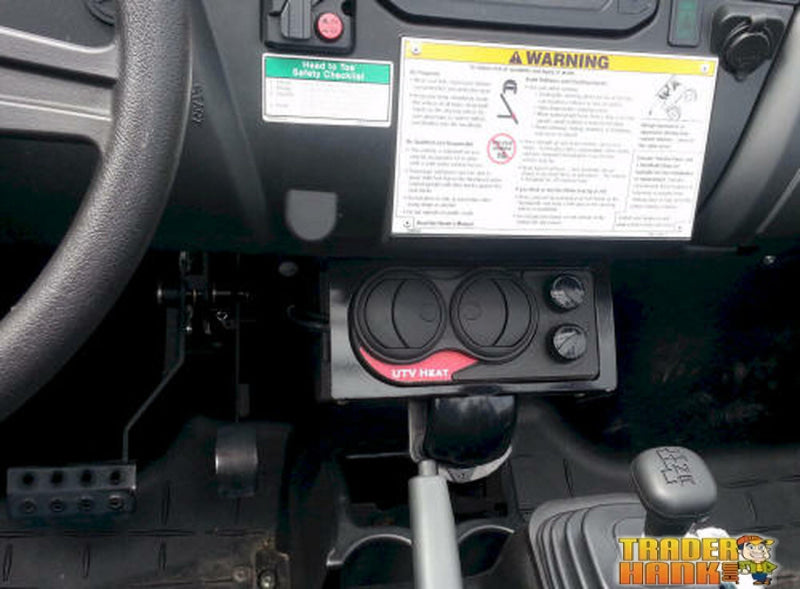

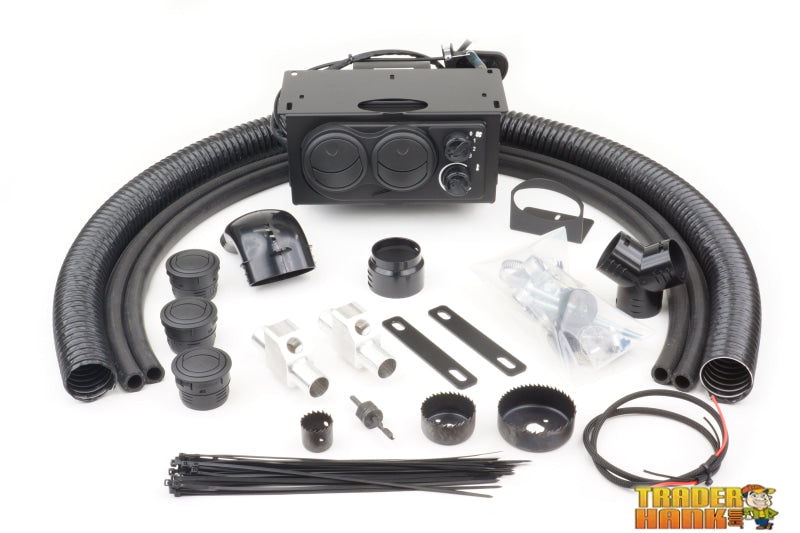

Use your cooling system to heat your cab! From the original designer of the Firestorm UTV Cab Heaters comes our new and improved Ice Crusher Compact UTV Heaters. This Ice Crusher Under Dash Compact Heater kit has two 360 adjustable front louvers to direct the heat were you need it and an optional 3” vent defrost kit is available to keep your windshield clear. The heater features a three speed fan and temperature adjustment is located right on the 14,600 BTU* heater unit. The heater mounts under the center of the dash which leaves plenty of room for your feet. Kits are supplied with our custom CNC made alloy Y connectors which connect directly to the engines cooling system. Comes with templates, mounting brackets, hoses, custom CNC made Y fittings, built in shut off valve, clamps, hardware, wiring, hole saw, instructions, and more. Use our MaxStat option for better performance, faster and more heat from your heater.

*Heater BTU# output is theoretical and is dependent on the coolant temperature of the UTV and the flow rate of the coolant, which varies by UTV and engine RPM. Outside (ambient) temperature the UTV is being operated in also can change heater output. That being said these 14,600 BTU Heater Units are more that capable of heating 99.99% of all UTV's

#British Thermal Unit (BTU or Btu) is a traditional unit of work needed to raise the temperature of one pound of water by one degree Fahrenheit. One four-inch wooden kitchen match consumed completely generates approximately 1 BTU.

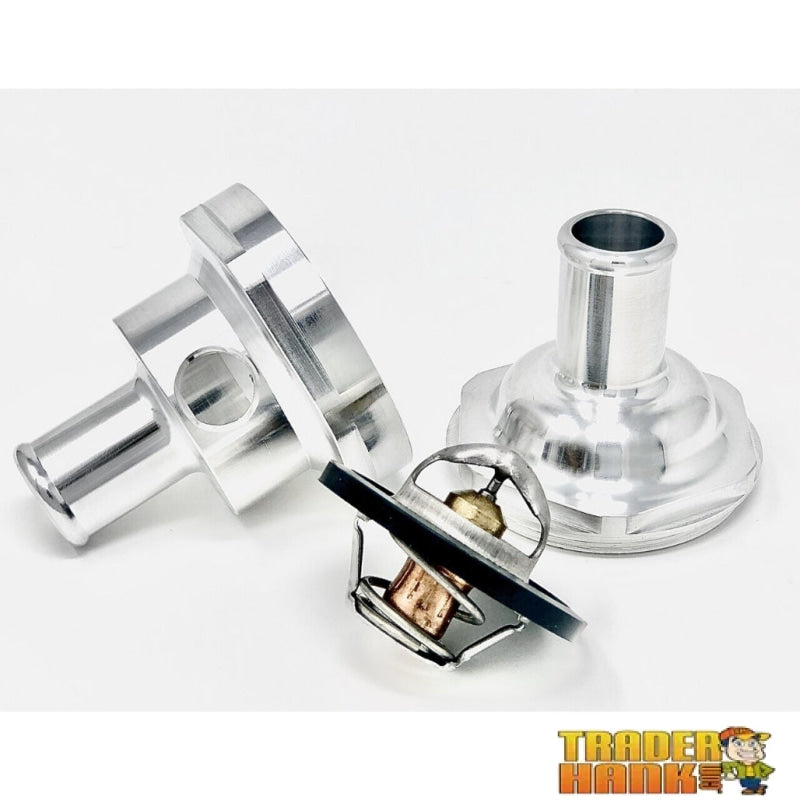

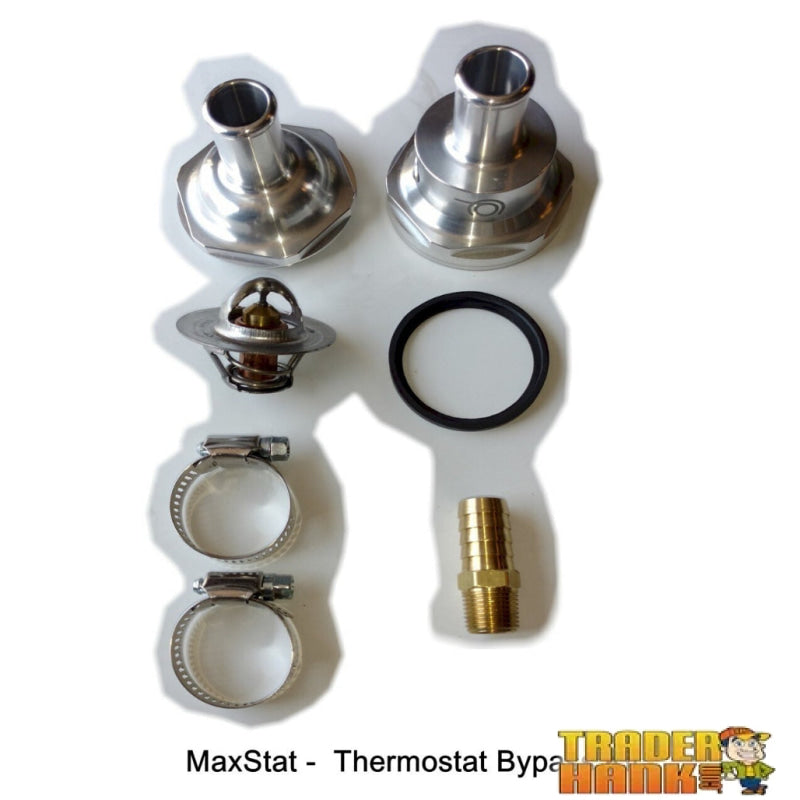

Ice Crusher MaxStat - Inline Coolant Bypass Thermostat for UTV Heaters

The MaxStat directs all engine coolant to your Ice Crusher Cab Heater, this means that the output of your heater will be at its maximum. If there is heat in your cooling system then you will have heat from your Ice Crusher Cab Heater. More heat means a warmer cab and in turn a warmer you!

MaxStat only opens to let coolant flow though the radiator when the cooling system requires it to keep the UTV engine at an optimal temperature.

CNC Machined Aluminum.

5/8 barbed heater hose output.

Ships with a Replaceable 180' Thermostat.

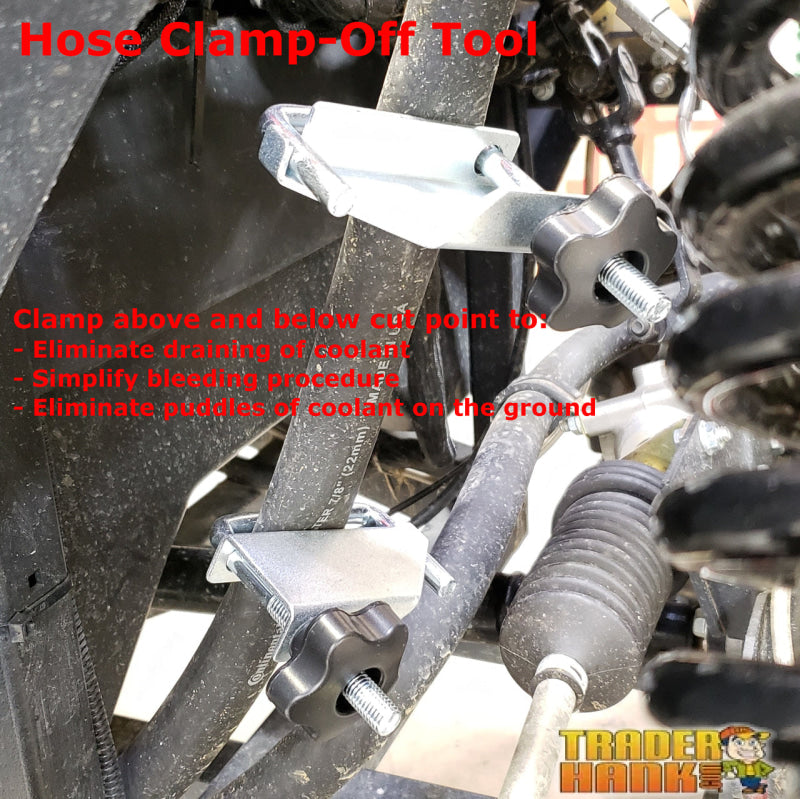

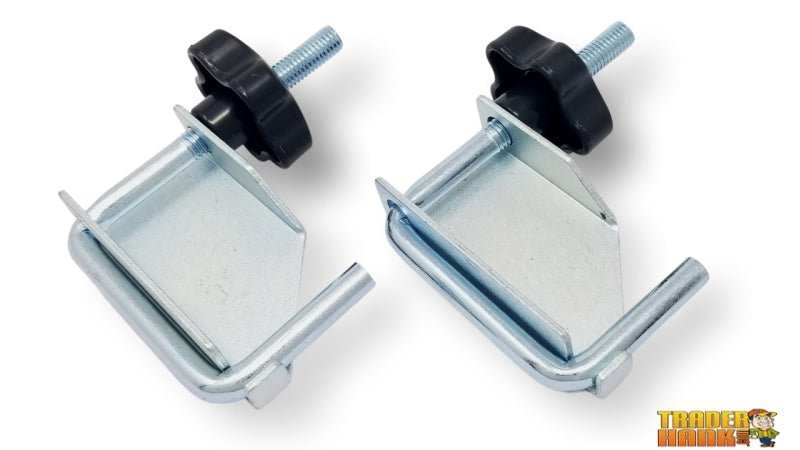

ICE CRUSHER HOSE CLAMP OFF TOOLS

Make your heater install faster and easier with Ice Crusher Hose Clamp Off Tools. These clamp tools will keep coolant from pouring out of your vehicle when tying into the coolant system. They also keep the majority of air from entering the coolant system dramatically reducing the effort required to remove air bubbles later. The clamps will seal-off flexible hoses up to 1 3/4" inch in diameter and will fit all ATV and UTV applications. Kits are sold in pair.

  • Each line clamp is specially designed to stop flow without damaging or compromising the hose, making them a great set of clamps for any professional or home garage!

  • Fits Hose Sizes up 1 3/4'' OD Diameter

  • Designed to work with all ATV & UTV radiator hoses.

  • Speed up install and eliminate coolant loss

  • INCLUDES: 2 Clamps

Fitment

Fitment Details
2004-13 Yamaha Rhino 450 / Rhino 660 / Rhino 700
